Exporting Ddr Configuration Files - Microsemi SmartFusion2 MSS Configuration Manual

Note: If you choose to import register values rather than entering them using the GUI, you must specify all
necessary register values. Refer to the
User's Guide

Exporting DDR Configuration Files

You can also export the current register configuration data into a text file. This file will contain register
values that you imported (if any) as well as those that were computed from GUI parameters you entered
in this dialog.
If you want to undo changes you have made to the DDR register configuration, you can do so with
Restore Default. Note that this deletes all register configuration data and you must either re-import or
reenter this data. The data is reset to the hardware reset values.
Generated Data
Click OK to generate the configuration. Based on your input in the General, Memory Timing and Memory
Initialization tabs, the MDDR Configurator computes values for all DDR configuration registers and
exports these values into your firmware project and simulation files. The exported file syntax is shown in
Figure 2-6.

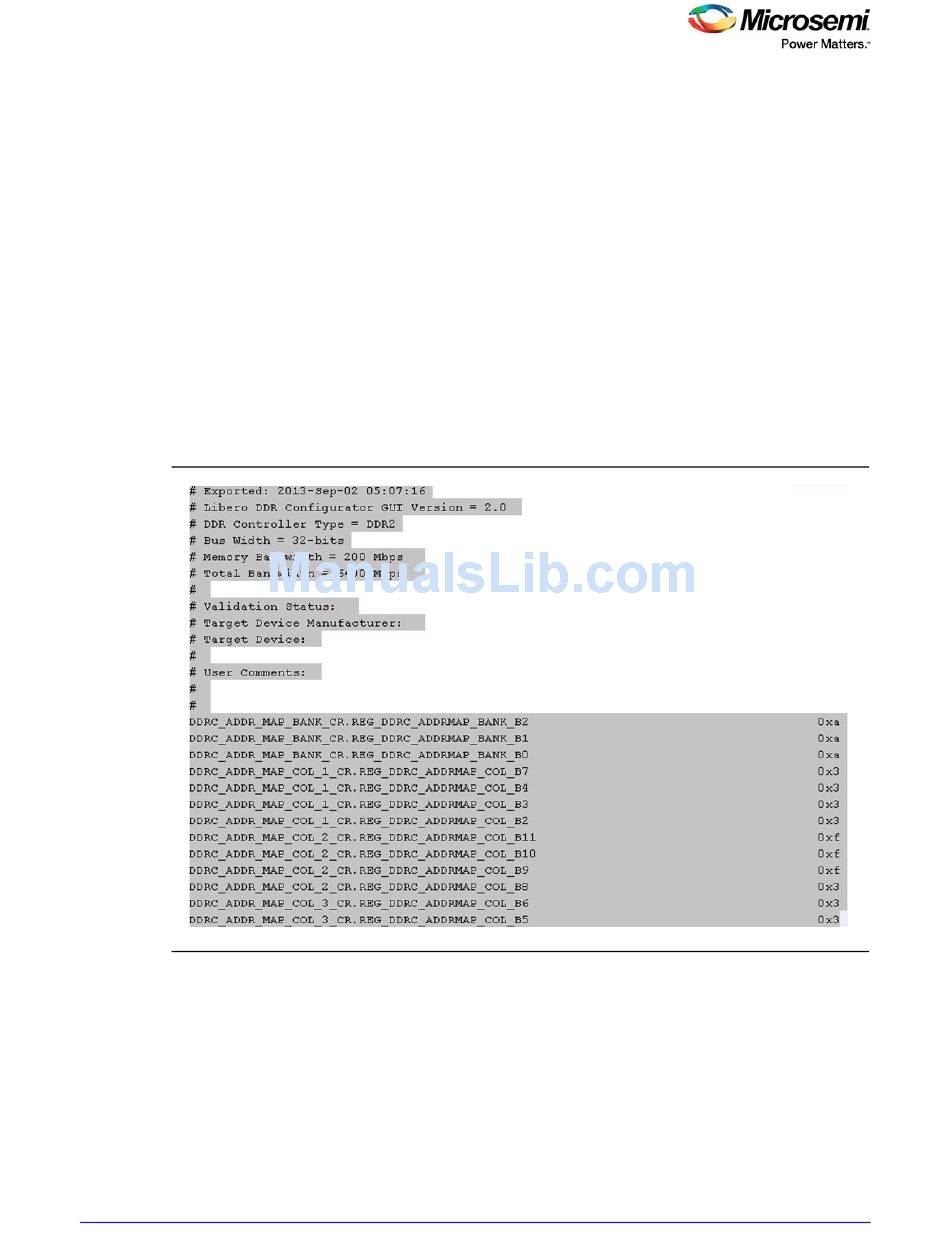

Figure 2-6 • Exported DDR Register Configuration File Syntax
SmartFusion2 SoC FPGA High Speed DDR Interfaces
for details.
11
