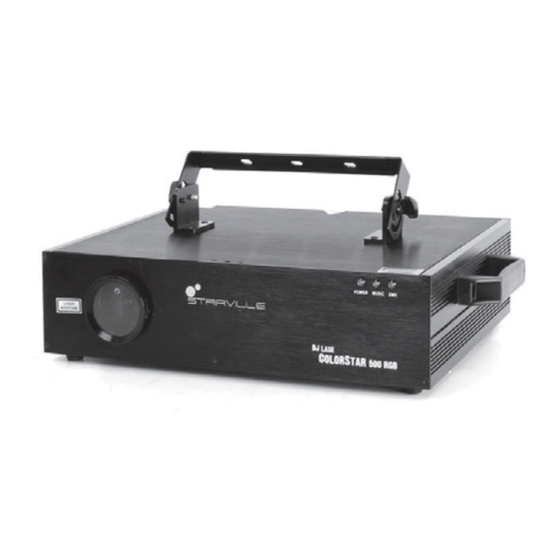

ColorStar 500 RGB
DJ LASE
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ColorStar 500 RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairville ColorStar 500 RGB

Summary of Contents for Stairville ColorStar 500 RGB

  • Page 1 ColorStar 500 RGB DJ LASE Owner‘s Manual...

  • Page 2: Table Of Contents

    Operating Modes ..............13 Operation .................. 14 Maintenance and care ..............22 Troubleshooting ................22 Technical specifications ..............23 Disposal ..................24 Disposal of the packaging material ..........24 Disposal of your old device ............24 DJ LASE ColorStar 500 RGB...

  • Page 3: Safety Instruction And Laser Safety Information

    Thanks a lot for purchasing our Dj Lase ColorStar 500. Please read this user manual carefully and follow the instructions to avoid danger or damage to the unit due to mishandling. Keep this user guide for future reference. If you give the unit to another user, be sure that he also receives this instruction booklet.

  • Page 4: Laser Safety Information

    This information is based on DIN EN 60825-1. This device is a class 3B laser product. It is equipped with a safety key. Always remove the key when the device is not operated by trained personnel. DJ LASE ColorStar 500 RGB...

  • Page 5: Intended Use

    As an operator you are responsible for the safety of all persons present. Familiarize yourself with the laser safety regulations that apply in your country. To ensure safe operation, it is important to pay attention to the following instructions. DANGER Laser radiation –...

  • Page 6: Laser Emission Data

    < 5 mm at aperture Divergence (each beam) < 2 mrad Divergence (total light) < 90 degrees Transverse Beam Mode Cooling TEC & Fan Cooling Scanning DC to 20 kHz, ±25 Degrees X & Y DJ LASE ColorStar 500 RGB...

  • Page 7: Proper Laser Set Up & Usage

    Proper laser set up & usage This fixture has been designed to be hung. It is recommended for safety purposes, that your lighting effects are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor.

  • Page 8: Before Operation

    DANGER – Laser radiation When taking this device into operation you have to follow all instructions given from page 3. Scope of delivery Laser Light Keys (for key switch) Interlock connector Power supply cord User manual DJ LASE ColorStar 500 RGB...

  • Page 9: Power Supply

    Power supply To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. A fixture’s listed current rating is its average current draw under normal conditions.

  • Page 10: Product Overview

    With socket and integrated fuse holder DMX OUTPUT 3-pin female XLR port using for DMX DMX INPUT 3-pin male XLR port, using for DMX Urgent and safe switch Switch off the laser manually if error occurs DJ LASE ColorStar 500 RGB...

  • Page 11: Ilda / Hardware Setting Panel

    NO. Item Function Key switch To keep unauthorised people from operating the device Cooling fan Cooling and never cover this fan outlet LED control Panel Intelligent LED control panel of the system Safety eye Attach the safety cable ILDA / Hardware Sound, Music, ILDA, Patterns Setting Setting ILDA / Hardware Setting Panel...

  • Page 12: Front Panel

    Hanging bracket With 2 knobs on both sides to fasten the unit and a mounting hole to fix a mounting hook. Warning label Laser radiation - Avoid exposure to beam. Class 3B laser product. MUSIC Flashes to the sound of the music detected by the mic. DJ LASE ColorStar 500 RGB...

  • Page 13: Notes On Operation

    NO. Item Function DMX connection indicated LED. Red is DMX connected. Green is preprogram standalone mode. POWER Indicates that the unit is switched on. Warning label Laser aperture. Laser output Laser output aperture. Notes on operation DANGER – Laser radiation When taking this device into operation you have to follow all instructions given from page 3.

  • Page 14: Operation

    Then press UP or DOWN button to select your favourite Stand Alone mode as stated above. Press ENTER to confirm the setting. The laser is working in stand alone. Each time when you turn on your laser, you have this confirmed laser show. DJ LASE ColorStar 500 RGB...
  • Page 15 In the MODE OPTION setting, the stand alone laser show that you are going to choose is flashing. Press UP or DOWN to change stand alone laser show, you will have 4 different stand alone preprogrammed laser show. Their DISPLAY and EFFECT are listed below: DISPLAY STAND ALONE MODE LASER EFFECT Auto laser show with random order...
  • Page 16 In the MODE OPTION setting, the pattern mirror mode that you are going to choose is flashing. Press UP or DOWN to change pattern mirror mode, you will have 4 different pattern mirror modes. Their DISPLAY and OUTPUT are listed below: DJ LASE ColorStar 500 RGB...
  • Page 17 PATTERN MIRROR PATTERN MIRROR DISPLAY DISPLAY OUTPUT OUTPUT Attention: Beside of LED programmed mirror reverse setting, the laser scanned world could be set by ILDA control panel. ILDA Control Mode This unit features a ILDA DB25 port, and it can be controlled by PC. There is auto transform set in the inside of the unit to transform the ILDA and preprogrammed show.
  • Page 18 CHANNEL VALUE DESCRIPTION CH 2 000-255 8 Group GROUP CH 3 000-255 16 Patterns in each group PATTERN 000-007 Original 008-015 016-023 Green CH 4 024-031 Yellow COLOUR 032-039 Blue 040-047 Purple 048-055 Light Blue DJ LASE ColorStar 500 RGB...
  • Page 19 CHANNEL VALUE DESCRIPTION 056-063 White 064-111 Colour Rolling CH 4 112-159 COLOUR Colour Jumping 160-127 Colour Moving 208-255 Strobing Full pattern without clipping CH 5 001-127 0%~99% fixed pattern clipped CLIPPING 128-255 Clipping Speed 000-127 100%-5% fixed pattern zoomed 128-169 Zooming IN CH 6 ZOOMING...
  • Page 20 CH 15 0-255 Fast to Slow MOVE SPEED 000-127 128 different fixed position on Y axis CH 16 X AXIS 128-191 Clockwise moving MOVING 192-255 Anticlockwise moving CH 17 0-255 Fast to Slow MOVE SPEED DJ LASE ColorStar 500 RGB...
  • Page 21 PATTERN LIST www.thomann.de...

  • Page 22: Maintenance And Care

    3) Try to use another DMX controller. 4) Check to see if the DMX cables run near or run alongside to high volt- age cables that may cause damage or interference to DMX interface circuit. DJ LASE ColorStar 500 RGB...

  • Page 23: Technical Specifications

    Technical specifications Mains Input: AC 100 ~ 240 V, 50/60 Hz Fuse: 250V 2A Slow Blow (20 mm Glass) Total Power: 50 W X/Y Axis Beam Angle: ±25° Control Mode: Auto, Sound, DMX, Slave, ILDA Laser Power: 350 mW 650 nm Red CW 50 mW 532 nm Green CW 150 mW 405 nm Blue CW Laser Classification:...

  • Page 24: Disposal

    Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the unit, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste dis- posal facility. DJ LASE ColorStar 500 RGB...
  • Page 25 www.thomann.de...
  • Page 26 DJ LASE ColorStar 500 RGB...
  • Page 27 www.thomann.de...
  • Page 28 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
