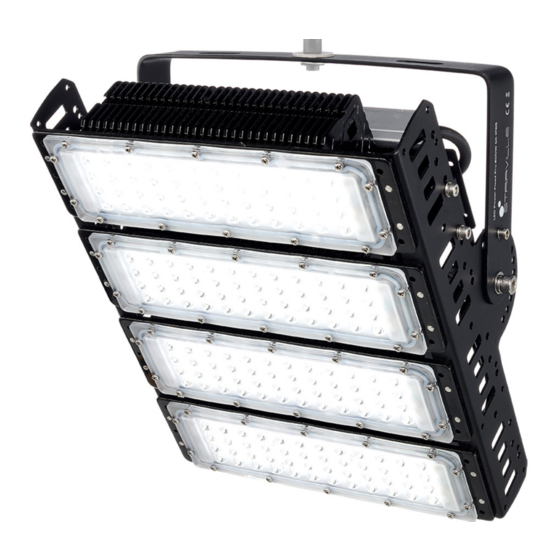

- Page 1 LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 12.05.2022, ID: 446041, 446042 (V2)
-
Page 3: Table Of Contents
1.1 Further information........................... 6 1.2 Symbols and signal words....................... 7 Safety instructions............................. 9 Features............................... 12 Installation and starting up........................ 14 Technical specifications........................17 Cleaning............................... 22 Protecting the environment......................23 LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 4 LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... -
Page 6: Further Information
Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... -
Page 7: Symbols And Signal Words
NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 8 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
-
Page 9: Safety Instructions
Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 10 Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 11 In case a thunderstorm is coming up or you're not going to use the device for a longer period of time, disconnect it from the power grid to reduce the risk of electric shock and fire. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
-
Page 12: Features
That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 13 UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due time. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
-
Page 14: Installation And Starting Up
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 15 Use the openings of the bracket provided for mounting. Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 16 Please note that this device must not be connected to a dimmer. Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
-
Page 17: Technical Specifications
Light source 96 × Cree 3030, each 1 W Light source properties Colour temperature 6000 K Colour rendering index 73.6 CRI Ra Optical properties Beam angle 60° × 60° LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 18 Dimensions (W × H × D) 314 mm × 176 mm × 123 mm (without bracket) Weight 3.2 kg Ambient conditions Temperature range –30 °C … +50 °C Relative humidity 20 %…80 % (non-condensing) LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 19 LED Power-Flood Pro 200 W 6K, item no. 446042 283 mm 123 mm 314 mm 227 mm Light source 192 × Cree 3030, each 1 W Light source properties Colour temperature 6000 K LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 20 Dimensions (W × H × D) 314 mm × 352 mm × 123 mm (without bracket) Weight 5.2 kg Ambient conditions Temperature range –30 °C … +50 °C Relative humidity 20 %…80 % (non-condensing) LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 21 Further information Item no. 446041 Item no. 446042 Outdoor capable LED type Unicoloured Unicoloured Base housing Fanless Remote control Not possible Not possible Wireless DMX Housing colour Black Black LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
-
Page 22: Cleaning
Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... -
Page 23: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight... - Page 24 Notes LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 25 Notes LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 26 Notes LED Power-Flood Pro 100 W 6K, 200 W 6K LED Floodlight...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
