Summary of Contents for Stairville MATRIXX FX-330 DMX

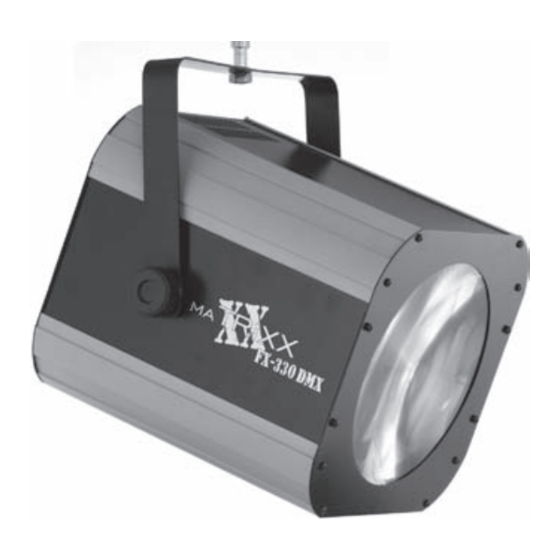

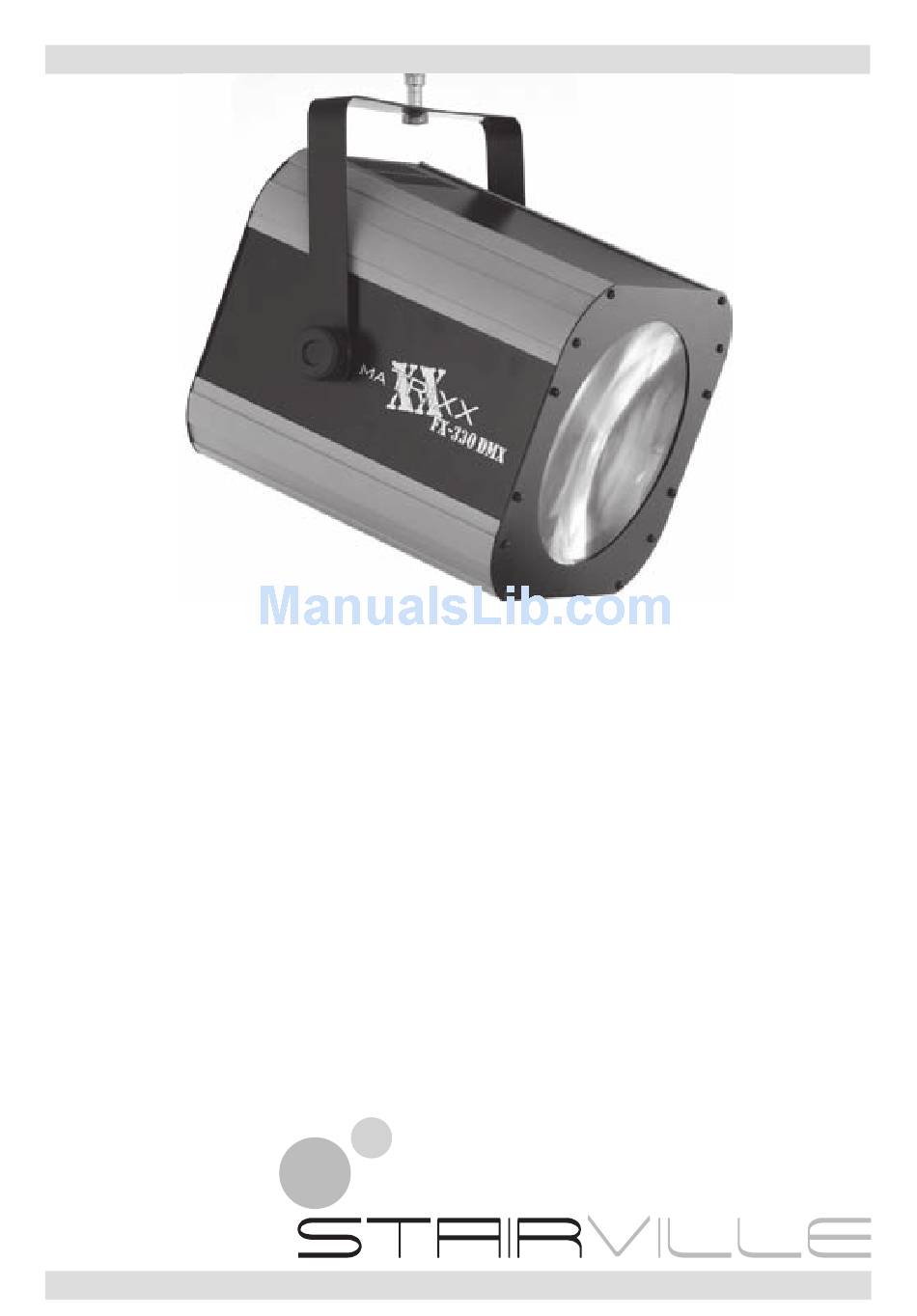

- Page 1 MATRIXX FX-330 DMX Owner‘s Manual LED EFFECT...
-
Page 2: Table Of Contents
Congratulations on your purchase of this LED Effect Light. To get the most from your equipment you must read all of this manual before using it first time. Table of Contents 1. Safety Instruction ................3 2. Technical Specification ..............4 3. -
Page 3: Safety Instruction
1. Safety Instruction You have to carefully read the instruction, which includes important information about the installation, operation and maintenance. • Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that he also receives this instruction booklet thus giving them the necessary information about the use and general warnings regarding the unit. -
Page 4: Technical Specification
2. Technical Specification • Power supply Input Voltage: AC 100-240V 50-60HZ Power consumption: • LED Total 156 pcs, (48 x red, 36 x green, 36 x blue, 36 x white) • 3 Channels Channel 1 = Pattern/Macro Channel 2 = Pattern Strobe/Macro Speed Channel 3 = Dimmer • Dimension 288 x 260 x 244 mm • Weight... -
Page 5: How To Control The Fixture
3. How To Control The Fixture There are three ways to operate the unit: A. In Master/Slave operation B. As an universal DMX controller C. Via Easy controller (Pocket master I) A. Master/Slave operation The fixture will allow you to link the other fixtures together and operate without a controller. - Page 6 DMX address setting by DIP switches 1. Select the channels of DMX controller 2. DIP switches DIP switches #1 #2 #3 #4 #5 #6 Value 16 32 128 256 2-light show • Examples: Channel DIP switches setting Channel 01: DIP/on: #1 (=1) Channel 04: DIP/on: #3 (=4) Channel 07: DIP/on: #1, #2, #3 (=7) Channel 10: DIP/on: #2, #4 (=10) C. Easy controller (POCKET-MASTER I)
-
Page 7: Dmx 512 Configuration
4. DMX 512 Configuration... -
Page 8: Dmx512 Connection
5. DMX512 Connection The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. A DMX512 system requires a controller, lighting equipment and XLR cable. These are connected together in a “daisy chain” with the terminator at the end. -
Page 9: Troubleshooting
6. Troubleshooting Following we’re listing a few common problems that may occur during operation. Here you also find some suggestions for easy troubleshooting: A. The unit does not work, no light 1. Let a technician check the mains power supply and mains fuse. 2. Let a technician check the mains outlet for proper functioning. B. Not responding to DMX controller 1. -
Page 10: Disposal
8. Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. • Have the product disposed of by a professional disposal company of by your communal disposal facility. • Observe the currently applicable regulations. In case of doubt contact your disposal facility. • Dispose of packaging materials in an environmentally responsible manner. - Page 12 © 2010 Musikhaus Thomann Treppendorf 30 • 96138 Burgebrach Germany • www.thomann.de...
