  • Page 1 LED BAR 252 RGB Owner‘s Manual LED BAR RGB...

  • Page 2: Package Information

    • For adult use only. Electric devices must be installed out of the reach of children. • Never leave the unit running unattended. 2. Package information • STAIRVILLE LED BAR RGB LED BarLight: • User manual: - 2 -...

  • Page 3: Product Introduction

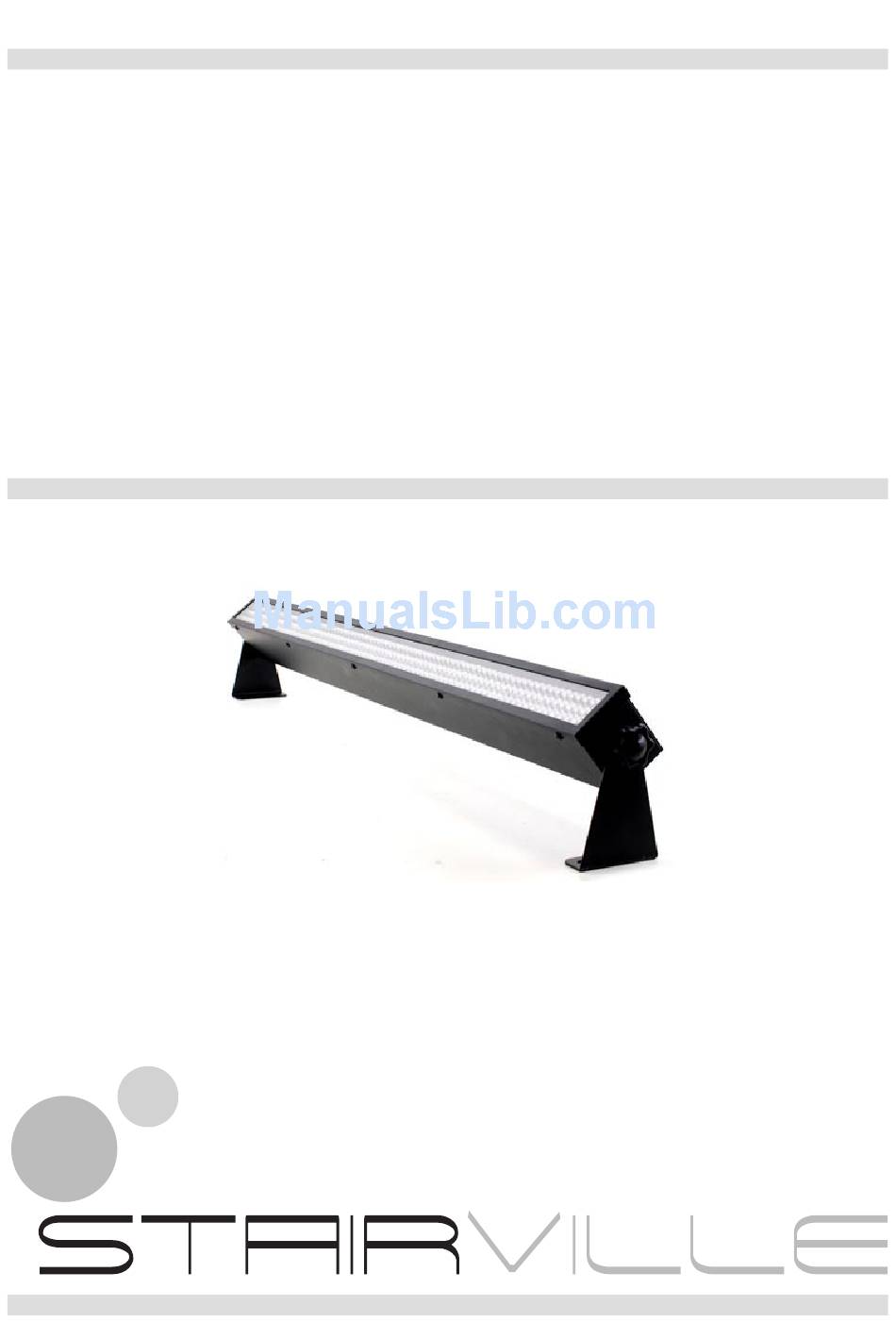

    4. Operation Instruction Product introduction STAIRVILLE LED BAR RGB is a LED Wall washer using 84 RGB LED. The functions available are DMX, Audio and Auto, and Master / Slave linkable. It can make the color change, dimming, Strobe, Fade effect. It’s an easy to operate, inexpensive, and easy to install LED Wash, especially suitable for the wash of Home Party and Entertainment place.

  • Page 4: Installation

    Installation Methods: This fixture can be set up on the flat surface or hanged on the wall or under a ceiling. If you want to hang it, please be sure that you will fix the screw to the wall or ceiling very closely to avoid any problem. a) Flat surface installation b) Hanging installation 5.
  • Page 5 b) DMX connector pin: Male & Female DMX connector pin: Pin1 = Gnd Pin2 = DMX- Pin3 = DMX+ c) DMX Linking method: d) DMX function chart ch10 ch11 0~40 Black out 41~80 3 Segment Shutter Red1 Green1 Blue1 Red2 Green2 Blue2 Red3 Green3 Blue3 Mode 81~120 1 Segment...

  • Page 6: Master Mode

    Master Mode (I) Auto mode working: hold the button “MENU” until the mode was changed to the Auto mode, loose you finger, then the working mode will be changed to the Auto mode automatically. Press “MENU” button to choose the different code. Please see the picture as below, then press “UP”...

  • Page 7: Troubleshooting

    code specification: Prg XX(01~08): choose the internal program. There are 8pcs internal programs. Spd XX(01~10): choose the speed of the internal program. There are 10 speed steps for your choice. 01 is the fastest speed and 10 is the slowest speed. Stb XX(01~10): choose the Strobe steps of the internal program.

  • Page 8: Technical Specification

    7. Technical Specification 1. Voltage: Ac120V 60hZ/240V 50hZ 2. Power: 3. Fuse: 1A/250V 4. Light Source: 10 RGB LED each 84pcs 5. Function: DMX, Auto, Sound, M/S Linking 6. DMX channel: 11 ch 7. Size (LxWxh): 1100 x 114 x 161 mm 8.
