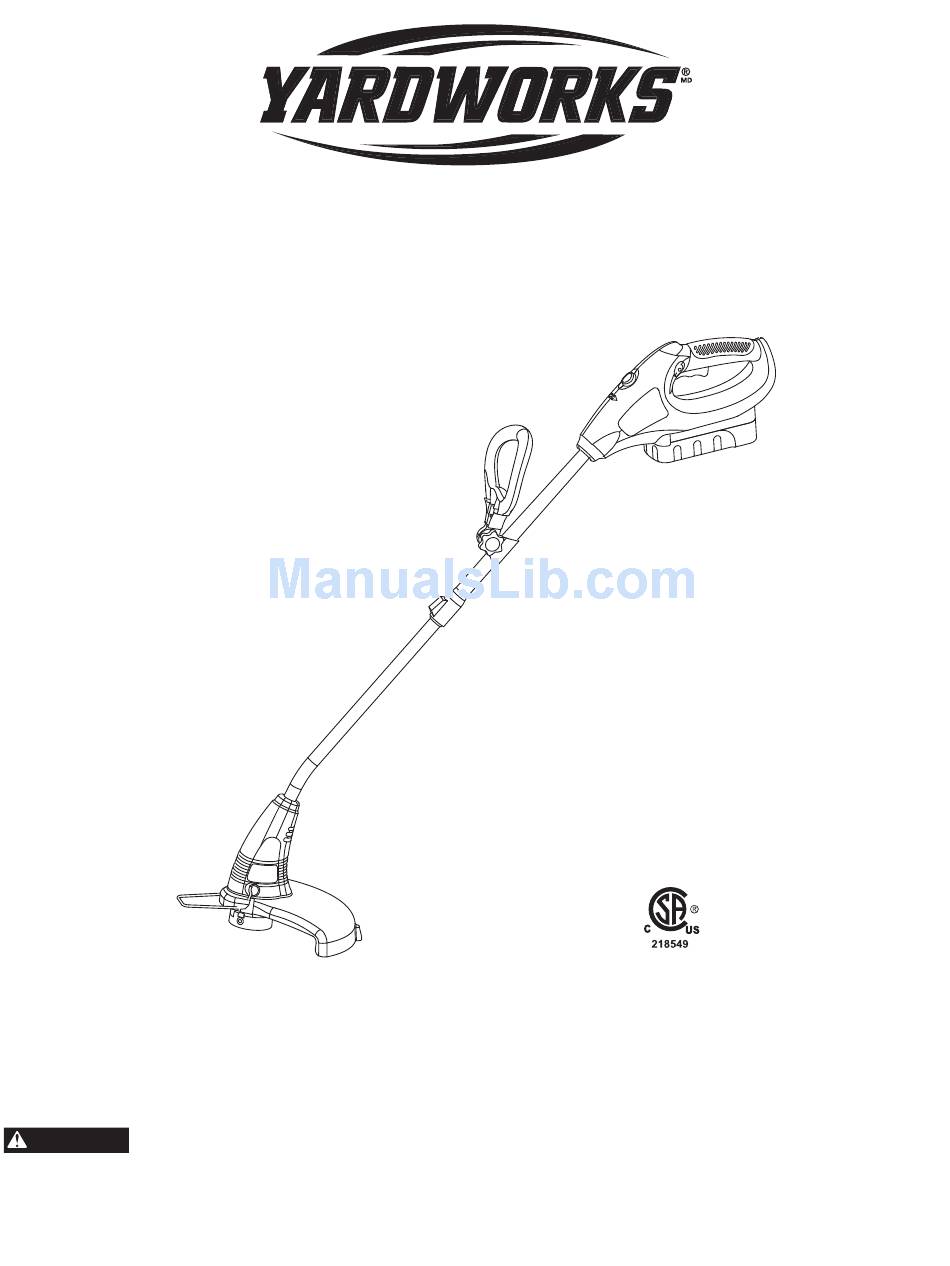

- Page 1 CORDLESS GRASS TRIMMER/EDGER 60-2241-0 Owner's Manual TOLL FREE HELPLINE:1-866-523-5218 WARNING Read all safety rules and operating instructions carefully before using this product.
-
Page 2: Table Of Contents
Contents Warning Statements WARNING STATEMENTS & SAFETY SYMBOLS 2 The purpose of the warning statements and safety symbols is to indicate possible danger. Read these statements CONTENTS OF THE PACKAGE carefully in order to understand and practice proper GENERAL INFORMATION accident prevention. -
Page 3: Contents Of The Package
Contents of the package Purchasing a battery-powered tool helps to reduce WARNING the pollution level in the environment. Please verify the contents of the package against In order to reduce the risk of fire, electric shock, and Fig. A. Examine all of the parts carefully before personal injury: using the cordless grass trimmer or the battery •... -
Page 4: Specific Safety Rules
• Remove adjusting keys or wrenches before turning the • When battery pack is not in use, keep it away from tool on. A wrench or key that is left attached to a items such as paper clips, coins, keys, nails, rotating part of the tool may result in personal injury. - Page 5 Specific Safety Rules For Grass Trimmers For Battery Pack and Charger For Grass Trimmers DANGER • When lengthening a new cutting line, be careful of the In order to avoid serious injury, the risk of fire or explo- line cutter on the guard. It is sharp. sion, and the danger of electric shock or electrocution: •...
-
Page 6: Electrical Safety Rules
Electrical Safety Rules for the Battery Pack and Charger Extension Cords (Fig. C) WARNING Do not use an extension cord for the charger unless it is READ AND UNDERSTAND ALL INSTRUCTIONS. absolutely necessary. If an extension cord is required, verify Failure to follow the safety rules listed below may result in that the cord is in good condition. -
Page 7: Grass Trimmer
Output amperage 1.7 A (89 to 111.8 cm) Rapid charging Weight 7 lb 6 oz (3.41 kg) with battery Overheat protection Use YARDWORKS 60-2143-4 replacement battery. Battery type Nickel-cadmium rechargeable Use YARDWORKS 60-2267-0 replacement spool. Charging time 1 hour Run Time... -
Page 8: Battery Pack
• Always verify that the battery pack is removed and that the Use YARDWORKS 60-2143-4 replacement switch is in the OFF position before replacing the spools or battery. adjusting the line. -
Page 9: Auxiliary Handle
Cutting Line (Figs. H) A spool of monofilament cutting line is pre-installed on the grass trimmer. When the cutting line needs to be replaced, insert a new spool. USE YARDWORKS 60-2267-0 REPLACEMENT SPOOL WARNING WARNING To avoid personal injury: Fig.H... -
Page 10: Operation
Operation On–Off Switch (Fig. I) WARNING CAUTION To avoid injury: Always allow at least 5 seconds for the cutting line spool • Do not push the Lock-OFF button down or squeeze the to stop rotating after releasing the trigger switch. trigger while the grass trimmer is upside-down. -
Page 11: Lengthening The Line
Lengthening the Line(Fig.L) The cutting line gets worn down and becomes shorter as the grass trimmer is used. This trimmer is equipped with Automatic Line Advancement, which automatically Fig. L feeds additional line in order to maintain the correct AUTO LINE SPOOL ADVANCEMENT length as it wears down. -
Page 12: Maintenance
. Always wind the line in the same direction as the arrow on inspecting, or performing any maintenance on the the spool. grass trimmer. Use YARDWORKS 60-2267-0 replacement spool Battery Pack . Store the battery pack fully charged. . Recharge the battery pack whenever there is a lack of power. -
Page 13: Charging Procedure
Charging Procedure (Fig.M) With regular use, the battery pack will become fully charged in 90 MINUTES or less. Allow the battery to fully discharge Fig. before recharging. It is recommended that the battery be charged every 3 months when the trimmer is not in use. 1. - Page 14 Environmentally Safe Battery Disposal The toxic and corrosive materials listed below are contained in the batteries that are used in this WARNING grass trimmer battery pack: If the battery pack cracks or breaks, do not Cadmium, a toxic material. recharge it and do not use it, even if there are no leaks.
-
Page 15: Warranty
WARRANTY For TWO YEARS from the date of purchase within Canada, YARDWORKS CANADA will, at its option, repair or replace for the original purchaser, free or charge, any part or parts found to be defective in material or workmanship. This warranty does not cover: 1. -
Page 16: Parts List
Parts list 1 2 3 14 15 16 17 18 19 20 22 Parts Description. Model Num. Num. 3120246 Battery 3220105 Screw ST4X13-F 3410446 Handle 3411046 Switch trigger 3340346 Spring 3630111 Switch 3340546 Spring 3411146 Lock-Off button 3640146 Inner wire 3220101 Screw ST4x16-F 3410801...
