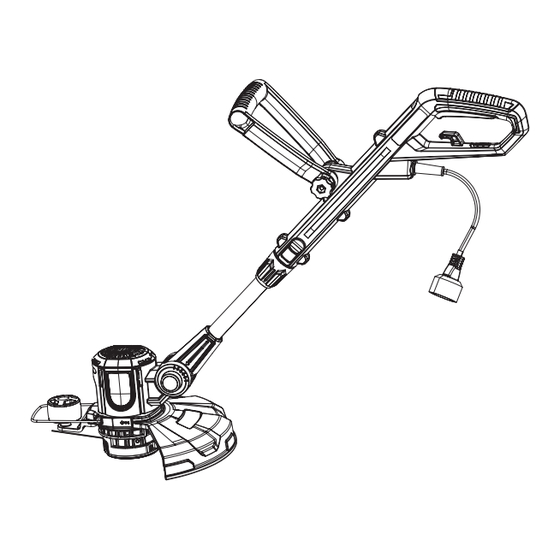

Corded Grass Trimmer 267-2904 OPERATOR’S MANUAL TOLL-FREE HELPLINE: 1-888-497-7273 Read this operator manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL - 01 -...
TABLE OF CONTENTS SAFETY SYMBOLS ......................02 HEALTH AND SAFETY .......................04 IMPORTANT SAFETY INSTRUCTIONS ................05 KNOW YOUR TOOL ......................08 ASSEMBLY AND USE ......................10 CARE AND CLEANING ......................13 TROUBLE SHOOTING .......................14 WARRANTY ........................16 SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible danger. The safety symbols and the explanations with them deserve your careful attention and understanding.
Page 3
SYMBOL DESCRIPTION SYMBOL DESCRIPTION Read and refer to these operating Wear respiratory protection instructions Wear safety shoes Wear eye protection Do not expose the product to rain or Wear hearing protection wet conditions (moisture). Disconnect from the mains plug if the cord is damaged or entangled.
HEALTH AND SAFETY This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety. Children should be supervised to ensure that they do not play with the product.
trolled with the switch is dangerous and must be repaired. 3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
Page 6
9. Never fit metal cutting elements. 10. Never use replacement parts or accessories not provided or recommended by the manufacturer. 11. The product should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA. 12.
Page 7
WARNING: This product produces an electromagnetic field during operation! This field may under some cir- cumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! - 07 -...
KNOW YOUR TOOL 1. Main handle 2. Front handle 3. Pole 4. Support wheel 5. Guard 6. Spool 7. On/off switch 8. Cable retainer 9. Wing nut 10. Adjustment button 11. Locking sleeve 12. Angle lock button - 08 -...
Page 9
TECHNICAL DATA 2672904 Model EGT020058 Input voltage rating 120V~,60Hz Input power No load speed 11000RPM Dual line 0.065 inch , length 19. 6 FT Cutting width 12 inch Angle adjustment 0°~90° Weight 4 bs WARNING: declared total! Adopt proper measures to protect yourself against vibration expo- sures! Take the whole work process including times the product is running under no Proper measures include among others regular maintenance and care of the prod- uct and cutting attachments, keeping hands warm, periodical breaks and proper...
PACKING LIST Part Name Quantity Grass Trimmer Spare Spool Support Wheel Plant Protector Guard Front Handle ASSEMBLY AND USE 1. ASSEMBLY a. Safety guard and support wheel assembly 1) Remove four mounting screws from motor hous- ing. NOTE: They are pre-mounted on the motor hous- ing by factory to help end-user find them quickly.
Page 11
2. OPERATION e. Edging 1) Adjust the vertical angle of trimmer head to 0 a. General operation degree by pressing the tilt adjustment button. 1) Check the product,its power cord and plug as 2) Adjust the trimmer head to 90 degrees for edging well as accessories for damage before each use.
Page 12
Trimming could damage sensitive bark, and damage fence 1) Ensure the knife protector label is removed be- posts. fore use. Ensure you wear gloves when remov- 4) Fold the plant protector out to avoid bringing the ing this label. cutting device into contact with hard objects such 2) Adjust the trimmer head angle to a proper posi- as walls and kerbstones.
CARE AND CLEANING 1. MAINTENANCE NOTE: This product does not contain any parts a. Store the product and its accessories in a dry, that can be repaired by the consumer. Contact an frost-free place. authorised service centre or a similarly qualified b.
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: Problem Possible Cause Remidies ● Not connected to power supply ● Power cord or plug is defective ● Other electrical defect to the prod- Product does ●...
SKU# 267-2904 YARDWORKS WARRANTY POLICY ● Two (2) year limited warranty on all Yardworks C o r d e d power tools from date of purchase when used for personal, household, or family use. ● Warranty voided if used for commercial or industrial purposes or any other improper use as determined by Yardworks.
