Yardworks 60-2293-6 Instruction Manual

Grass trimmer & edger
Hide thumbs

Advertisement

Table of Contents

Grass Trimmer & Edger
model number 60-2293-6 | contact us: 1.866.523.5218
IMPORTANT:
Instruction
Read and follow all safety rules and operating
Manual
instructions before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60-2293-6 and is the answer not in the manual?

Questions and answers

Elsa Moscato
July 9, 2025

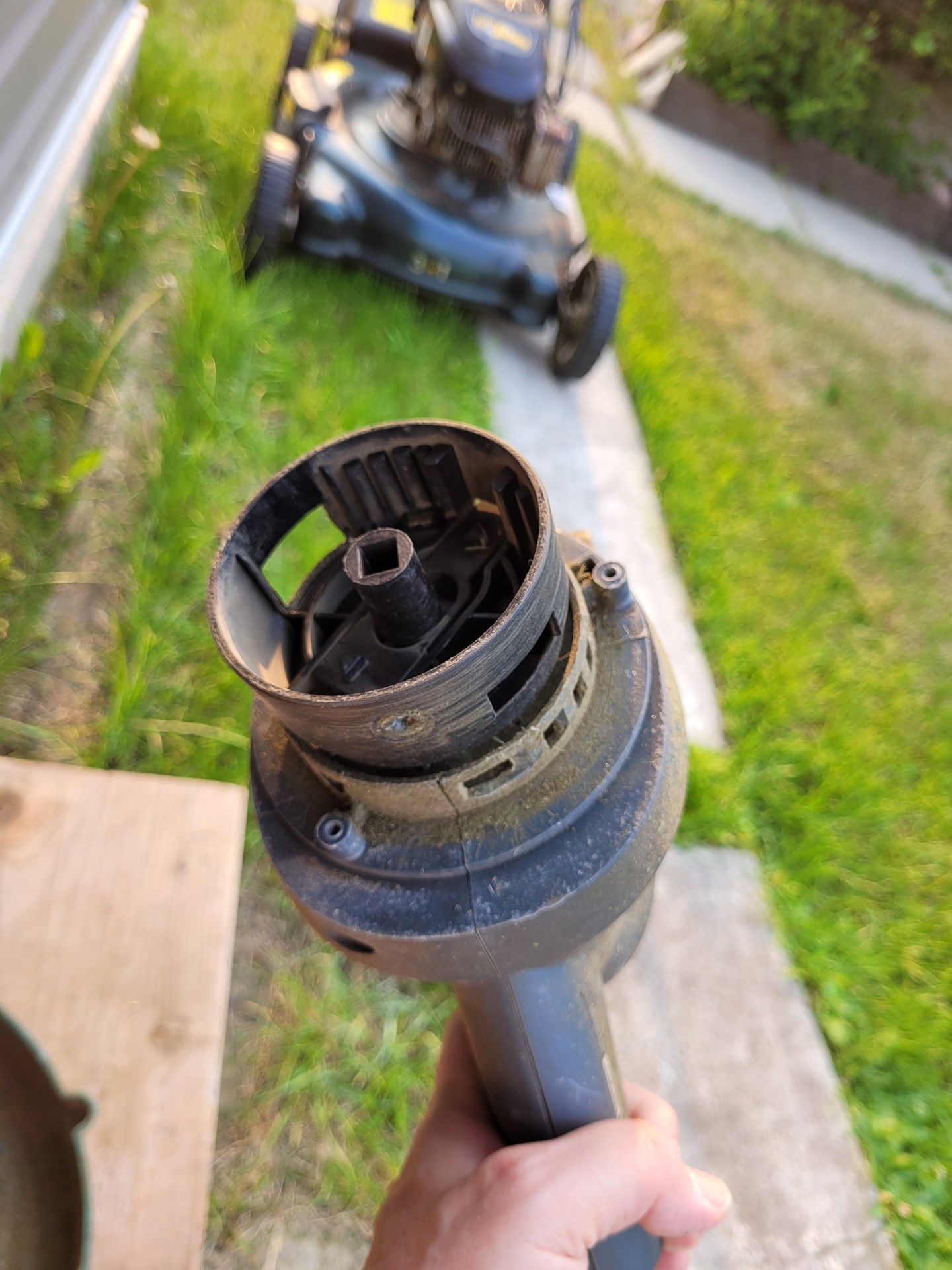

How do I remove the head? There are some weed stuck and I need to remove the black head to get at it.

User image 686ea697999a0
0

Subscribe to Our Youtube Channel

Related Manuals for Yardworks 60-2293-6

Summary of Contents for Yardworks 60-2293-6

  • Page 1 Grass Trimmer & Edger model number 60-2293-6 | contact us: 1.866.523.5218 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.

  • Page 2: Troubleshooting

    60-2293-6 | contact us: 1.866.523.5218 SPeCiFiCAtionS KnoW YoUR MoWeR SYMBoLS GeneRAL SAFetY RULeS exPLoded VieW PARtS LiSt ASSeMBLY oPeRAtion MAintenAnCe tRoUBLeShootinG WARRAntY Motor: 20 V Speed: 8000 RPM (no load) Battery: 18 V, 2.0 Ah lithium-ion Battery run-time: 20 minutes (approximately) Battery warranty：...

  • Page 3: Know Your Grass Trimmer

    60-2293-6 | contact us: 1.866.523.5218 1. Lock-out button 2. Switch trigger 3. Upper handle 4. Battery 5. Auxiliary handle 6. Auxiliary handle adjustment knob 7. Split and telescoping shaft 8. Motor housing 9. Guide 10. Guard 11. Single-line cutting spool 12.
  • Page 4 60-2293-6 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
  • Page 5 60-2293-6 | contact us: 1.866.523.5218 • this grass trimmer is designed for cutting grass and similar soft vegetation and for trimming grass edges in private and hobby garden areas which are not accessible with a lawnmower. • the device is not designed for use in public gardens, parks, sports centres or at roadsides or in agriculture and forestry.
  • Page 6 60-2293-6 | contact us: 1.866.523.5218 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER • do not expose to moisture. • Use only on AC power supply voltage shown on the product rating label. • Avoid operating your trimmer in wet grass, where feasible.
  • Page 7 60-2293-6 | contact us: 1.866.523.5218...
  • Page 8 60-2293-6 | contact us: 1.866.523.5218 item description Part no. Upper handle assembly 311051414 Fastening clamp 34101185-4 Auxiliary handle 311041414 Lower motor shaft assembly 311061414 Guard 311011414 Guide 33301720 Spool 3411646A Spool Cover 3411546A-2...

  • Page 9: To Remove The Battery

    60-2293-6 | contact us: 1.866.523.5218 BATTERY TO REMOVE THE BATTERY 1. Press in and hold the latch buttons (1) on both sides of the battery pack. 2. Grasp the trigger handle (2) firmly. Pull the battery pack out of the handle.
  • Page 10 60-2293-6 | contact us: 1.866.523.5218 GUARD Remove the battery pack. invert the grass trimmer to access the trimmer head. Using a cross-head screwdriver, remove the pre-installed screw (1) from the trimmer head. Place the guard (2) onto the trimmer head and turn the guard 45° following the track on the head.
  • Page 11 60-2293-6 | contact us: 1.866.523.5218 ASSEMBLE THE TWO HALVES OF THE SHAFT insert the lower shaft (3) into upper shaft (2). then turn the upper shaft (2) until lock button clicks into place. turn the lower shaft (3) collar until locked into place.

  • Page 12: Auxiliary Handle

    60-2293-6 | contact us: 1.866.523.5218 AUxILIARY HANDLE • Position auxiliary handle (1)onto the upper portion of the trimmer shaft by sliding over shaft. • once auxiliary handle is in the desired in use position tighten the knob (2) until locked into position.
  • Page 13 60-2293-6 | contact us: 1.866.523.5218 TO REMOVE THE SPOOL disconnect trimmer from the power supply. turn grass trimmer over to access the spool. Remove spool cover by pressing on two tabs parallel to each other on the side of the cover (2).
  • Page 14 60-2293-6 | contact us: 1.866.523.5218 TO TURN ON/OFF Press the safety lock-out button (2) and squeeze the trigger switch (1) to start. Release the trigger switch (1) to stop.
  • Page 15 60-2293-6 | contact us: 1.866.523.5218 SPLIT AND TELESCOPING TUBE the shaft can be extended or shortened for ease of use. Unscrew telescoping shaft coupler and slide to desired position. tighten telescoping shaft coupler. EDGING FUNCTION this trimmer is equipped with an edging feature for use on the sidewalks or walkways, patios and/or driveways to clear over-grown grass from manicured surfaces.
  • Page 16 60-2293-6 | contact us: 1.866.523.5218 ADjUST THE CUTTING PATH the cutting path can be adjust from 10–12’ (25.5–30.5 cm). Cross-head screwdriver (not supplied) is required. Loosen the screw and turn the cutter 180° then tighten the screw. 10’’...

  • Page 17: Lengthening The Line

    60-2293-6 | contact us: 1.866.523.5218 LENGTHENING THE LINE While the grass trimmer is operating, the cutting line gets worn down and becomes shorter. this trimmer is equipped with Automatic Line Advancement, which automatically feeds additional line to the correct length as it wears down. if the line does not automatically advance, the trimmer line may be tangled or empty.

  • Page 18: Charging Procedure

    60-2293-6 | contact us: 1.866.523.5218 CHECKING THE CHARGE if the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. CHARGING PROCEDURE Plug the charger into an AC power outlet.

  • Page 19: Checking Battery Capacity

    60-2293-6 | contact us: 1.866.523.5218 CHECKING BATTERY CAPACITY • Press the battery capacity indicator (BCi) button. the lights will illuminate according to the battery’s current power level. See chart below: LIGHT METER BCI BUTTON BATTERY METER Lights Capacity 3 Green Lights The battery is at 80 –100% capacity...

  • Page 20: Charger Maintenance

    60-2293-6 | contact us: 1.866.523.5218 CHARGER MAINTENANCE • Keep the charger clean and clear of debris. do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth. do not use solvents, water, or place in wet conditions.
  • Page 21 60-2293-6 | contact us: 1.866.523.5218 CLEANING Wipe the outside of the grass trimmer with a dry, soft cloth. do not hose down or wash with water. Scrape the guard and spool area to remove dried clippings and mud.
  • Page 22 60-2293-6 | contact us: 1.866.523.5218 if your device is not operating properly, follow the instructions below. if this does not solve the problem, please contact your local repair agent. TOOL RUNS SLOWLY • Check that the spool housing can rotate freely. Carefully clean it if necessary.
  • Page 23 Yardworks CANADA will not be liable for incidental or consequential loss or damage.
