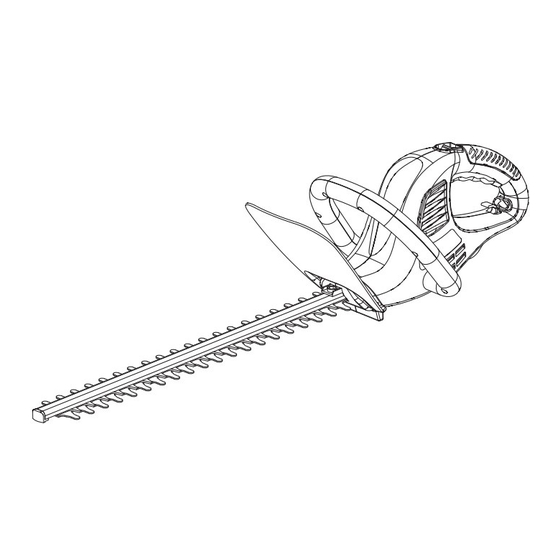

ELECTRIC HEDGE TRIMMER
60-3014-6
Owner's Manual
TOLL-FREE HELPLINE: 1 866 523-5218
IMPORTANT:
Read all safety rules and instructions carefully before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60-3014-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yardworks 60-3014-6

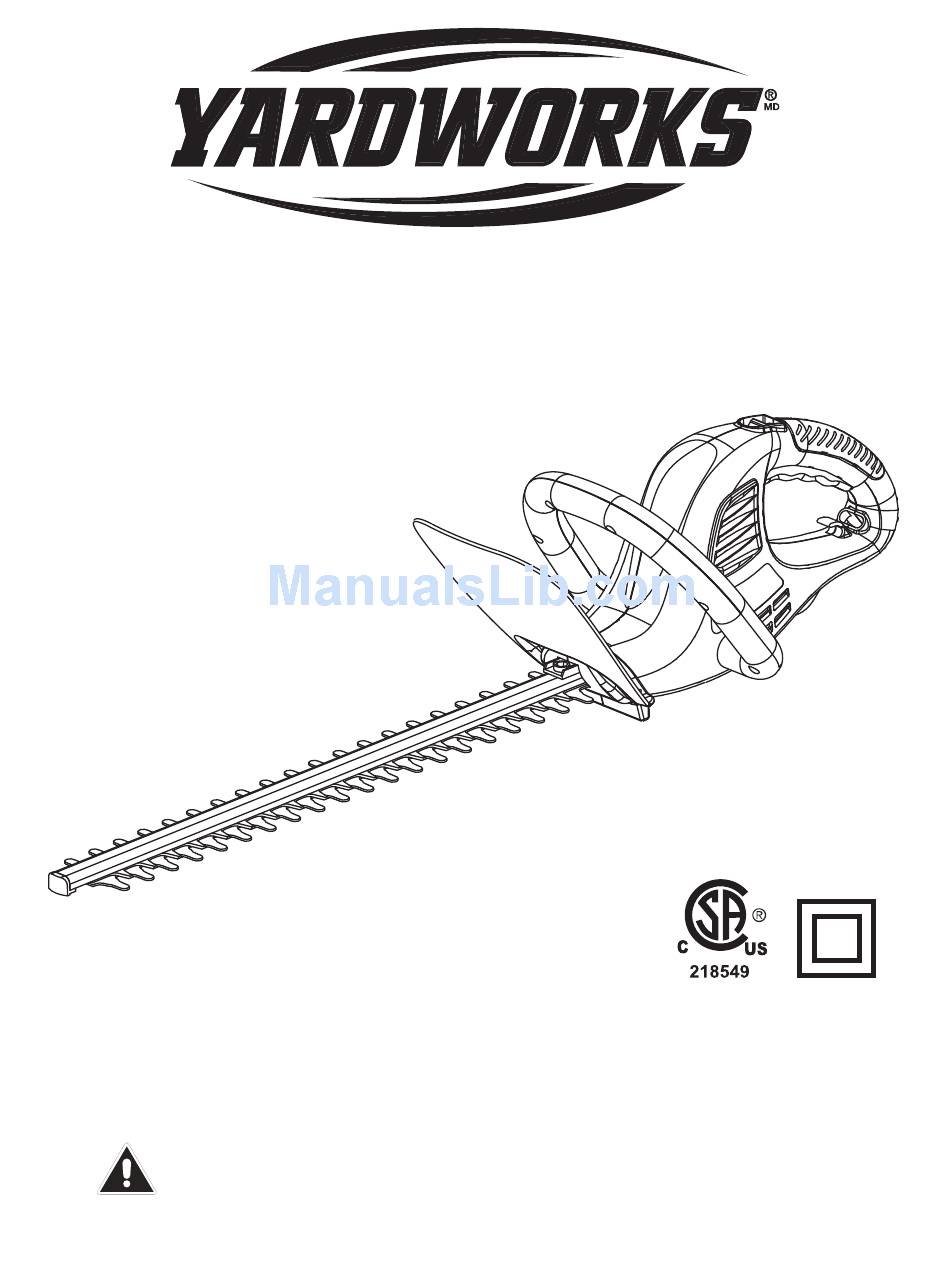

  • Page 1 ELECTRIC HEDGE TRIMMER 60-3014-6 Owner's Manual TOLL-FREE HELPLINE: 1 866 523-5218 IMPORTANT: Read all safety rules and instructions carefully before using this product.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS …....……………………………………………………………… 2 SAFETY INFORMATION ………………………………………………………………………… 3 …………………………………………………………………… 6 SPECIFIC SAFETY RULES KNOW YOUR HEDGE TRIMMER …...………………………………………………… 7 ASSEMBLY INSTRUCTIONS ………………………………………………………………… 8 OPERATING INSTRUCTIONS ………………………………………………………………… 9 MAINTENANCE …………………………………………………………………………………… 12 WARRANTY ……........……………………………………………………… 13 PARTS LIST ……………………………………………………………………………………… SPECIFICATIONS Motor......................120 V AC, 60 Hz Input..........................3.5 A Speed......................3200 SPM (no load) Blade length......................18"...
  • Page 3: Safety Information

    SAFETY INFORMATION Safety is a combination of common sense, staying alert, and knowing how to use your hedge trimmer. WARNING: ⁄ TO AVOID MISTAKES THAT COULD CAUSE SERIOUS INJURY, DO NOT PLUG IN THE HEDGE TRIMMER UNTIL THE FOLLOWING STEPS HAVE BEEN READ AND UNDERSTOOD. 1.
  • Page 4 SAFETY INFORMATION WARNING: DOUBLE INSULATED This hedge trimmer has a plug that looks like the one shown in Fig. A. The hedge trimmer is double insulated to provide a double thickness of insulation between you and the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor components with protective insulation.
  • Page 5 SAFETY INFORMATION CAUTION : IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE. WARNING: THIS HEDGE TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS. GUIDELINES FOR USING EXTENSION CORDS USE THE PROPER EXTENSION CORD.
  • Page 6: Specific Safety Rules

    SPECIFIC SAFETY RULES 1. IF YOU ARE NOT thoroughly familiar with the operation of the hedge trimmer, obtain advice from a qualified person. 2. MAKE SURE wiring codes and recommended electrical connections are followed. The hedge trimmer is double insulated. When servicing, use only identical replacement parts.
  • Page 7: Know Your Hedge Trimmer

    KNOW YOUR HEDGE TRIMMER Auxiliary handle Lock out button Trigger switch Guard Blade support rod Blade...
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS UNPACKING (Fig. 1) Remove the hedge trimmer (1) from the carton and examine carefully. NOTE: Do not discard box or any packing material until all parts are examined. Fig. 1 Hedge trimmer WARNING: IF ANY PART OF THE HEDGE TRIMMER IS MISSING OR DAMAGED, DO NOT PLUG THE HEDGE TRIMMER IN UNTIL THE DAMAGED PART IS REPAIRED OR REPLACED.
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Attaching Extension Cord To Hedger (Fig. 2) Use the cord retainer as shown in the picture. ON/OF F SWITCH WARNING: BEFORE CONNECTING YOUR HEDGE TRIMMER TO THE POWER OUTLET, ALWAYS TURN THE SWITCH TO THE OFF POSITION. FAILURE TO CHECK COULD RESULT IN ACCIDENTAL START–UP CAUSING SERIOUS INJURY.
  • Page 10 OPERATING INSTRUCTIONS Hedging Tips WARNING: TO AVOID INJURY, DO NOT CARRY THE HEDGE TRIMMER WITH YOUR FINGER ON THE SWITCH. AVOID UNINTENTIONAL STARTING. Before Hedging • IMPORTANT! Lubricate the blade with light machine oil. Ignoring this step will decrease blade life and cause difficult operation. During Hedging •...
  • Page 11 OPERATING INSTRUCTIONS To help keep the hedge uniform and healthy (Fig. 5) • Always trim the hedge so the branches are exposed to the air, sun, and adequate moisture. • Trim the top slightly narrower than the bottom, or trim the sides straight •...
  • Page 12: Maintenance

    MAINTENANCE WARNING: ALWAYS TURN OFF THE TOOL AND UNPLUG THE EXTENSION CORD FROM THE OUTLET BEFORE MAINTAINING THE HEDGE TRIMMER. GENERAL MAINTENANCE Keep your hedge trimmer clean and in good repair for maximum performance and machine longevity. Before each use: •...
  • Page 13: Warranty

    If you do not know the dealer or distributor in your area, please call toll free 1 866 523-5218. YARDWORKS will not accept the return of a complete unit unless prior written permission has been extended by YARDWORKS CANADA.
  • Page 14: Parts List

    PARTS LIST Item Description Housing assembly 920001 3640186 Inner plug 3411386-1 Switch trigger 3340187 Spring 3630129 Switch 3340287 Spring 3410787-1 Lock button 3220313 Screw 920002 Motor&Blade assembly 3220187 Trigonal screw 3220186 Bottom cover 3290675 Spring washer 3290186 Washer 3250186 Spacer 34101165 Auxiliary handle 3220905 Crossed screw...
