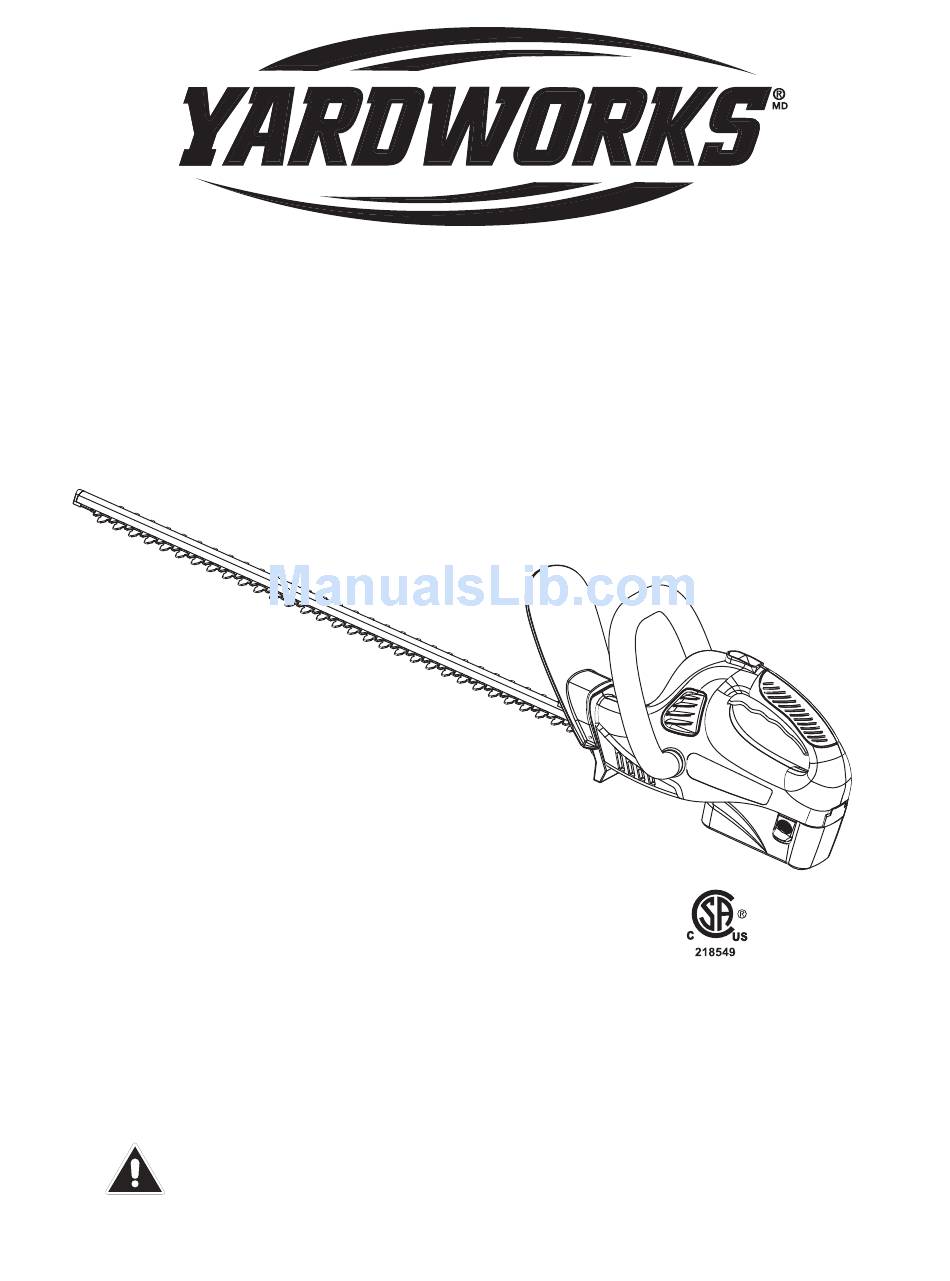

- Page 1 CORDLESS HEDGE TRIMMER 60-3023-4 Owner's Manual TOLL-FREE HELPLINE: 1 866 523-5218 IMPORTANT: Read all safety rules and instructions carefully before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS …....……………………………………………………………………….…………..………2 SAFETY INFORMATION ………………………………………………………………………………….…………..………3 ………………………………………………………………………………….…………..………7 PACKAGE CONTENTS KNOW YOUR 18 V CORDLESS HEDGE TRIMMER ……………………………………………….…………..………8 ASSEMBLY INSTRUCTIONS ………………………………………………………………………….…………..………9 OPERATING INSTRUCTIONS ………………………………………………………………………….…………..…… 11 MAINTENANCE …………………………………………………………………………………………….…………..…… 15 WARRANTY ……........……………………………………………………………….…………..…… 16 PARTS LIST ……………………………………………………………………………………………….…………..…… SPECIFICATIONS 18 V CORDLESS HEDGE TRIMMER Battery..........................18 V, 1.7 Ah, nickel-cadmium Speed.............................3200 SPM (no load) Blade length..............................20"... -
Page 3: Safety Information
SAFETY INFORMATION Safety Signals The purpose of safety signal statements and symbols is to attract your attention to possible danger. Read them carefully to understand and practice proper accident prevention. DANGER Signals an EXTREME hazard. Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock, and personal injury. - Page 4 SAFETY INFORMATION WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. Work Area • Keep your work area clean and well lit. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks that may ignite the dust or fumes.
- Page 5 SAFETY INFORMATION For ALL Garden Tools •Avoid dangerous environment. Don’t use tool in damp or wet locations. •Don’t use in rain. •Keep bystanders and children away while operating. •Dress properly. Do not wear loose clothing or jewellery. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
- Page 6 SAFETY INFORMATION WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow safety rules listed below may result in electric shock, fire, and/or personal injury: • Do not abuse the cord. Never use the cord to carry the tool. Never pull on the cord to remove the plug from the power outlet.
-
Page 7: Package Contents
PACKAGE CONTENTS By purchasing a battery-powered tool, you have helped reduce the pollution level of our environment. Examine all the parts before using the cordless hedge trimmer and battery charger. If any parts are missing or damaged, return the tool to the store with proof of purchase for a replacement. WARNING To reduce the risk of fire, electric shock, and personal injury: •... -
Page 8: Know Your 18 V Cordless Hedge Trimmer
KNOW YOUR 18 V CORDLESS HEDGE TRIMMER Guard Auxiliary handle Blade support rod Lock-out button Upper cutting blade Soft grip handle Lower blade Trigger switch Battery pack Battery pack latch... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Installing and removing the battery IMPORTANT! The battery pack is not charged when it is purchased. Before using the trimmer for the first time, charge the battery. See Charging Procedure (Fig. 4) for further instructions. To Remove 1. Press in and hold the latch buttons (1) on both sides of the battery pack. 2. - Page 10 ASSEMBLY INSTRUCTIONS Blade DANGER If the hedge trimmer blade jams or gets caught on an electrical cord or wires, DO NOT TOUCH THE BLADE FOR ANY REASON! IT CAN BE ELECTRICALLY LIVE AND CAUSE SERIOUS OR FATAL INJURY. Release or drop the trimmer in the quickest safest way. If possible, disconnect the damaged electrical cord or line from its power source.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS On/Off Switch The hedge trimmer has a power switch and a lock-out button that are used together to prevent accidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the handle (2). -
Page 12: Battery Pack
OPERATING INSTRUCTIONS Charging Procedure (Fig. 4 ) With regular use, the battery pack will need 90 MINUTES or less to fully charge. Allow the battery to fully discharge before recharging. It is recommended to charge the battery pack every 3 months when not in use. Plug the charger into an AC power outlet. - Page 13 OPERATING INSTRUCTIONS Checking the Charge If the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. Charger Maintenance • Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth.
- Page 14 OPERATING INSTRUCTIONS Charger mounting (Fig. 5) 1. This charger can be installed hanging on a wall using two screws (not supplied). 2. Locate the placement for the charger to be wall mounted. 3. If fastening to wood studs, use 2 wood screws. 4.
-
Page 15: Maintenance
MAINTENANCE WARNING To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger . • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. Battery Pack •... -
Page 16: Warranty
WARRANTY For TWO YEARS from the date of purchase within Canada, YARDWORKS CANADA will, at its option, repair or replace for the original purchaser, free of charge, any part or parts found to be defective in material or workmanship. This warranty does not cover: 1. -
Page 17: Parts List
PARTS LIST Item Description 3110273-2 18 V SP battery (60-2010-0) 3410946 Battery socket 3410887-1 Switch trigger 3110187-1 Housing 3610111 Motor 3410587-1 Left vent 3220511 Screw 3220187 Screw 3411087 Gear box cover 3220511 Screw 3310387 Blade assembly 3410711-2 Shield 3310187 Gear box 3220511 Screw 3110287...
