Summary of Contents for Yardworks CGT48CU

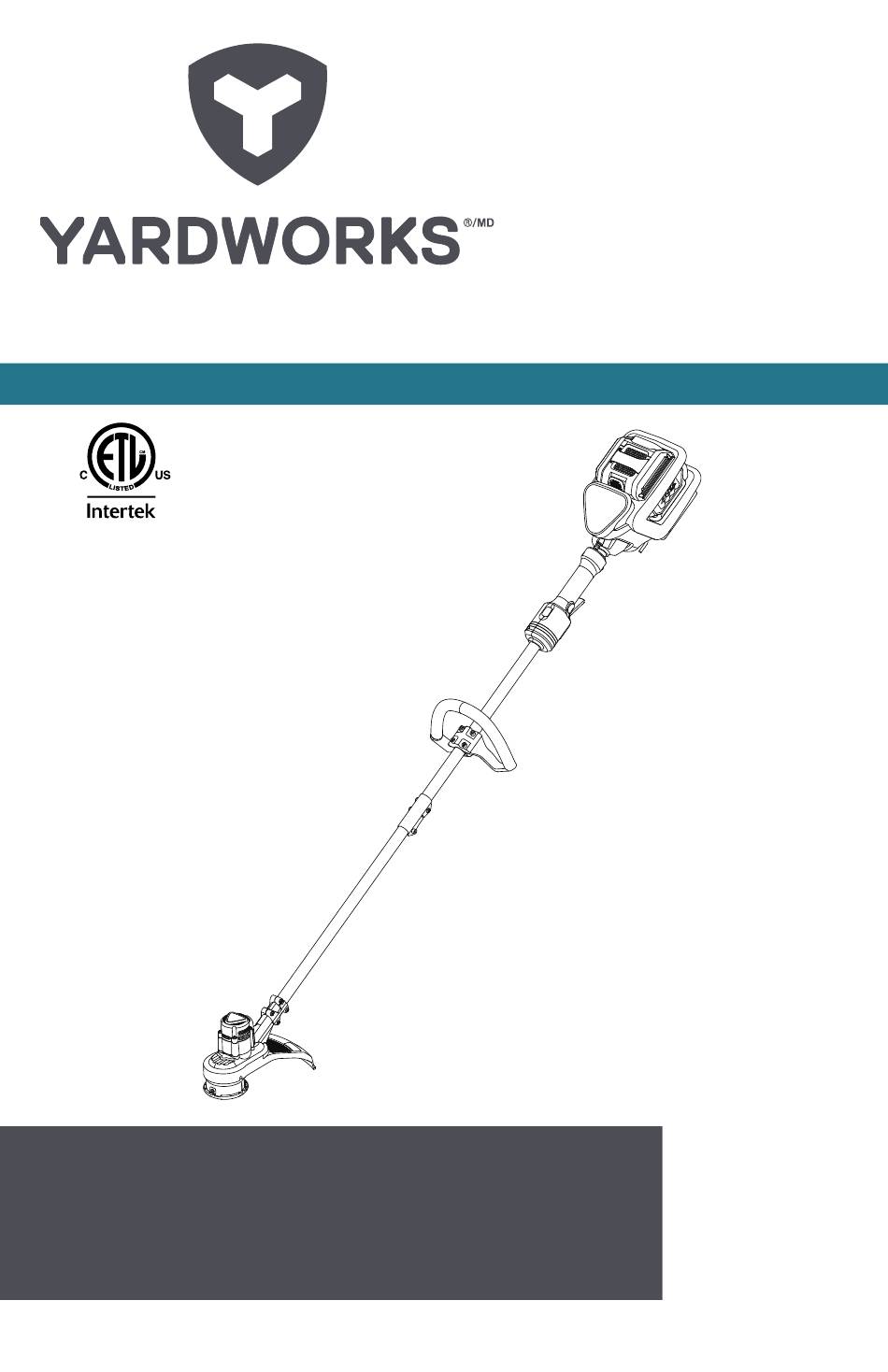

- Page 1 13” (33 CM) CORDLESS GRASS TRIMMER model number 060-1983-0 | contact us: 1.866.523.5218 3026035 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
- Page 2 model no. 060-1983-0 | contact us: 1.866.523.5218 model no. 060-1983-0 | contact us: 1.866.523.5218...
- Page 3 model no. 060-1983-0 | contact us: 1.866.523.5218 Introduction Safety Instructions and Symbols Product Specifications Product Diagram Assembly Operation Maintenance Storage Troubleshooting Exploded View Parts List Warranty...
-
Page 4: Safety First
It has been designed, engineered ® and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact our Yardworks ® customer service line at 1.866.523.5218. PLEASE READ AND RETAIN THIS INSTRUCTION MANUAL. These instructions will enable you to assemble and maintain your appliance properly. - Page 5 model no. 060-1983-0 | contact us: 1.866.523.5218 FOR ALL APPLIANCES moving parts, the binding of the moving parts. Check for broken or defective • Avoid dangerous environments — do not parts that can affect the safe operation use appliances in damp or wet locations. of your tool.
-
Page 6: Safety Warnings For Battery Pack
model no. 060-1983-0 | contact us: 1.866.523.5218 additional medical help. Liquid ejected not store battery packs haphazardly in a box or drawer where they may from the battery may cause irritation or burns. short-circuit each other or be short- circuited by other metal objects. When 7. - Page 7 Recharge only with the charger turning the equipment off and on, the user is specified by Yardworks . Do not ® encouraged to try to correct the interference...
- Page 8 Yardworks Canada has established a partnership with the RBRC ® Corporation to recycle any Yardworks batteries with the RBRC- ® call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the battery’s life cycle is ended, please call 1-800-822-8837 for a free service that will properly dispose of the battery.
-
Page 9: Product Specifications
model no. 060-1983-0 | contact us: 1.866.523.5218 PRODUCT SPECIFICATIONS Voltage 48 V No Load Speed 7000/min Cutting Diameter 13” (33 cm) Line Diameter 0.080” (2.0 mm) Line Length 2x8ft (4.9 m) Battery Capacity (060-1987-2) 2.0 Ah Charger Input (060-1990-2) 120 V~, 60 Hz, 110 W Charger Output (060-1990-2) 48 V , 2 A... - Page 10 model no. 060-1983-0 | contact us: 1.866.523.5218 Battery pack (060-1987-2) Battery pack release button On/Off switch Lock-off button Auxiliary handle Connector Safety guard Line cutter Trimmer head 10. Spool 11. Bump knob 12. Charger (060-1990-2) 13. Wrench (Fig. A1) 14. Screws (Fig. B) We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool.
- Page 11 model no. 060-1983-0 | contact us: 1.866.523.5218 To reduce the risk of injury, user must read instruction manual Intended Use The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that cannot be reached with the lawn mower. 1.
- Page 12 Locking/ Guide recess Release knob model no. 060-1983-0 | contact us: 1.866.523.5218 model no. 060-1983-0 | contact us: 1.866.523.5218 3. Assembling the safety guard Attach the safety guard to the trimmer head. Align the guard so it slides into the slots located on the trimmer head.
-
Page 13: Charging Indicator
model no. 060-1983-0 | contact us: 1.866.523.5218 CHARGING INDICATOR This charger is designed to detect some problems that can arise with battery packs. Indicator lights indicate problems (see table below). Light ON/ Flash Status Defective battery. Red on Battery Temperature Protection. The temperature of battery pack is less than 0 C (32... -
Page 14: Switch On/Off
Release knob model no. 060-1983-0 | contact us: 1.866.523.5218 1. SWITCH ON/OFF To switch on, press the lock-off button first, then the On/Off Switch. (See Fig. F.) To switch off, release the On/Off Switch. 2. TRIMMING 1) Keep the trimmer head at an angle of about 30° to the ground when trimming. (See Fig. G1.) 2) Do not cut wet grass because it tends to stick to the trimmer head and guard, prevents proper discharge of grass clippings, and could cause you to slip and fall. - Page 15 model no. 060-1983-0 | contact us: 1.866.523.5218 3. ADJUSTING CUTTING LINE LENGTH—AUTOMATIC BUMP LINE FEED The trimmer head allows the operator to release more cutting line without stopping the motor. As line becomes frayed or worn, additional line can be released by lightly tapping the bump knob on the ground while operating the trimmer.
- Page 16 model no. 060-1983-0 | contact us: 1.866.523.5218 4. TO REPLACE THE SPOOL AND LINE 1) For your convenience, it is recommended you buy a replacement spool with line. 2) Press and hold in the two cap release latches. Loosen the cap by rotating it counter- clockwise.
- Page 17 model no. 060-1983-0 | contact us: 1.866.523.5218 5. TO REPLACE THE LINE ON THE SPOOL 1) Cut a piece of line approximately 16’ (4.9 m) long. 2) Insert the centre point of line into the notch in the middle section of the spool and wind the line in a clockwise direction as shown.
-
Page 18: Maintenance
model no. 060-1983-0 | contact us: 1.866.523.5218 MAINTENANCE Always check the product prior to use for any damage. After use, disconnect the battery from the tool and check for damage. Your power tool requires no additional lubrication or maintenance. There are no user- serviceable parts in your power tool. - Page 19 Corrective Action Battery discharged. Recharge battery; also see the content in charger manual. Battery too hot/cold. Allow to cool/warm. Trimmer fails to operate. Motor is broken. Contact Yardworks at 1.866.523.5218. ® Internal wiring of machine Contact Yardworks at 1.866.523.5218. ® damaged.
- Page 20 model no. 060-1983-0 | contact us: 1.866.523.5218...
- Page 21 model no. 060-1983-0 | contact us: 1.866.523.5218 Part Description Quantity Compression Spring Self-Tapping Screw Self Tapping Screw Rear Cover Compression Spring Baffle Trigger Motor Right_handle Self Tapping Screw Housing Self Tapping Screw Screw Right Side Cover Right_battery_support Gear Self Tapping Screw Flange Protect Control Board Gear Box Body...
- Page 22 (365) days from the date of retail purchase. Made in China. Imported by Yardworks Canada Toronto, Canada M4S 2B8 Always remove or disconnect the battery pack before adjusting, cleaning,...
- Page 23 FCC Part 15 Supplier’s Declaration of Conformity Product Description: 48V 2.0A Charger Model Number: 060-1990-2 Trade Name: YARDWORKS ® This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 25: Assembling The Safety Guard
13” (33 CM) CORDLESS GRASS TRIMMER Item # 060-1983-0 | contact us: 1.866.523.5218 1. ASSEMBLING THE UPPER SHAFT AND LOWER SHAFT a) Loosen the bolt on the connector. (See Fig. A1.) b) Align and insert the lower shaft directly into the upper shaft. (See Fig. A2.) c) Position the locking/release button into the guide recess. - Page 26 13” (33 CM) CORDLESS GRASS TRIMMER Item # 060-1983-0 | contact us: 1.866.523.5218 BEFORE OPERATION 1. CHARGING PROCEDURE (SEE FIG. D.) a) Plug the charger into an appropriate outlet. b) Slide the battery pack into the charger; the light will begin flashing green to indicate the charging process has started.
