Page 1: Hedge Trimmer

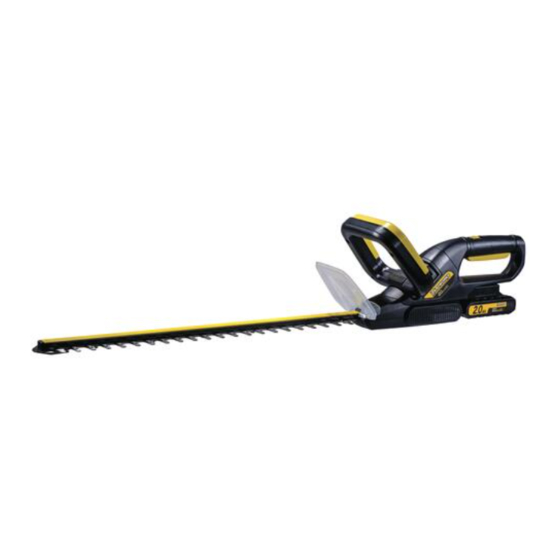

20 V (6 Ah) LITHIUM-ION CORDLESS HEDGE TRIMMER 60-3040-2 Owner's Manual TOLL-FREE HELPLINE: 1-866-523-5218 IMPORTANT: Read all safety rules and instructions carefully before using this product. -
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS …....……………………………………………………………………….…………..………2 SAFETY INFORMATION ………………………………………………………………………………….…………..………3 ………………………………………………………………………………….…………..………7 PACKAGE CONTENTS KNOW YOUR 20 V CORDLESS HEDGE TRIMMER ……………………………………………….…………..………8 ASSEMBLY INSTRUCTIONS ………………………………………………………………………….…………..………9 OPERATING INSTRUCTIONS ………………………………………………………………………….…………..…….. 11 CHARGING PROCEDURE ............................1 2 BATTERY INSTRUCTIONS ............................13 MAINTENANCE …………………………………………………………………………………………….…………..……... 1 5 WARRANTY ……........……………………………………………………………….…………..……. 16 SPECIFICATIONS 20 V (6 Ah) LITHIUM-ION 22"... -
Page 3: Safety Information
SAFETY INFORMATION Safety Signals The purpose of safety signal statements and symbols is to attract your attention to possible danger. Read them carefully to understand and practice proper accident prevention. DANGER Signals an EXTREME hazard. Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock, and personal injury. - Page 4 SAFETY INFORMATION WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. Work Area • Keep your work area clean and well lit. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 5 • If the battery pack case is cracked or damaged, DO NOT insert into the charger. Replace the battery pack. • DO NOT charge these battery packs with any other type of charger. • Charge only the 60-2181-2 20 V, 6 Ah lithium-ion battery pack using the 60-2182-2 Yardworks battery charger. • DO NOT allow liquid inside the charger.
- Page 6 SAFETY INFORMATION WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow safety rules listed below may result in electric shock, fire, and/or personal injury: • Do not abuse the cord. Never use the cord to carry the tool. Never pull on the cord to remove the plug from the power outlet.
-
Page 7: Package Contents
PACKAGE CONTENTS By purchasing a battery-powered tool you have helped reduce the pollution level of our environment. Examine all the parts before using the cordless hedge trimmer and battery charger. If any parts are missing or damaged, return the tool to the store with proof of purchase for a replacement. NOTE: BATTERY & CHARGER SOLD SEPARATELY. WARNING To reduce the risk of fire, electric shock, and personal injury: •... -
Page 8: Know Your 20 V Cordless Hedge Trimmer
KNOW YOUR 20 V CORDLESS HEDGE TRIMMER Guard Auxiliary handle Blade support rod Lock button Upper cutting blade Lower blade Soft grip handle Trigger switch Battery pack latch Battery pack (sold separately) -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS To remove the battery (sold separately - 60-2181-2): 1. Slide the latch button on the battery pack down (1) and hold. 2. Grasp the trigger handle (2) firmly. Pull the battery pack out of the handle. NOTE: The battery pack fits snugly into the handle to prevent accidental dislodging. It may require a strong pull to remove. - Page 10 ASSEMBLY INSTRUCTIONS Blade DANGER If the hedge trimmer blade jams or gets caught on an electrical cord or wires, DO NOT TOUCH THE BLADE FOR ANY REASON! IT CAN BE ELECTRICALLY LIVE AND CAUSE SERIOUS OR FATAL INJURY. Release or drop the trimmer in the quickest and safest way. If possible, disconnect the damaged electrical cord or line from its power source.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS On/Off Power Switch & Circuit Breaker The hedge trimmer has a power switch and a lock-OFF switch used together to prevent accidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the handle (2). -
Page 12: Charging Procedure
CHARGING PROCEDURE BECOME FAMILIAR WITH THE CHARGER 60-2182-2 (SOLD SEPARATELY) Before attempting to use this charger, become familiar with all of its operating features and safety requirements. Fig. 1 1. Charging indicator reference chart 2. Battery compartment 3. Power source LED light 4. -
Page 13: Battery Instructions
BATTERY INSTRUCTIONS Press the Battery Capacity Indicator (BCI) button. The lights will illuminate according to the battery's current power level. See chart below: Battery Capacity LIGHT METRE Indicator (BCI) button BATTERY METRE Capacity Lights The battery is at full capacity 4 Green Lights 3 Green Lights The battery is at 70% capacity... - Page 14 OPERATING INSTRUCTIONS WALL-MOUNTABLE The charger features a key-hole hanging feature for convenient storage. Screws should be installed so that the centre distance is 3 5/32" (8 cm). Use proper wall fasteners to accommodate the combined weight of the charger and the battery pack (approximately 3 1/2 lb [1.6 kg]) CORD WRAP The charger is equipped with a cord wrap that is located at the rear of the unit.
-
Page 15: Maintenance
MAINTENANCE WARNING To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger . • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. Cleaning 1. -
Page 16: Warranty
WARRANTY For TWO YEARS from the date of purchase within Canada, YARDWORKS CANADA will, at its option, repair or replace for the original purchaser, free or charge, any part or parts found to be defective in material or workmanship. This warranty does not cover: 1.
