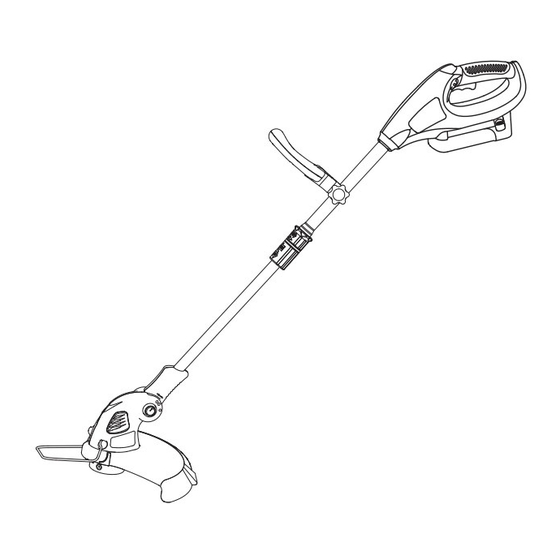

CORDLESS GRASS TRIMMER/EDGER
60-2273-4
Owner's Manual
TOLL-FREE HELPLINE: 1 866 523-5218
!
WARNING:
Read and follow all safety rules and operating instructions before
using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60-2273-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yardworks 60-2273-4

Summary of Contents for Yardworks 60-2273-4

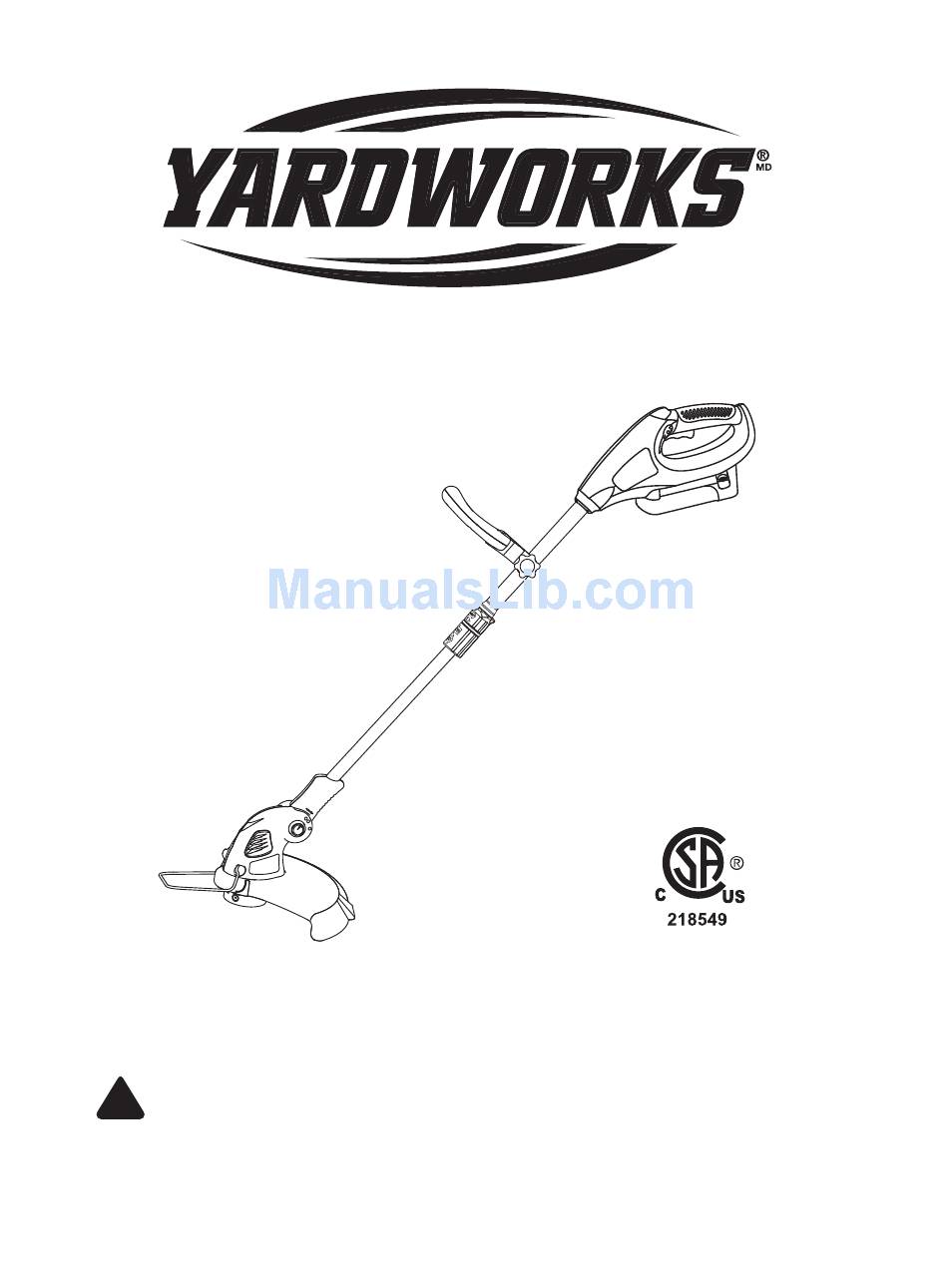

  • Page 1 CORDLESS GRASS TRIMMER/EDGER 60-2273-4 Owner's Manual TOLL-FREE HELPLINE: 1 866 523-5218 WARNING: Read and follow all safety rules and operating instructions before using this product.

  • Page 2: Table Of Contents

    Speed................................ 8000 RPM (no load) Cutting Path................................12" (30 cm) Line diameter..............................0.065" (1.65 mm) Charge time................................1 1/2 hours Run Time............................Approximately 30 minutes Weight............................7 lb 4 oz (3.3 kg) with battery Use with YARDWORKS 60-2267-0 replacement spool Use with YARDWORKS 60-2143-4 replacement battery...

  • Page 3: Safety Information

    SAFETY INFORMATION Read this entire Owner's Manual carefully and understand it thoroughly before attempting to assemble or operate this Grass Trimmer. These safety rules are not meant to cover ev ery possible condition that may occur. If questions arise concerning the product, contact the Toll-Free Helpline, at 1 866 523-5218 , between 8:30 a.m. and 5:00 p.m. EST, Monday to Friday.
  • Page 4 SAFETY INFORMATION WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. Work Area • Keep your work area clean and well lit. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks that may ignite the dust or fumes.
  • Page 5 SAFETY INFORMATION For ALLGarden Tools •Avoid dangerous environment. Don’t use tool in damp or wet locations. •Don’t use in rain. •Keep bystanders and children away while operating. •Dress properly. Do not wear loose clothing or jewellery.They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
  • Page 6 SAFETY INFORMATION WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow safety rules listed below may result in electric shock, fire, and/or personal injury: • Do not abuse the cord. Never use the cord to carry the tool. Never pull on the cord to remove the plug from the power outlet.

  • Page 7: Package Contents

    PACKAGE CONTENTS By purchasing a battery-powered tool, you have helped reduce the pollution level of our environment. Please check the contents of the carton with Fig. A. Examine all the parts before using the cordless grass trimmer and battery charger. If any parts are missing or damaged, please call 1 866 523-5218 for assistance.

  • Page 8: Know Your Cordless Trimmer/Edger

    KNOW YOUR 24 V CORDLESS GRASS TRIMMER/EDGER Trigger switch Auxiliary handle 24 V Battery pack Auxiliary handle adjustment knob Telescoping boom Motor housing Pivoting head Edge Guide adjustment button Guard Single line cutting spool...

  • Page 9: Charging Procedure

    CHARGING PROCEDURE With regular use, the battery pack will need 90 MINUTES or less to fully charge. Allow the battery to fully discharge before recharging. It is recommended to charge the battery pack every 3 months when not in use. 1.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Battery pack (Fig. C) IMPORTANT! The battery is not shipped fully charged. It is recommended that the battery be fully charged before the initial use. With regular use, the battery pack will take 90 MINUTES or less to charge fully. It is recommended that the battery be charged every 3 months when the trimmer is not in use.

  • Page 11: Guard

    ASSEMBLY INSTRUCTIONS Guard (Fig. To avoid injury, always remove the battery pack before installing the guard, changing a cutting line, or making any adjustments. If the guard is damaged, do not use the grass trimmer until it is replaced. NOTE: Install the protective guard before operating the grass trimmer. It cannot be removed or disassembled. 1.
  • Page 12 ASSEMBLY INSTRUCTIONS Auxiliary handle (Fig. E) WARNING To avoid injury, adjust the auxiliary handle for optimum control and balance. Do not overreach when operating grass trimmer. Keep proper balance at all times for better control of the tool in unexpected situations. 1.

  • Page 13: Cutting Line

    ASSEMBLY INSTRUCTIONS Cutting Line (Fig. F ) A spool of monofilament cutting line is preinstalled on the grass trimmer. When the cutting line needs replacing, insert a new spool. To avoid injury, always remove the battery pack before installing the guard, changing a cutting line, or making any adjustments.

  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS WARNING To avoid injury: • Do not squeeze the trigger while the grass trimmer is inverted. • Do not carry the grass trimmer with your finger on the switch. Avoid unintentional starting. To Turn On/Off (Fig. G): • Squeeze the trigger switch (1) to start. •...
  • Page 15 OPERATING INSTRUCTIONS Edging function (Fig. H) This trimmer is equipped with an edging feature for use on the sidewalks or walkways, patios and/or driveways to clear over -grown grass from manicured surfaces. 1. Pull up edging coupler and turn handle end counterclockwise. 2.
  • Page 16 OPERATING INSTRUCTIONS TELESCOPING BOOM (Fig. I) The boom can be extended or shortened for ease of use. 1. Unscrew telescoping boom coupler and slide to desired position. 2. Tighten telescoping boom coupler. Fig. I TELESCOPING BOOM COUPLER...
  • Page 17 OPERATING INSTRUCTIONS Adjust the Cutting Angle (Fig. J) This trimmer is equipped with a pivoting head. 1. Using your left hand, grip the nose (1) of the trimmer and use your thumb to depress the pivoting head adjustment button (2). Using your right hand turn the head to either of the 3 available positions.
  • Page 18 OPERATING INSTRUCTIONS Lengthening the Line (Fig. K) While the grass trimmer is operating, the cutting line gets worn down and becomes shorter. This trimmer is equipped with Automatic Line Advancement, which automatically feeds additional line to the correct length as it wears down. If the line does not automatically advance, the trimmer line may be tangled or empty.
  • Page 19 OPERATING INSTRUCTIONS Trimmer Tips Before each use • Make sure the protective guard is tightly installed.Tighten the guard screw. • Make sure the battery is fully charged and that the charger is disconnected before using or storing the trimmer. • Do not store the grass trimmer in sunlight, in an excessively warm place, or near a furnace. The battery life will be shortened.
  • Page 20 OPERATING INSTRUCTIONS Checking the Charge If the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. Charger Maintenance • Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth.
  • Page 21 OPERATING INSTRUCTIONS Charger mounting (Fig. L) 1. This charger can be installed hanging on a wall using two screws (not supplied) 2. Locate the placement for the charger to be wall mounted. 3. If fastening to wood studs, use 2 wood screws. 4.

  • Page 22: Maintenance

    Maintenance WARNING To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger . • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the grass trimmer. Battery Pack •...

  • Page 23: Warranty

    (120) days from the date of retail purchase. How to Obtain Service: Warranty service is available by calling the toll-free helpline, at 1 866 523-5218. YARDWORKS will not accept the return of a complete unit unless prior written permission has been extended by YARDWORKS CANADA.

  • Page 24: Exploded View

    EXPLODED VIEW...

  • Page 25: Parts List

    PARTS LIST Item Description Item Description 3110382-2 Spool w/ line (60-2267-0) 3110377-1 24V battery (60-2143-4) 3411746 Line advance button 3220313 Screw 3110582 Hub assembly 3410302 Cable clamp 3411213-1 Guard 3411146 Lock off button 3290105 3340115 Spring 3290173 Lock washer 3490108 Wire heat shrink 3220313 Machine Screw...
