CONFIGURATION SETPOINTS
NOTE:
NOTE
System
5–26
Profibus Baud Rate
Range: 9600, 19200, 31250, 45450, 93750, 187500, 500K, 1.5M, Autodetect
Default: Autodetect*
Specifies the speed of communication for the Profibus inteface.
* Profibus communications will operate only in 1.5Mbps or auto-detect with the
presentimplementation. Auto-detect includes all listed baud rates.
Comms OK Evaluation
Range: Serial, Serial + Ethernet, Serial + Fieldbus, Ethernet, Fieldbus, Ethernet + Fieldbus,
All
Default: Serial
Specifies the operands for the Comms OK flag.
Comm Failure Trip
Range: Off, 1 to 29 step 1s
Default: Off
Specifies the time without comms before a trip will be generated.
Comm Failure Alarm
Range: Off, 1 to 29 step 1s
Default: Off
Specifies the time without comms before an alarm will be generated.
Timing delay commences after failure is detected.
Change Mode on Comm Alarm
Range: Disabled, Enabled
Default: Disabled
If enabled, forces control mode to manual if comms are lost.
Fieldbus Input Data
Range: Default Map, 1 Register to 95 Registers
Default: Default Map
This setpoint specifies the number of Modbus User Map registers to be read as part of
FieldBus Input Data.

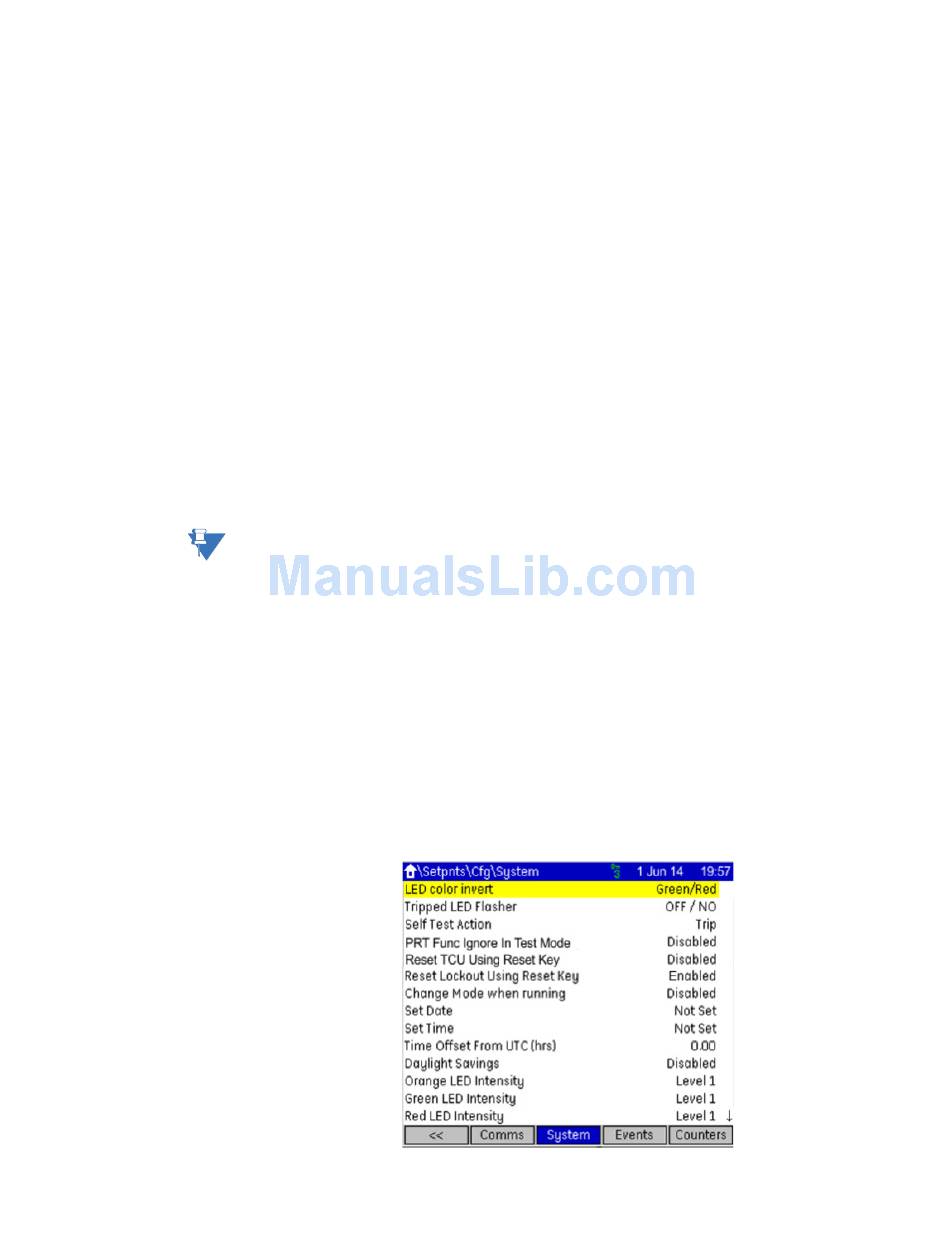

Figure 5-22: System setpoint page
MM300 MOTOR MANAGEMENT SYSTEM – INSTRUCTION MANUAL
CHAPTER 5: SETPOINTS
