Media Compart-
ment, cont'd.
Intermec EasyCoder F2 – Installation & Operation Ed. 2

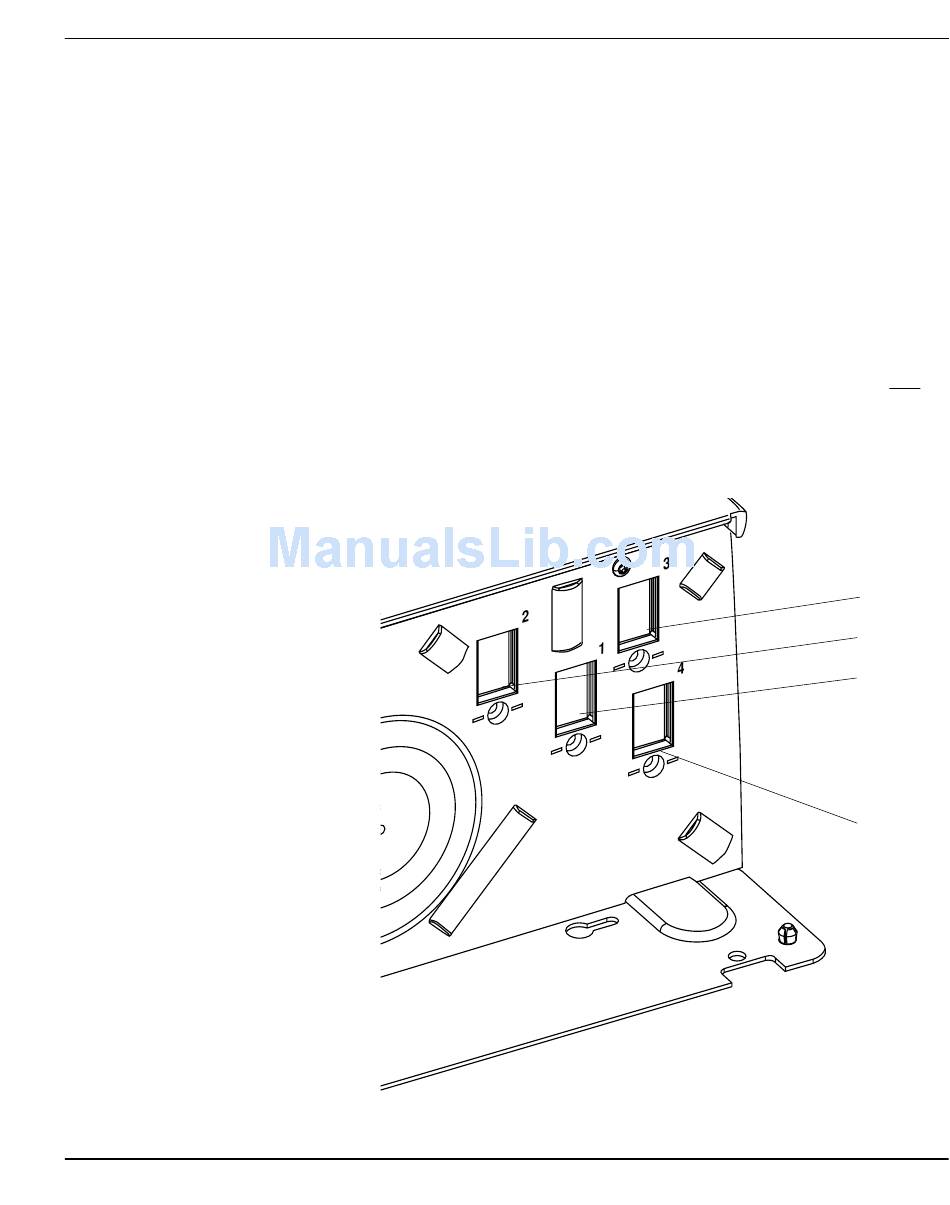

Paper Supply Positions
There are four sets of threaded holes and slots in the printer's centre
section for the paper supply hanger (or spool) so as to allow the largest
possible roll size, given the limitations of the rewind unit and/or
the full enclosure provided by the long side door. The positions are
indicated by numbers engraved in the centre section.
• Position 1 is used when the paper compartment is fully enclosed
by a long side door, regardless of the existence of a rewinder
Maximum roll size is 152 mm (6").
• Position 2 is used in connection with a short side door that only
encloses the print unit, but without any rewinder. Maximum
roll size is 213 mm (8.38").
• Position 3 is used in connection with a short side door and an
optional rewind unit. Maximum roll size is 203 mm (8").
• Position 4 is reserved for future development.
The printer can also use an external paper supply located behind
the paper compartment.
Chapter 3 Installation
Pos. 3
Pos. 2
Pos. 1
(Pos. 4)
