- Page 1 DPA-D2-GSM GSM unit for D2 videodoor system User´s manual...
- Page 2 About GSM Unit Discription: The GSM unit is a telephone converter designed for 2-wire system to divert calls from outdoor station to telephone or mobile phone.With GSM unit,you can communicate with outdoor visitor by your telephone or mobile phone which just like a remote control,you can do the operation of talking,unlock and so on.

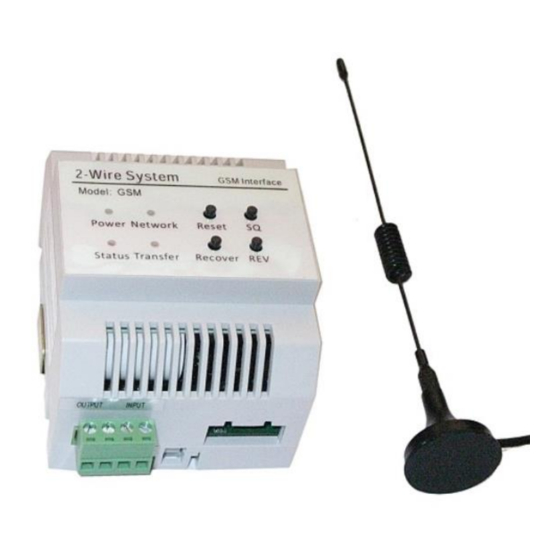

- Page 3 Configuration: BUTTON Power Network Reset Signal Quality Status Transfer Recover Test The instructions of indicator: LED indicator Descriptions -LED off When the GSM not working Power -LED flashes rapidly when the system error -Always on when the GSM work normally -LED off when the SIM card is not detected -LED flashes slowly when the SIM card is detected but unregistered Network...
- Page 4 The instructions of button: Button Descriptions -Press Reset button,it will reset GSM kits Reset -Press Signal Quality button,it will show the signal strength Signal Quality -Press Recover button,it will recover the password defaults Recover -Press Test button,it will call the monitor 00 Test NOTE: Signal strength show:After press Signal Quality key, 4 LEDs off for a second,...
- Page 5 3. DIP Switches Setting for GSM Bit State Description DIP1-DIP5 Reserve 3 4 5 Set to on,it shows the system is partment. 3 4 5 DIP6 Set to off, it shows the system is villa. 3 4 5 Note: Total 6 bits for DIP switches, to villa application, just Bit-6 is useful,Bit1 to Bit5 are invalid.
-
Page 6: Operation Instructions
Button operation monitors: • Maximum 3 telephone numbers can GSM configure be set,Use ▲ /▼ Button to move 1) 0 upward / downward to select the item,then press the MENU button to edit.Use ▲ / ▼ Button to increase / decrease the value,and use button 4)Divert mode select: 2... - Page 7 Item Discription • Input 1# on your telephone or mobile phone to release the first lock Unlocking • Input 2# on you telephone or mobile phone to release the second lock • Input 9# on your telephone or mobile phone to hang Hanging up off absolutely •...
- Page 8 7.Specification Power input: DC 20~28Vdc (supplied by PC6) Power Consumption: Standby:60mA;working:500mA -10ºC +40ºC Working temperature: Wiring: 2 wire,non-polarity Dimension: 90(H)X72(W)X60(D)mm...
