Page 1: User Manual
2 WIRE SYSTEM XtendLan DPC-D250 series A door station with proximity access control USER MANUAL RF CARD RF CARD RF CARD RF CARD RF CARD RF CARD • Please read this manual carefully to ensure safe and correct operation. • Keep this manual well for future reference. -
Page 2: Table Of Contents
CONTENTS PARTS AND FUNCTIONS ..................3 Part Names......................3 Mounting ......................... 4 BASIC FUNCTIONS ....................6 Unlock Operations ....................6 Fisheye Camera ..................... 6 External Motion Detection ..................6 SETUP INSTRUCTIONS ..................7 Functions Setting Up ....................7 Setting Door Station Address ................. 8 Setting Door Station Calling Mode ................. -
Page 3: Parts And Functions

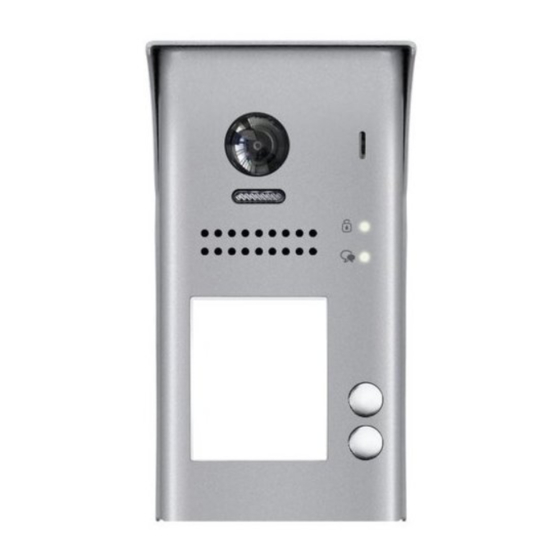

PARTS AND FUNCTIONS Part Names Surface mounted [10] [11] [12] [13] Flush mounted [14] [11] [12] [13] [1] Microphone [5] Nameplate [10] Rainy cover [2] UNLOCK indicator [6] Front panel [11] Mounting hook [3] CALL indicator [7] Speaker [12] Connection port [4] Call button [8] Night view LED [13] Screw hole... -
Page 4: Mounting
PARTS AND FUNCTIONS Mounting The installation height is suggested to 145~160cm. Surface mounted AcDbMLeader (ACDB_MLEADER_CLASS) AcDbMLeader (ACDB_MLEADER_CLASS) 1. Connect the cable correctly. 2. Drill holes in the wall to match the size of screw stoppers,then attach the rainy cover and main unit to the wall. - Page 5 PARTS AND FUNCTIONS Terminal description Lock Control Jumper PIR Motion Detector Connect Port P L S + L 1 L 2 Main Connect Port Lock Control Jumper: To select the lock type. Motion Detector Connect Port: To connect external PIR motion detector. Main Connect Port: To connect the bus line and the electronic locks.
-
Page 6: Basic Functions
BASIC FUNCTIONS Unlock Operations Unlocking of ID Card When the registered user card has been shown to ID card window, the UNLOCK indicator lights up, the buzzer sounds,and the electric door strike is unlocked. • If show the authorized user card,the buzzer will sound of beep+,and the UNLOCK indicator will light up. -
Page 7: Setup Instructions
SETUP INSTRUCTIONS Functions Setting Up This section explains the settings of each function,please refer to the following table: To perform the settings for the function LED_UNLOCK you want,you should move away the metal LED_TALK front panel. Please refer to the sketch KEY_SET map. -
Page 8: Setting Door Station Address
SETUP INSTRUCTIONS Setting Door Station Address Total 4 addresses can be configured. It can be modified either before or after installation. 0 is default, to change the setting, please follow the steps: ID=0,1 door station ID=1,2 door station ID=2,3 door station ID=3,4 door station In standby mode, press... - Page 9 SETUP INSTRUCTIONS Each call button will respond different addresses when set in different calling mode. Refer to the followings for more informations. 1.Standard calling mode(Address range 01-04 by default) Call buttonA: call the monitor with address 01 by default. Call buttonB: call the monitor with address 02 by default. Call buttonC: call the monitor with address 03 by default.
-
Page 10: Setting Camera Resolution
SETUP INSTRUCTIONS Setting Camera Resolution The resolution of the camera can be adjusted at any time, that means the quality of image on screen can be set to high or low. High resolution is default, to change the setting, please follow the steps: In standby mode, press Press KEY_2 button to set the Press KEY_2 button again... -
Page 11: Setting Unlock Time
SETUP INSTRUCTIONS Setting Unlock Time By default, the unlock time is 1s, but it can be changed,the setting range is 1s~99s. Follow the steps: Press and hold on KEY_2 In standby mode, press KEY_SET button three button. The time you holding times. -
Page 12: Setting Night View Led Illumination Mode
SETUP INSTRUCTIONS Setting Night View LED Illumination Mode There are 3 working modes for night view LED indicator, Normally on,Normally off and Auto. Auto is default, to change the setting, please follow the steps: In standby mode, press Press KEY_4 button to set Press KEY_4 button again Press KEY_4 button again KEY_SET button three... -
Page 13: Setting Image Display Mode
SETUP INSTRUCTIONS Setting Image Display Mode Please know that this setting is only effective for monitors which does not support man- ual operation for pan-tilt. When the monitor being called When door station calls monitor,the image will be displayed on screen,there are 3 modes for im- age displayed, Alternate switching mode,Zoom mode and Full screen mode. -
Page 14: Registering Id Card
SETUP INSTRUCTIONS Full screen mode: When answering the call, the image will be displayed on Zoom mode for 5 seconds, then switch to Full screen to remind to enter talking status. If set to forbidden mode, there is no image switching reminder at any image display mode. Activated is default, to change the setting, please follow the steps: Press KEY_3 button to Press KEY_3 button again... - Page 15 SETUP INSTRUCTIONS When power on in 10s,press Press KEY_2 button. Show the first card to ID Show the second card to ID and hold on KEY_SET button card window, set the card card window, set the card of for 3s. of MASTER CARD ADD.
- Page 16 SETUP INSTRUCTIONS Adding User Cards: Show the master card of Show user cards to be Show the master card of MASTER CARD ADD to ID added in sequence. MASTER CARD ADD again card window in standby. to exit. UNLOCK Indicator:OFF UNLOCK Indicator:OFF UNLOCK Indicator:OFF TALK Indicator:ON...
-
Page 17: Wiring
WIRING Connecting Electric Lock Door Lock Controlled with Internal Power 1 2 3 1.Electronic lock of Power-on-to-unlock type should be used. Jumper position on 2&3 2.The door lock is limited to 12V, and hold- ing current must be less than 250mA. PL S+ S- 3.The jumper should be placed on position 2 and 3 before connecting. -
Page 18: Connecting Basic One-To-One
WIRING Connecting Basic One-to-one ID=0 Code=1, DIP6=on 100~240VAC PC6A RF CARD BUS(IM) BUS(DS) L1 L2 PL S+ S- DIP Switches 1 2 3 4 5 6 • The door station work in Standard mode in this situation. Refer to Page 9 in detail. •... -
Page 19: Connecting Multi Monitors
WIRING Connecting Multi Monitors Basic IN-OUT Wiring in Standard Mode • The door station is also compatible with other monitors which are provided by our Code=1, DIP6=on company. (Slave 3) • Please set door station into group calling mode if there is more than 4 monitors in villa(Refer to Page 9) •... - Page 20 WIRING Star Topology Wiring With DBC4A1 in Standard Mode Code=1，DIP6=on Code=2，DIP6=on Impedance OFF ON switch Code=3，DIP6=on Code=4，DIP6=on 100~240VAC PC6A DBC4A1 BUS(IM) BUS(DS) Optional functional module BDU bus amplifier module RLC staircase light controller module DBC4A1 2/4 inputs branch distributor RF CARD ID=0 •...
-
Page 21: Appendix
APPENDIX Precautions • Please clean the unit with soft cotton cloth, don't use the organic impregnant or chemical clean agent. If necessary, please use a little pure water or dilute soap water to clean the dust. • The unit is weather resistant. However do not spray high pressure water on access control keypad directly. -
Page 22: Cables And Requirments
APPENDIX Cables and Requirments The maximum distance of the wiring is limited in the system. Using different cables may also affect the maximum distance which the system can reach. Basic IN-OUT Wiring Mode Cable and distance(unit:m) Cable Usage ≤2 IM ≤16 IM Twisted cable 2x0.75mm Twisted cable 2x1mm... - Page 23 APPENDIX Star Topology Wiring Mode With DBC4A1 DBC4A1 PC6A Cable and distance(unit:m) Cable Usage Twisted cable 2x0.75mm Twisted cable 2x1mm RF CARD -23-...
