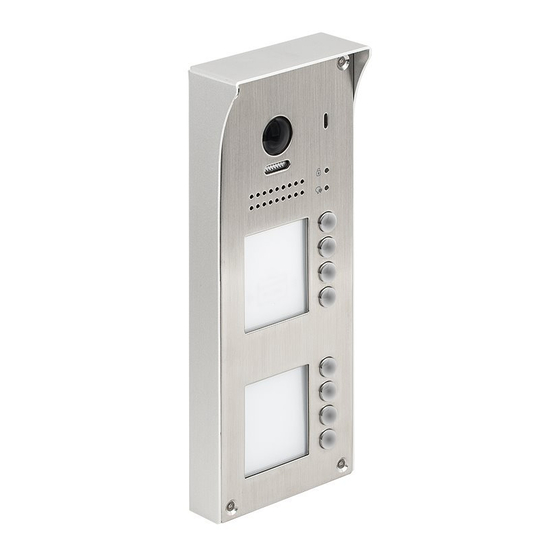

- Page 1 2 WIRE SYSTEM DPC-D268 Fisheye door station with proximity access control USER MANUAL RF CARD DPC-D268-8S DPC-D268-8S-ID DPC-D268E-12S • Please read this manual carefully to ensure safe and correct operation. • Keep this manual well for future reference.
-
Page 2: Table Of Contents
CONTENTS PARTS AND FUNCTIONS ..................3 Part Names......................3 Mounting ......................... 3 Terminal Description ....................4 BASIC FUNCTIONS ....................5 Unlock Operations ....................5 Fisheye Camera ..................... 5 External Motion Detection ..................5 SETUP INSTRUCTIONS ..................6 Functions Setting Up ....................6 Setting Door Station Address ................. -
Page 3: Parts And Functions
PARTS AND FUNCTIONS Part Names [10] [11] [12] [1] Microphone [4] Call button [7] Night view LED [10] Mounting hook [2] UNLOCK indicator [5] Nameplate [8] Camera lens [11] Connection port [3] CALL indicator [6] Speaker [9] Rainy cover [12] External key module Mounting The installation height is suggested to 145~160cm. -
Page 4: Terminal Description
PARTS AND FUNCTIONS 3. Install the name plate. 4. Attach the front panel to the rainy cover. 5. Use the special screwdriver and the screws to fix the panel. Terminal Description Lock Control Jumper 3P Connect Port P L S + L 1 L 2 Main Connect Port Lock Control Jumper:... -
Page 5: Basic Functions
BASIC FUNCTIONS Unlock Operations Unlocking of ID Card When the registered user card has been shown to ID card window, the UNLOCK indicator lights up, the buzzer sounds,and the electric door strike is unlocked. • If show the authorized user card,the buzzer will sound of beep+,and the UNLOCK indicator will light up. -
Page 6: Setup Instructions
SETUP INSTRUCTIONS Functions Setting Up This section explains the settings of each function, please refer to the following table: To perform the settings for the function LED_UNLOCK you want,you should move away the metal LED_CALL front panel. Please refer to the sketch KEY_SET KEY_4 map. -
Page 7: Setting Door Station Address
SETUP INSTRUCTIONS Setting Door Station Address Total 4 addresses can be configured. It can be modified either before or after installation. 0 is default, to change the setting, please follow the steps: ID=0,1 door station ID=1,2 door station ID=2,3 door station ID=3,4 door station In standby mode, press... - Page 8 SETUP INSTRUCTIONS Each call button will respond different addresses when set in different calling mode. Refer to the followings for more informations. 1.Standard calling mode(Address range 01-08 by default) Call buttonA: call the monitor with address 01 by default. Call buttonB: call the monitor with address 02 by default. RF CARD Call buttonC: call the monitor with address 03 by default.
-
Page 9: Setting Camera N/P Standard
SETUP INSTRUCTIONS Setting Camera N/P Standard The standard of the camera can be adjusted at any time, that means the quality of image on screen can be set to differ. P standard is default, to change the setting, please follow the steps: In standby mode, press Press KEY_2 button to set the Press KEY_2 button again... -
Page 10: Setting Prompt Voice Volume
SETUP INSTRUCTIONS Setting Prompt Voice Volume Total 9 level can be configured. It can be modified either before or after installation. 6 is default, to change the setting, please follow the steps: Press KEY_4 button to set the Press KEY_4 button again In standby mode, press KEY_SET button twice. -
Page 11: Setting Unlock Time
SETUP INSTRUCTIONS Setting Unlock Time By default, the unlock time is 1s, but it can be changed,the setting range is 1s~99s. Follow the steps: In standby mode, press Press and hold on KEY_2 KEY_SET button three button. The time you holding times. -
Page 12: Setting Night View Led Illumination Mode
SETUP INSTRUCTIONS Setting Night View LED Illumination Mode There are 3 working modes for night view LED indicator, Normally on,Normally off and Auto. Auto is default, to change the setting, please follow the steps: Press KEY_4 button to set Press KEY_4 button again Press KEY_4 button again In standby mode, press KEY_SET button three... -
Page 13: Setting Image Display Mode
SETUP INSTRUCTIONS Setting Image Display Mode Please know that this setting is only effective for monitors which does not support man- ual operation for pan-tilt. When the monitor being called When door station calls monitor,the image will be displayed on screen,there are 3 modes for im- age displayed, Alternate switching mode,Zoom mode and Full screen mode. -
Page 14: Rainy_Cover Configure
SETUP INSTRUCTIONS Full screen mode: When answering the call, the image will be displayed on Zoom mode for 5 seconds, then switch to Full screen to remind to enter talking status. If set to forbidden mode, there is no image switching reminder at any image display mode. Activated is default, to change the setting, please follow the steps: In standby mode, press Press KEY_3 button to... -
Page 15: Registering Id Card
SETUP INSTRUCTIONS Registering ID Card • Up to 320 user cards can be registered by the door station. • Easy management with LED status and sound hints. • There are two master cards, one MASTER CARD ADD card and one MASTER CARD DELETE card, When registered new master cards, the old master cards are invalid automatically. - Page 16 SETUP INSTRUCTIONS Switching Access Control: The access can be controlled by door station or DPA-D2-ACC,so it’s available to switch the access function. Show the master card of MASTER CARD DELETE again to switch as a door station access control. UNLOCK Indicator:OFF CALL Indicator:OFF Show the master card of Show the master card of...
-
Page 17: Restore To Default
SETUP INSTRUCTIONS Deleting User Cards: Show the master card of Show user cards to be Show the master card of MASTER CARD DELETE to deleted in sequence. MASTER CARD DELETE ID card window in standby. again to exit. UNLOCK Indicator:ON UNLOCK Indicator:Blink one time UNLOCK Indicator:OFF CALL Indicator:OFF... -
Page 18: Wiring
WIRING Connecting Electric Lock Door Lock Controlled with Internal Power 1 2 3 1.Electronic lock of Power-on-to-unlock type should be used. Jumper position on 2&3 2.The door lock is limited to 12V, and hold- ing current must be less than 250mA. PL S+ S- 3.The jumper should be placed on position 2 and 3 before connecting. -
Page 19: As The Villa System Door Stations
WIRING As The Villa System Door Stations door station door station door station door station ID=0 ID=1 ID=2 ID=3 RF CARD RF CARD RF CARD RF CARD L1 L2 PL S+ S- L1 L2 PL S+ S- L1 L2 PL S+ S- L1 L2 PL S+ S- Impedance switch... -
Page 20: As The Apartment System Door Stations
WIRING As The Apartment System Door Stations NEXT NEXT DBC4A1 DBC4A1 A B C D A B C D PC6A PC6A DBC4A1 DBC4A1 BUS(IM) BUS(DS) BUS(IM) BUS(DS) PC6A BUS(IM) BUS(DS) RF CARD RF CARD RF CARD • Door stations were configured as the apartment system door stations. •... -
Page 21: Appendix
APPENDIX Precautions • Please clean the unit with soft cotton cloth, don't use the organic impregnant or chemical clean agent. If necessary, please use a little pure water or dilute soap water to clean the dust. • The unit is weather resistant. However do not spray high pressure water on access control keypad directly. -
Page 22: Cables And Requirments
APPENDIX Cables and Requirments The maximum distance of the wiring is limited in the D2 system. Using different cables may also affect the maximum distance which the system can reach. Basic IN-OUT Wiring Mode Cable and distance(unit:m) Cable Usage ≤2 IM ≤16 IM Twisted cable 2x0.75mm Twisted cable 2x1mm... - Page 23 APPENDIX Star Topology Wiring Mode With DBC4A1 DBC4A1 PC6A Cable and distance(unit:m) Cable Usage Twisted cable 2x0.75mm Twisted cable 2x1mm RF CARD -23-...
- Page 24 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
