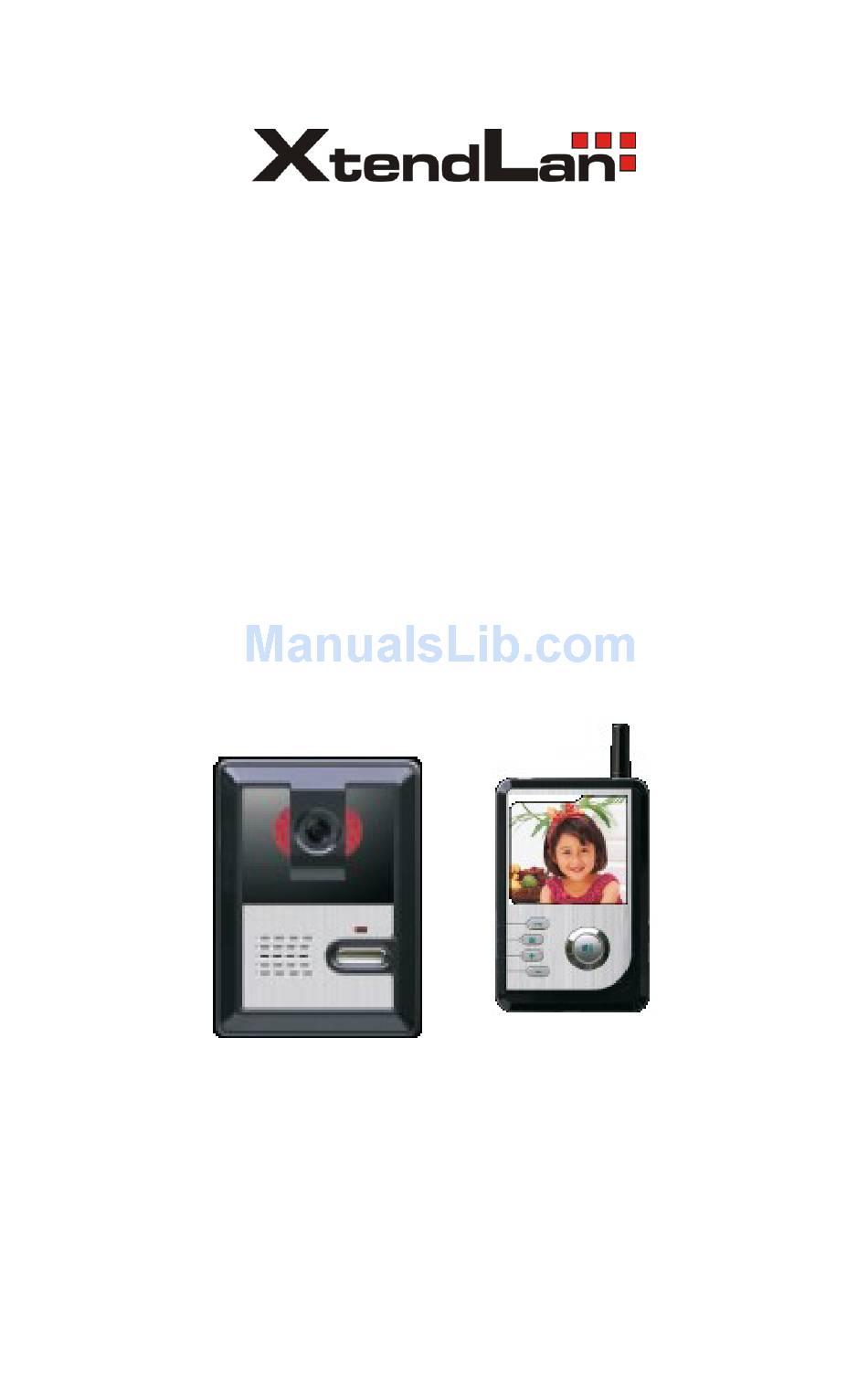

- Page 1 DPK-W100 Wireless colour video doorphone User manual...
-
Page 2: Table Of Contents
Contents Features……………………………………………………………………1 Components checklist……………………………………………………1 Products description………………………………………………………2 Cradle……………………………………………………………………… 3 Charger fixing procedure…………………………………………………4 Button description…………………………………………………………5 ID NO. display…………………………………………………………… 5 Coding………………………………………………………………………5 Receive code………………………………………………………………6 Code clearing………………………………………………………………7 Setting of ring tone………………………………………………………7 rightness adjustment …………………………………………………8 Surveillance…………………………………………………………………8 Basic operation ……………………………………………………………9 Night-vision operation…………………………………………………11 Unlocking time setting…………………………………………………11 Installation………………………………………………………………12 Lock connection…………………………………………………………13 Technical specifications…... -
Page 3: Features
Features ● Wireless colour video doorphone ● Mobile handset with 2.4 TFT-LCD screen ● Identify and screen callers ● Unlock doors remotely for visitors ● Range in free field 300 meters ● 12 selectable ringtones ● Handset to handset communication (Paging) ●... -
Page 4: Products Description
Products description Speaker 2.4G antenna Status indicator ON/OFF 2.4 inch LCD Code clearing Unlock Reset Monitor Brightness+ Answer Brightness- Microphone Microphone Camera Status indicator Speaker Call... -
Page 5: Cradle
Cradle 1. Fixed on the desk 2. Fixed on the wall... -
Page 6: Charger Fixing Procedure
Charger fixing procedure... -
Page 7: Button Description
Button description “ON/OFF”button: It is used to power on/power off of wireless handset monitor. “ ”: Is used to:a) answer the calls when visitors press the call button in outdoor call station; b) as the confirmation button when performing the ringing tone selection; c) as the coding button when carrying out coding between the components. -
Page 8: Receive Code
letters “Configure code”, then release the buttons and it will enter the coding status. 2).At this time, press the call button in outdoor camera when it is in standby status until the red indicator remains lit and creates two sounds “Di Di ”, then release the button and it will enter the coding status. -
Page 9: Code Clearing
you hear the two “Di Di” tones. Then release the call button in outdoor call station (Do not release until you hear the two Di Di tones ). Then press the “ ” button in the handset at this time. If it shows “successed”... -
Page 10: Setting Of Ring Tone
Outdoor call station: Press the code-clear button (the code-clear button is in the back of outdoor call station, for details, please refer to the lock connection section. Its icon is . ) and it creates one “Di” sound. This means that code clearing is successful. -
Page 11: Basic Operation
status, then the screen will display “monitoring 01”. 2).If the outdoor call station receives a signal within 1S, then it will display the 1st outdoor station; if not receiving the signal within 4S, then it will auto-exit the monitor status. 3).In monitor status, press the “... - Page 12 120S. 4).In the process of talking, pressing the “ ” button will operate the relay at the call station which can be connected to operate an electric lock release and allow the visitors enter, the monitor will display “unlock” (If visibility is poor, pressing the “ ”...
-
Page 13: Night-Vision Operation
Handset intercom (Paging): 1).In standby status, if the user presses the “ ” in one handset monitor, then the red indicators will light and enter the call status. The screen will display“ Talking”. 2).a.If there is no response signal with 4S from called handset monitor, after 4 “Di Di Di Di”... -
Page 14: Installation
tone , release the call button and the unlocking time will now be set at 1.8 seconds 2).The 2nd unlocking time is 4S. With power disconnected, press and hold the call button on call station, and connect power to this call station. -
Page 15: Lock Connection
Lock connection 1).Power-on unlocking diagram AC90~264V Unlock input Unlock relay output DC5V 50/60HZ Unlock adaptor DC12V/3A Input: AC90~264V Output： DC5V/1A Power adaptor Power on unlock Lock interface Electronic lock EX I T 2).Power-off unlocking diagram AC90~264V 50/60hz DC5V Exit input Unlock relay output Power adaptor DC12V/3A Input... -
Page 16: Technical Specifications
Technical specifications Door Station Image Sensor 1/4" CMOS 0 Lu (IR on) Min. Illumination Power DC5V/1A 20mA~30mA (standby), 300mA (operation) Current 12-digits digital audio signal, DAC interface, Audio Input 8Kbps sampling speed rate Image Compression MJPEG compression Transmission Power 16~20dBm Ringing tone 12 options selectable Dimension... -
Page 17: Trouble Shooting
Trouble shooting Checking Debug Malfunction Press the ON/OFF button Check by pressing the ON/OFF button fully Will not Check whether the power of Charge the battery power on lion battery is enough or not Check the connection of Connect to the power power adaptor adaptor Check whether the socket in... -
Page 18: Propagation Of Radio Waves
Propagation of radio waves The radio coverage quality, and therefore the performance of the doorphone, may be altered by obstacles located between the door station and the interior handset unit: walls, partitions, slabs, armoured doors or lift shaft comprising metallic components. (Furthermore, radio coverage may also be affected by electrical or electromagnetic interference). -
Page 19: Notes
Notes 1).Handset monitors should be situated away from heat sources and water. 2).Products should be opened only by the professional personnel. If there is a malfunction please contact us or our agents. 3).Handset monitors should be located where there is a good ventilation, dry, dustless and not in direct sunlight.
