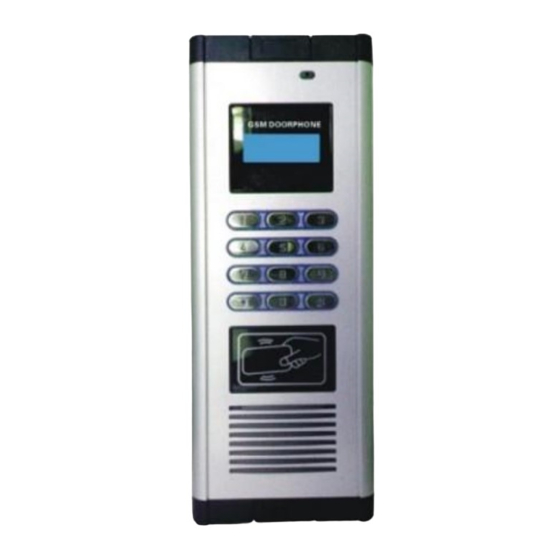

- Page 1 DPC-G100 GSM wireless audio intercom...
- Page 2 1. Features: The GSM wireless audio intercom is integrated with the advantages of wireless audio intercom, remote unlocking from telephone /mobile phone (by the preset 3-digits pin code) and access control (EMID card readers, maximum 999pcs cards).It solves the mess of cable-routing and limited distance of wireless audio signal transmission .No need the in-house handset monitor and your telephone/mobile phone will replace it.
- Page 3 3) Installation instruction: 3.1) Size: Panel size: 325×123×13mm. Mounting size: 295×110×30mm. 3.2) Power supply: DC/AC 12V. Output current is 500mAh (without locks connection); 3.3) Lock connection: Note: If the lock should be powered by 12V, please connect it with ‘Lock+’ and ‘Relay NO’ (Reference the picture above), and put the connectors in pin 2 and pin 3 in the ‘Lock Selector’.
- Page 4 Properties’, then select ‘Hardware’, and click ‘Device Manager’. 4.5) Right-click ‘Prolific USB-to-Serial Comm Port’ in above picture, selects ‘Properties’ to enter ‘Prolific USB-to-Serial Comm Port Properties’ frame, in ‘Port Settings’ frame select ‘Bits per second’ as 38400. (Reference the next picture please) 5) Install PC program and its feature setting：...
- Page 5 6) Load the room number and telephone number to call station via PC. Used for the volume load of room number and telephone number. 6.1) In ‘Door Guard’ frame select ‘New’ in ‘File’ menu to open the form of phone setting.Select the File→New in PC ,open the phone setting list.
- Page 6 8) Changing of system password ,unlocking password and volume： 8.1) System password changing： 8.1.1) Press the * button, input system password and then press # button to enter the system setting status .Meanwhile ,it displays the “System Set”； 8.1.2) Press 1 to enter the system password setting status .Meanwhile it shows “New SYS code”， 8.1.3) Input 6-digits new password and press # button to confirm .Then it will show “Try again”；...
- Page 7 10) Access control setting： 10.1) Press the **22# button，then the call station will switch to the status of access control setting. Meanwhile ,the call station will display GuardCommand。 10.2) Press “#” button to enter into access control setting status (The initial password of access control is 1234).At this time, the call station will create two “DiDi”...
- Page 8 11) Return to default status： In PC software, click the item “Setting→Load Default”, then it will display the letters “Downloadover”.It means that it returns back to default status Note: After returning to default status, the system password, unlocking password will also return to default status .It will also delete all the registered telephone No.
