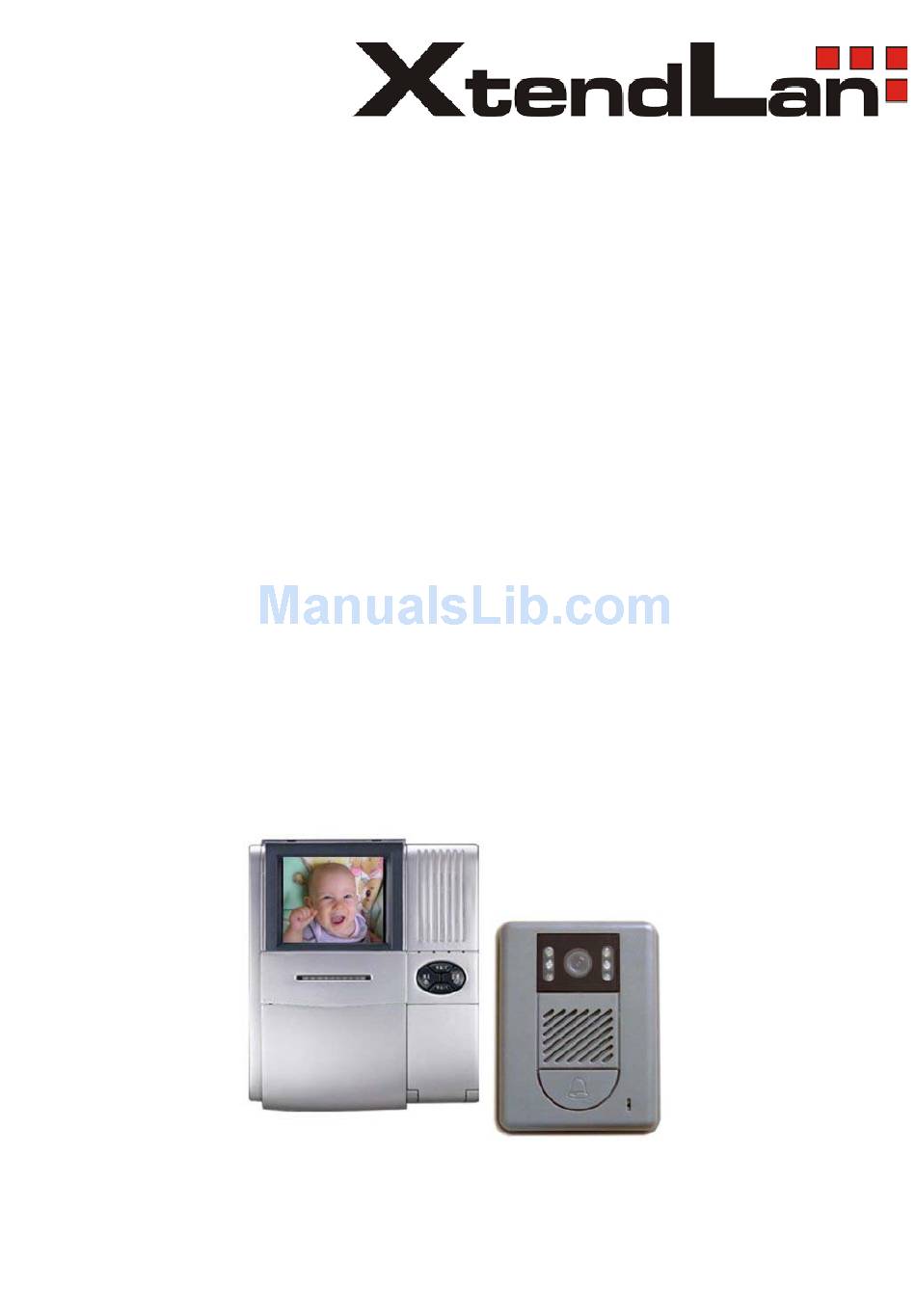

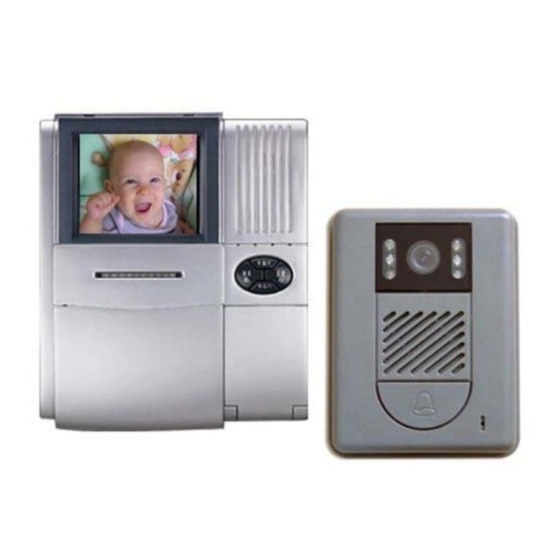

  • Page 1 DPK-242 Single family video intercom 2-wire system User’s Guide...
  • Page 2 DPK-242 User's manual www.xtendlan.com FEATURES ■ SIMPLE 2-WIRE CONNECTION, NO POLARITY ■ 15 CHORD TUNES SELECTABLE ■ DIRECTLY CONNECTING UP TO 4 EXTENDED MONITORS ■ INTERCOM FUNCTION WHEN MULTI MONTIORS INSTALLED ■ LATCH CONNECTED WITH MONITOR...
  • Page 3: Parts And Functions

    DPK-242 User's manual www.xtendlan.com PARTS AND FUNCTIONS 1.1 Indoor Monitor 1. Screen 6. Outdoor Station Connection (Main) 2. Blue LED Indicator 7. Image adjustment 3. Extended Monitor Connection 8. Cover 4. Function Buttons 9. Wiring Terminals for Extended Monitors 5. DC-IN socket 10.
  • Page 4 DPK-242 User's manual www.xtendlan.com 1.2 Outdoor Station W1 W2 1. Camera 5. Connection Terminals 2. Speaker 6. Mounting hood 3. Call Button 4. Microphone Mount Instruction:  Fix mounting bracket with screw at recommended height (normally at 145~160CM, and 4X25 self- taping screw are recommended).
  • Page 5: Operation Instructions

    DPK-242 User's manual www.xtendlan.com 2. Operation Instructions ■ Operation for Basic Video Doorphone When visitor presses the Call Button on the Outdoor Station, the Monitor rings, at the same time, the screen displays the visitor image. When press TALK Button, you can talk with the visitors for 90 seconds; During the talk state, press TALK again to end.
  • Page 6: System Wiring

    DPK-242 User's manual www.xtendlan.com SYSTEM WIRING 3.1. Connecting Outdoor Station It’s recommended to use RVV 2x0.5mm non-shielded Cable to connect Outdoor station. 3.2. Connecting Electronic Latch (Dry contact mode) POWER SUPPLY 2 LB Monitor Note 1: Latch is connected with Monitor.
  • Page 7 DPK-242 User's manual www.xtendlan.com 3.3 Connection of Extended Monitors Indoor Monitor is capable of connecting multi extended Monitors. First, connect the cable in the mount bracket, then connects the JS-VP port with the monitor by using 4 core cable (which is Interconnection Cable in following diagram).
  • Page 8 DPK-242 User's manual www.xtendlan.com 4. PRECAUTIONS All parts should be protected from violence vibration. And not allow be impacting, knocking and dropping. For clean the Lens& Screen, using hands or wet cloth is forbidden. Please do the cleanness with soft cotton cloth, please do not use the organic or chemical clean impregnate.
