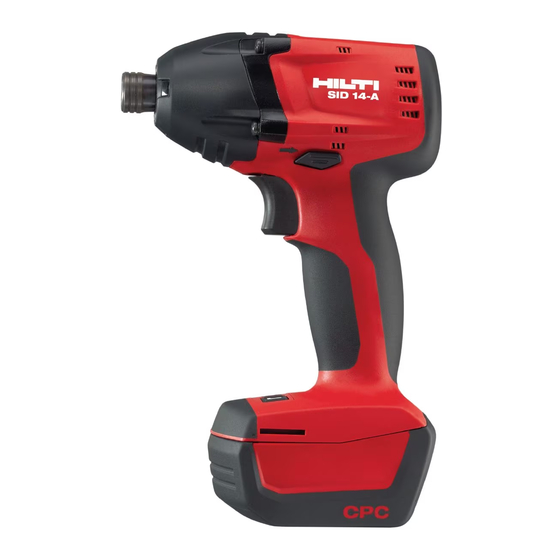

Hilti SID 14-A Original Operating Instructions
Hide thumbs
Also See for SID 14-A:
- Original operating instructions (240 pages) ,
- Operating instructions manual (28 pages) ,
- Manual (24 pages)
Related Manuals for Hilti SID 14-A
Summary of Contents for Hilti SID 14-A
- Page 1 SID 14A SID 18A SIW 14A SIW 18A Original operating instructions Mode d'emploi original Manual de instrucciones original Printed: 16.06.2015 | Doc-Nr: PUB / 5070695 / 000 / 03...
- Page 2 Printed: 16.06.2015 | Doc-Nr: PUB / 5070695 / 000 / 03...
- Page 3 Printed: 16.06.2015 | Doc-Nr: PUB / 5070695 / 000 / 03...
- Page 4 Printed: 16.06.2015 | Doc-Nr: PUB / 5070695 / 000 / 03...
- Page 5 Printed: 16.06.2015 | Doc-Nr: PUB / 5070695 / 000 / 03...
- Page 6 ▶ Make a note of this data in the following table and always refer to it when making an enquiry to your Hilti representative or Hilti Service Center. Product information...
- Page 7 2 Safety 2.1 Warnings The purpose of warnings Warnings alert persons to hazards that occur when handling or using the product. Description of the key words used DANGER Draws attention to imminent danger that will lead to serious personal injury or fatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality.
- Page 8 ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 9 ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 10 2.2.2 Warnings for drivers ▶ Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. 2.2.3 Additional safety instructions Personal safety ▶...
- Page 11 ▶ Check that accessory tools are compatible with the power tool’s chuck/drive system and that they are fitted and secured correctly. ▶ Make sure that the screws or bolts and the workpiece are suitable for the level of torque generated by the power tool. Excessive torque may overstress, stretch or strip the screws/bolts or damage the workpiece, thus leading to hazardous situations.
- Page 12 ▶ Do not use the battery as a power source for other unspecified appliances. ▶ Observe the national health and safety requirements. ▶ To reduce the risk of injury, use only genuine Hilti tools and accessories. ▶ To power the impact screwdriver/wrench, use a rechargeable battery of a type approved by Hilti and a charger from the C4/36 series.
- Page 13 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by us for use with the product can be found at your local Hilti Center or online at: www.hilti.com 4 Technical data 4.1 Impact screwdriver/wrench...
- Page 14 SID 18A SIW 18A Rated voltage 21.6 V 21.6 V Weight (including battery and 3.3 lb 3.3 lb chuck) (1.5 kg) (1.5 kg) Rated speed un- Setting I 0 Hz … 16.7 Hz 0 Hz … 16.7 Hz der no load (0 rpm …...
- Page 15 SIW 14A SIW 18A 1/2″ square 3/8″ square 1/2″ square 3/8″ square drive with drive with drive with drive with ball-notch locking ring ball-notch locking ring retention retention Setting I 59 ft⋅lb 48 ft⋅lb 66 ft⋅lb 55 ft⋅lb (80 N⋅m) (65 N⋅m) (90 N⋅m) (75 N⋅m)
- Page 16 WARNING Electrical hazards! Risk of short circuiting. ▶ Before inserting the battery, check to ensure that the battery terminals and the contacts in the impact screwdriver are free from foreign objects. WARNING Risk of injury! Hazard presented by a falling battery. ▶...
- Page 17 CAUTION Risk of injury. The accessory tool may be hot or have sharp edges. ▶ Wear protective gloves when using the power tool and when changing accessory tools. 1. Set the forward/reverse switch to the middle position or remove the battery from the power tool.
- Page 18 ▶ Press the torque selector button as many times as necessary until the desired torque setting is indicated to the left of the button. SID 14A SID 18A Model SID … (SID 14A OR SID 18A) → Seite 9 SIW 14A SIW 18A Model SIW …...
- Page 19 ▶ To achieve maximum battery life, stop drawing power from the battery as soon as a significant drop in the performance of the power tool is noticed. ▶ Charge the batteries using the Hilti chargers approved for use with Li-ion batteries.
- Page 20 You should, however, soon replace the battery with a new one. 7 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. Trouble or fault Possible cause Action to be taken...
- Page 21 The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appli- ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 22 Hilti = registered trademark of Hilti Corp., Schaan Pos. 3 | 2015 Printed: 16.06.2015 | Doc-Nr: PUB / 5070695 / 000 / 03...
