• Finisher shift tray

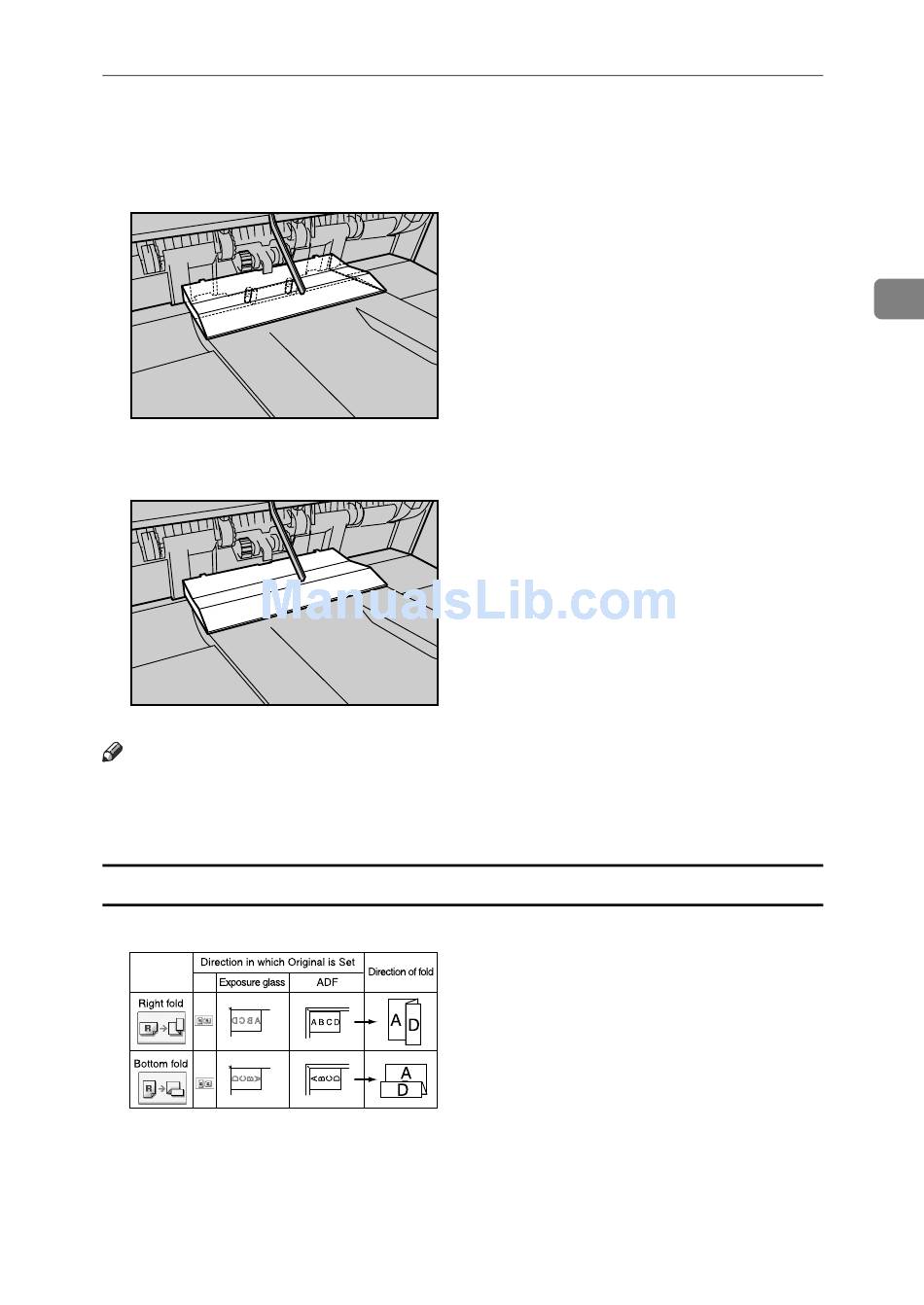

Open and close the front cover to reset the machine. Fit the hooks of the Z-
fold support tray into the holes in the finisher's shift tray while keeping the
front cover open.
Close the front cover of the finisher. The Z-fold support tray is lowered to
complete the installation.
Note
❒ Remove the Z-fold support tray when outputting prints to the finisher's shift
tray without using the Z-fold function. If you leave the Z-fold support tray in
place, prints are not stacked properly.

Z-fold positions and Z-folding copies

The above table shows Z-fold positions. The orientation of the paper does not in-
dicate orientation of delivery.
ANO041S
ANO068S
ANP021S
Copier Functions
2
69
