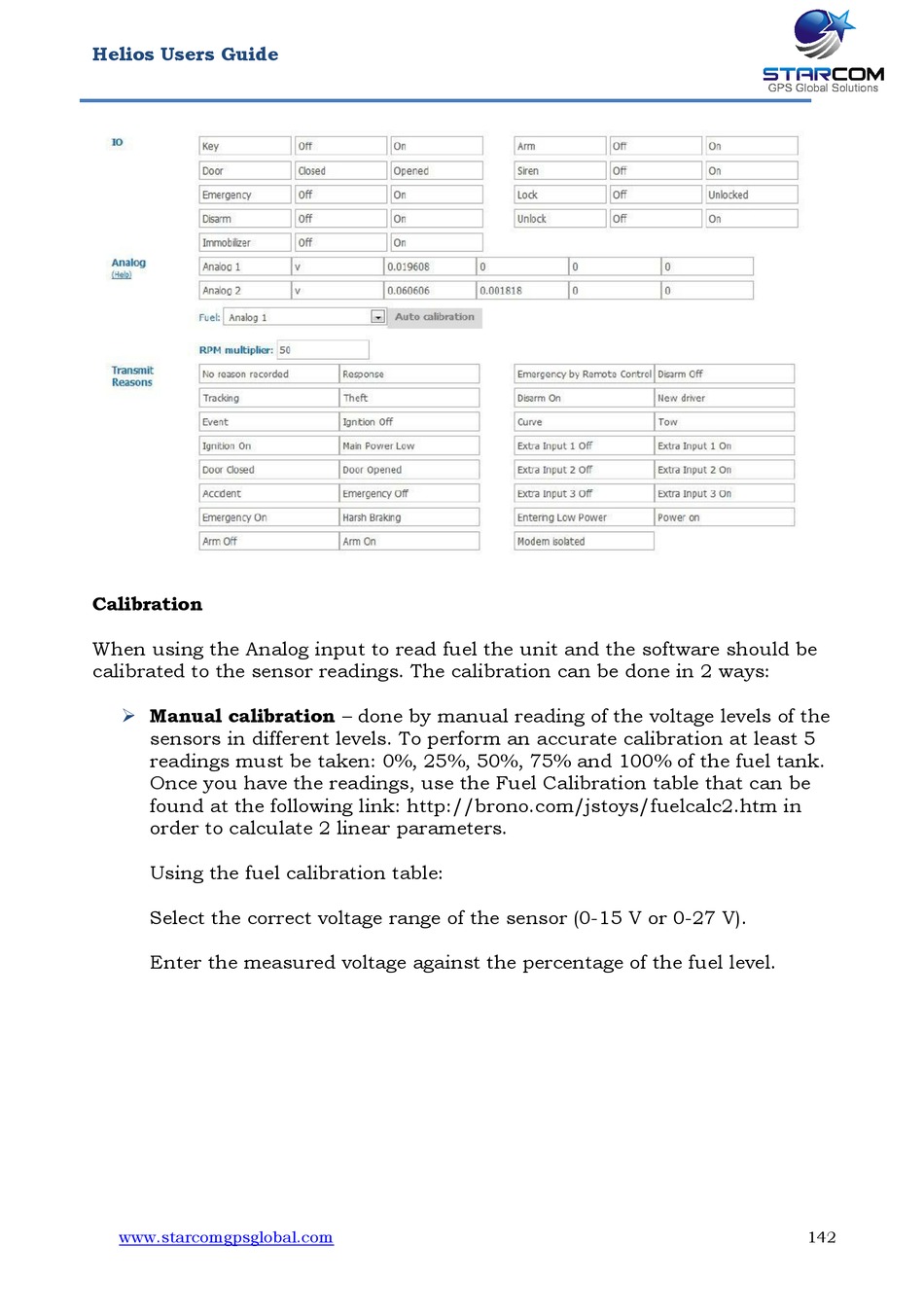

Helios Users Guide
Calibration
When using the Analog input to read fuel the unit and the software should be
calibrated to the sensor readings. The calibration can be done in 2 ways:
Manual calibration – done by manual reading of the voltage levels of the

sensors in different levels. To perform an accurate calibration at least 5
readings must be taken: 0%, 25%, 50%, 75% and 100% of the fuel tank.
Once you have the readings, use the Fuel Calibration table that can be
found at the following link: http://brono.com/jstoys/fuelcalc2.htm in
order to calculate 2 linear parameters.
Using the fuel calibration table:
Select the correct voltage range of the sensor (0-15 V or 0-27 V).
Enter the measured voltage against the percentage of the fuel level.
www.starcomgpsglobal.com 142
