Helios Users Guide

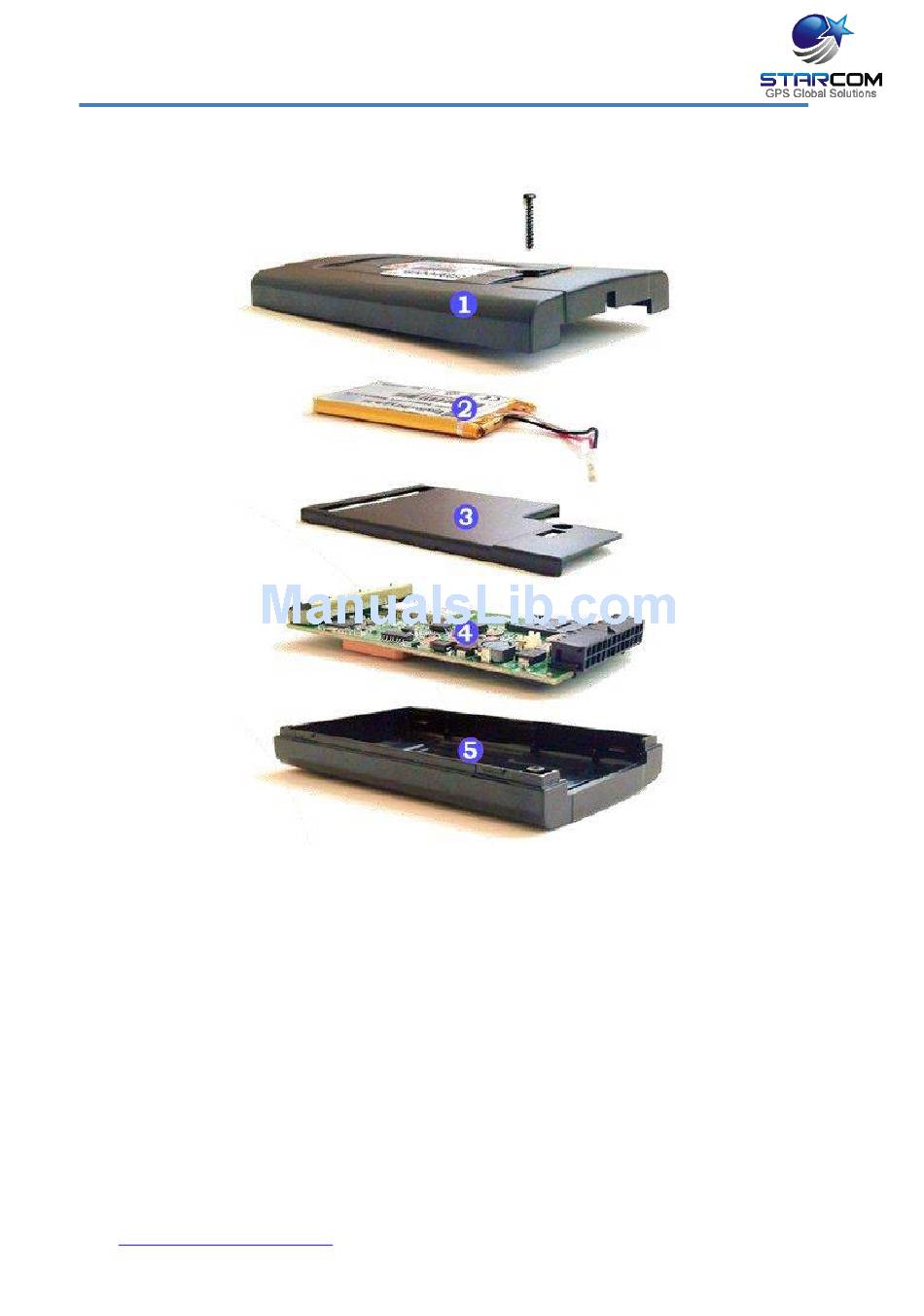

3 Product Descriptions
1. Bottom cover – plastic cover which snaps onto the top cover and is secured
with a screw.
2. Battery – backup battery (optional).
3. Divider – plastic divider which snaps onto the top cover. The backup battery
is placed on top of this divider.
4. Unit board – printed circuit board with electronic components which is
secured to the top cover.
5. Top cover – plastic cover which covers the GPS antenna. This side should be
facing upwards when the unit is installed in the vehicle.
www.starcomgpsglobal.com
12
