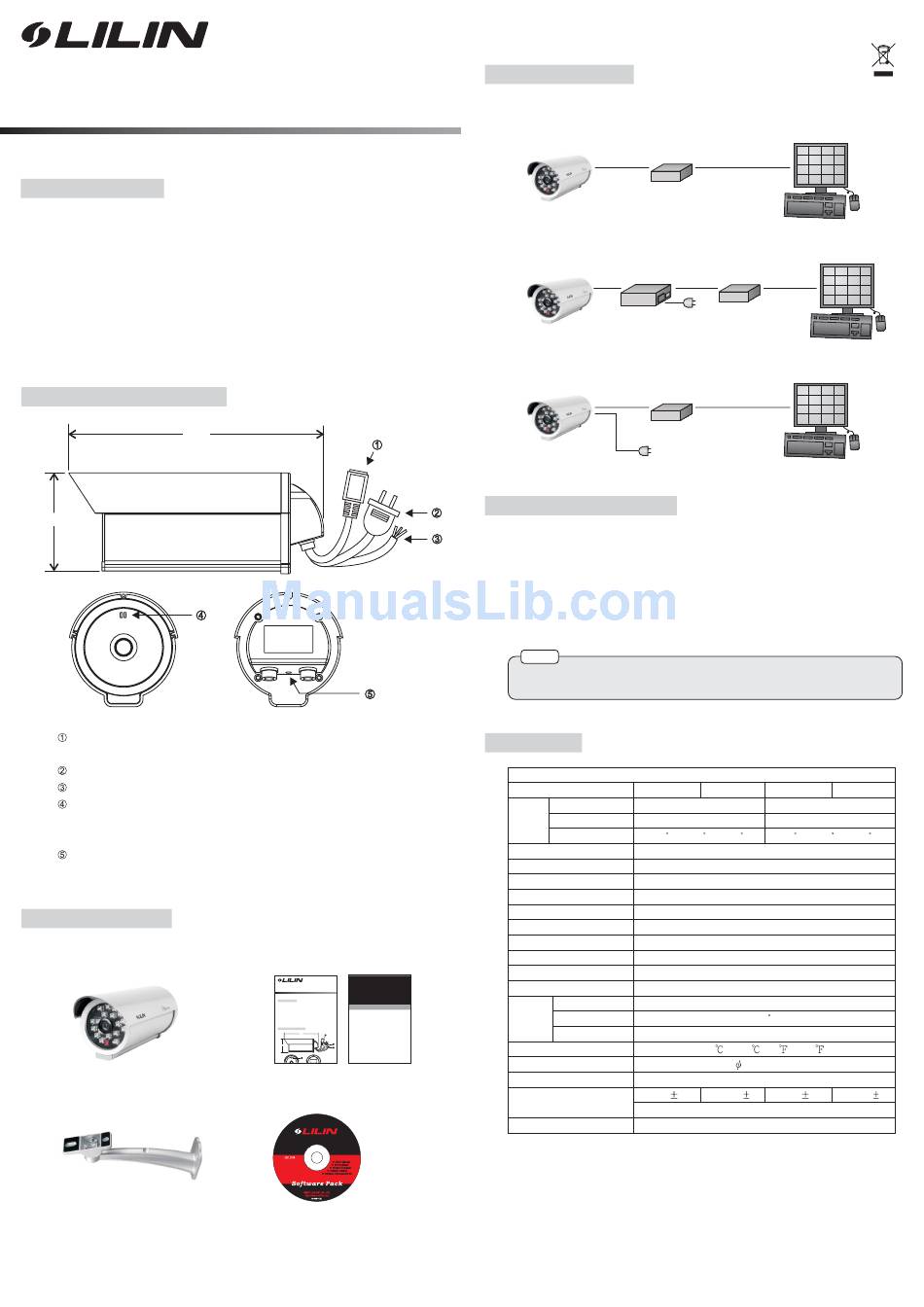

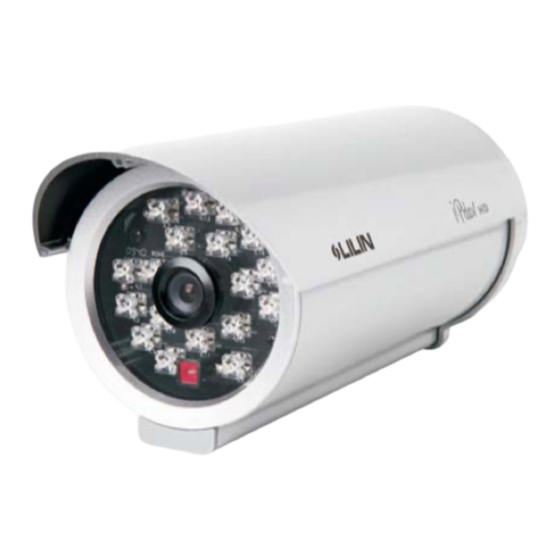

Lilin IPR614ES4.3 Instruction

OUTDOOR D/N CMOS HD IR IP
CAMERA

Executive Summary

IPR614/618ES is an outdoor D/N CMOS HD IR IP camera built-in H.264 AVC
(Advanced Video Coding) video compression.
H.264 AVC video compression engine supports high definition video quality,
720P resolution, bandwidth efficiency with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm functions such as
movement video detection e-mail or FTP. Moreover, IPR614/618ES can do remote
surveillance with Java or iPhone cell phone. The software R&D engineer can use
HTTP protocol(HTTPAPI) to develop related software, and integrate them with
existing application software system.
Part Description & Dimension
235
100

RJ-45 NETWORK CONNECTOR

This network camera support PoE+(25W)
AC100~240V POWER CABLE
AC24V POWER CABLE
NETWORK INDICATOR LEDS
Green (LINK): While cable of network is connecting the LED is light.
Orange (ACT): When data is communicating, the LED is flashed.
RESET KEY
To restore the server to factory default setting.

Product Components

1. OUTDOOR D/N CMOS HD
IR IP Camera
3. Bracket
Instruction
Unit: mm
2. Instruction Manual
OUTDOOR D/N CMOS HD IR IP
CAMERA
H.264 HD IP Cameras
Instruction
Executive Summary
IPR614/618ES is an outdoor D/N CMOS HD IR IP camera built-in H.264 AVC
(Advanced Video Coding) video compression.
H.264 AVC video compression engine supports high definition video quality,
720P resolution, bandwidth efficiency with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm functions such as
external alarm or movement video detection e-mail or FTP. Moreover, IPR614/
618ES can do remote surveillance with Java or iPhone cell phone. The software
R&D engineer can use HTTP protocol(HTTPAPI) to develop related software,
and integrate them with existing application software system.
IPD552EX2.2/4.2 N/P
Part Description & Dimension
235 INSTRUCTION MANUAL
100
4. CD Software Pack

System Architectures

For connecting IPR614/618ES to the network, please follow one of the system
architectures:
(1). Hardware Installation using a PoE+(25W) Switch.
LAN
PoE+(25W) Switch
IPR614/618ES
(2). Hardware Installation using a PoE+(25W) Power Injector and non-PoE Switch.
LAN
PoE+(25W)
Power Injector
IPR614/618ES
(2). Hardware Installation using a PoE+(25W) Power Injector and non-PoE Switch.
LAN
Non-PoE Switch
AC24V or AC100~240V
IPR614/618ES

Emergency Factory Default

To restore the server to factory default settings, please:
1. Hold Reset Key for 10 seconds.
2. The network LED lights turn off after about 20 seconds, then lit.
3. The server board reboots itself.
4. Using IPScan scanning for the IP address of the IP device.
5. Launch Internet browser for the IP address of the IP device.
6. Type default username "admin" and password "pass" for enter web interface of the IP
device.
NOTE
For convenient purpose, IP address resets to default IP address, 192.168.0.200, after
performing Load Default operation.

Specifications

OUTDOOR D/N CMOS HD IR IP CAMERA
IPR614ES4.3
Model No.
Focal Length
Lens Iris
Angle of View 49.8 (H), 36.8 (V), 63.6 (D)
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Infrared Cut Filter
Min. Illumination Color: 3Lux at F1.8 / Mono: 0.6Lux at F1.8 / 0 Lux with IR
White Balance Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2
Back Light Compensation
Electrical Shutter
IP Rating
Peak Wavelength
Infrared
Beam Spread
LED
Radiant Distance
Operating Temperature
Dimension
Weight
AC24V
Power Input Voltage
Power Consumption
Design and specification are subject to change without notice.
66-IPR614CSE-1
LAN / Internet
PC
LAN LAN / Internet
AC
Non-PoE Switch
PC
LAN / Internet
PC
IPR618ES4.3 IPR614ES6 IPR618ES6
4.3mm 6mm
F1.8 F1.8
35.8 (H), 26.5 (V), 45.7 (D)
1/4" Progressive scan CMOS sensor
1280(H) x 800(V) = 1,024,000(pixel)
3.88mm(H) x 2.43mm(V)
Progressive Scan
Auto / Schedule / Day(Color) / Night(Mono)
Auto
1/30(25)s ~ 1/20,000s
IP66
850nm
20
25M
-10 ~ +50 (14 ~ 122 )
100 x 235mm
1600g
10% AC100~240V 10% AC24V 10% AC100~240V 10%
PoE+ (IEEE 802.3at compliant)
12W (PoE+, 13.5W)
