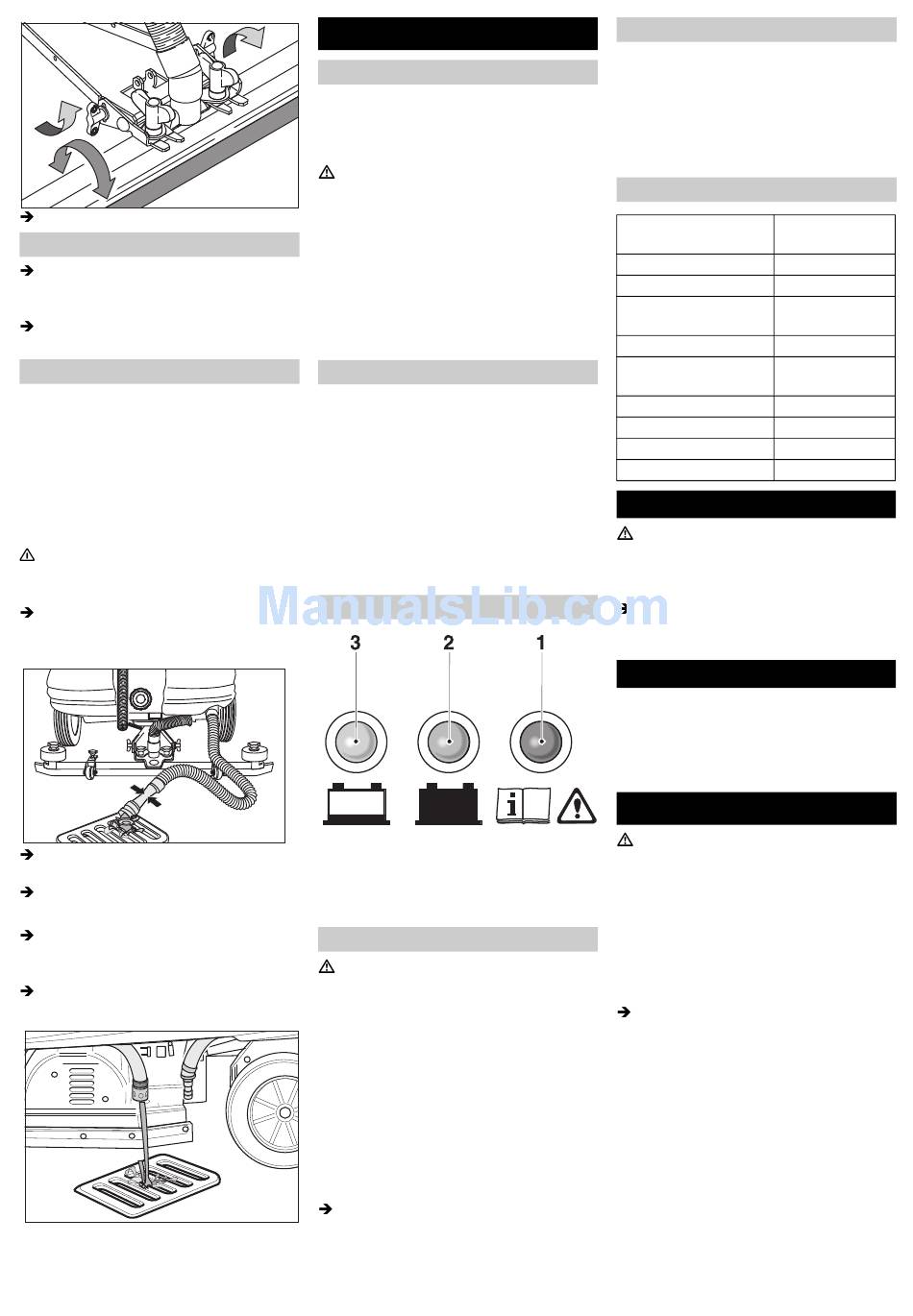

Tighten the wing nuts.
Adjust wiping flaps
Adjust the wiper flaps by turning the ad-
justment wheel so that they touch the
floor.
Turn the adjustment wheel an addition-
al turn toward the bottom.
Empty tanks.
Drain off dirt water
Note
Overflow dirt water tank. If the dirt water
tank is full, the suction turbine switches off
and the indicator lamp "dirt water tank full"
begins to blink. All cleaning programs with
suction are blocked for one minute. Empty
the dirt water reservoir.
Warning
Please observe the local provisions regard-
ing the wastewater treatment.
Take the water discharge hose from the
support and lower above a suited col-
lection device.
Let off dirt water by opening the dosage
device at the discharge hose.
Rinse the dirt water tank with clear water.
Drain off clean water
Remove the suction hose coupling for
draining off the fresh water and hold it
over a suitable container.
Select the cleaning program "manual
dry" via the program switch.

Charger, pack model

Safety instructions

Please read and comply with these instruc-
tions prior to the initial operation of your
charger Please follow the instructions of
the battery manufacturer.
Danger
– Keep children away from batteries and
charger.
– Do not change the charger plug.
– Use the charger only with the recom-
mended batteries. If you connect wrong
batteries, the batteries may get over-
heated, boiled and can explode.
– The charger may only be used in the
assembly position indicated by the fac-
tory.
Proper use
Use this charger only as directed in these
operating instructions.
– The charger should only be used for
charging lead-operated batteries that
are in perfect condition.
– The charger may only be used for main-
tenance-free lead batteries with a volt-
age of 24 Volt.
– The charger may only be used if the
mains supply has the following fuses:
Safety fuse with at least 10 A gL or auto-
matic cut-out of 10 A (B or C property).
Indicator lamps
1 red LED lights up = Problem with charg-
er/ battery; inform Customer Service
2 green LED lights up = battery is full
3 yellow LED lights up = battery is being
charged
Start up
Danger
Risk of explosion!
– Do not operate the batteries in the open, on
traffic routes, in explosion-hazard rooms or
in rooms with power-conductible dust.
– The battery charging process can give rise
to explosive substances. Do not smoke in
the vicinity of batteries and charger. Avoid
formation of flames and sparks.
– Do not block the air slits of the appliance
while charging the batteries. Always keep
the hood of the cleaning machine open dur-
ing the charging process.
– Do not spray the charger with water.
Connect the mains plug of the charger
to a earthed socket of 230 V mains sup-
ply. The charging process starts auto-
matically.
8
-
EN
Maintenance
The charger is maintenance-free. Howev-
er, as some parts are prone to wear and
tear, we recommend that you get the
charger checked regularly by a technician.
The appliance may only be opened and re-
paired by an electro-technician. Please
contact your Customer Service agent.

Specifications

Mains voltage
Output voltage
Output current
Charging feature
Ambient temperature
Air humidity, non-con-
densing
Weight
Type of protection
Protective class
Dimensions (h x b x d) 85x219x308 mm

Transport

Danger
Risk of injury! When loading or unloading
the machine, it may only be operated on
gradients of max. 10%. Drive slowly.
If you want to transport the machine on
a vehicle secure it from slipping using
belts/ ropes.

Storing the device

Caution
Risk of injury and damage! Note the weight
of the appliance in case of storage.
This appliance must only be stored in inte-
rior rooms.

Maintenance and care

Danger
Risk of injury! Before carrying out any tasks
on the machine, set the main key to "0" and
remove it. Pull out the battery plug.
Note
Suction turbine will continue to run for a
while after switch-off. Carry out mainte-
nance tasks only after the suction turbine
has come to a halt.
Drain and dispose of the dirt water and
the residual fresh water.
220-230 V,
48...63 Hz
24 V
max. 50 A
IUIa with reten-
tion load
0-40 °C
0-90%
5,5 kg
IP 20
I
