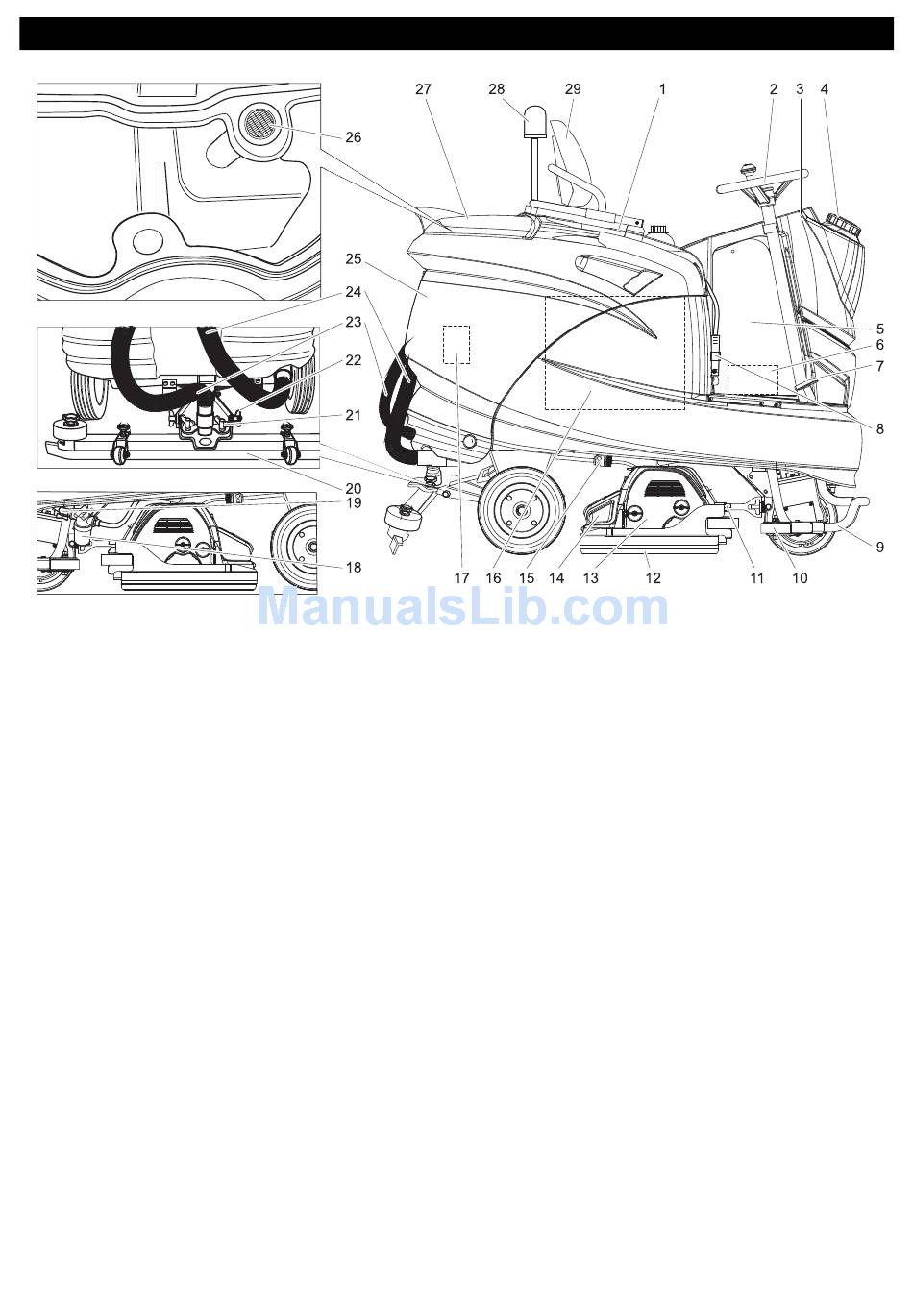

Device elements

1 Seat (with seat contact button)
2 Steering wheel
3 Detergent bottle (only Dose model)
4 Fresh water tank lock
5 Electronics/control
6 Fuses (underneath the cover)
7 Drive pedal
8 Battery plug/ Emergency-stop
9 Bumper at the rear
10 Scraper roller
11 Adjustment wheel for wiping flap *
12 Wiping flap *
13 Cleaning head *
14 Waste container (only with R cleaning
head) *
15 Hose coupling for draining fresh water
16 Battery
17 Suction turbine
18 Fresh water filter
19 Ball tap
20 Vacuum bar *
21 Wing nuts for fastening the vacuum bar
22 Wing nuts for tilting the vacuum bar
23 Suction hose
24 Dirt water discharge hose
25 Dirt water reservoir
26 Fluff filter
27 Cover dirt water reservoir
28 Rotating beacon *
29 Seat back, adjustable
* not included in the delivery
2
-
EN 19
