Operator Console; Colour Coding - Kärcher B 140 R Manual

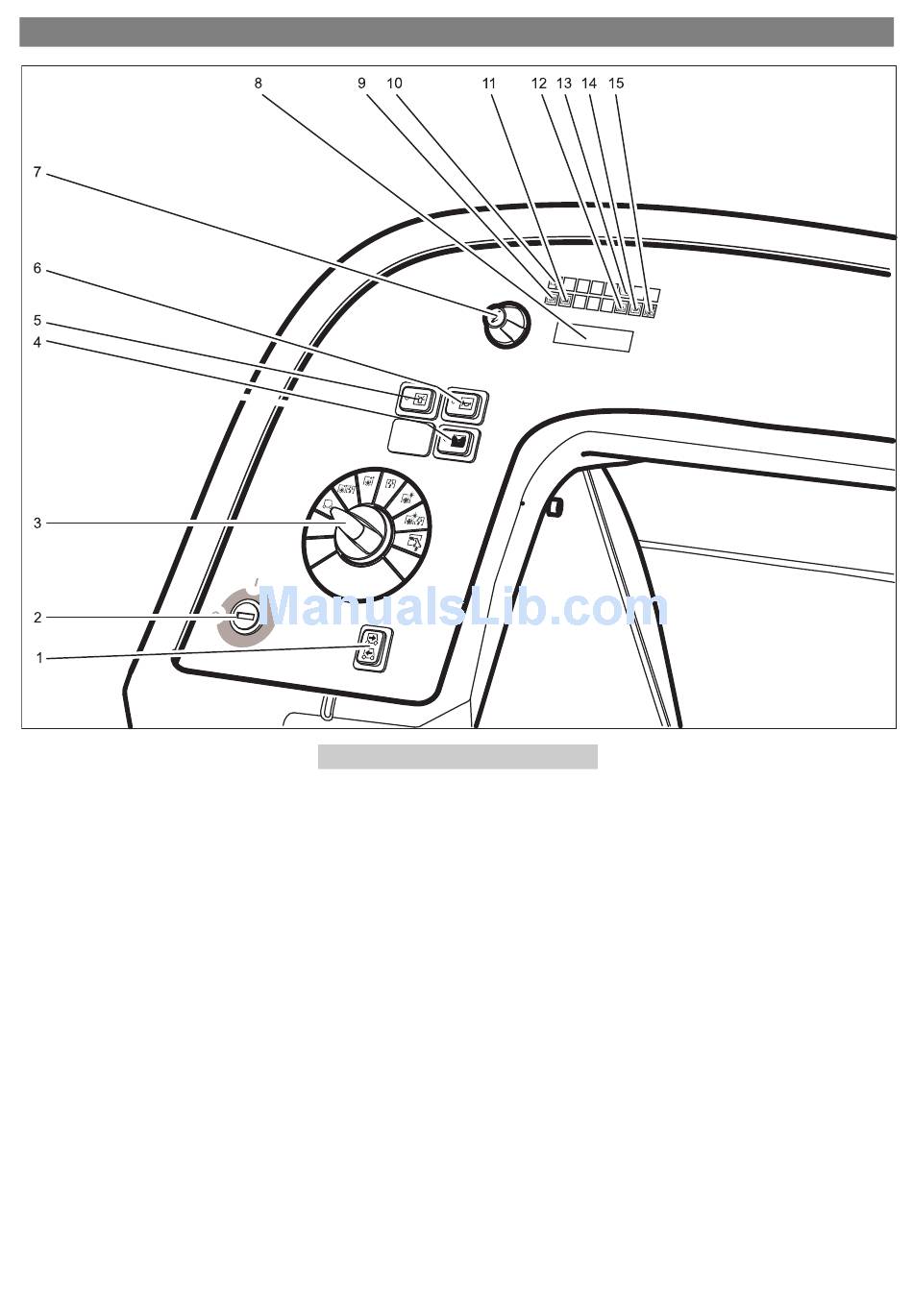

1 Driving direction switch
2 Key switch
3 Programme switch
4 Switch for detergent dosing (optional)
5 Overall lamp button (optional)
6 Horn
7 Info button
8 Display
9 Indicator lamp - automatic immobilizing
brake active
10 Indicator lamp - manual cleaning pro-
gram active
11 Indicator lamp - battery monitoring
12 Indicator lamp - fault
13 Indicator lamp - service
14 Indicator lamp - Dirt water tank full
15 Indicator lamp - brush overload
20

Operator console

Colour coding

– The operating elements for the cleaning
process are yellow.
– The controls for the maintenance and
service are light gray.
