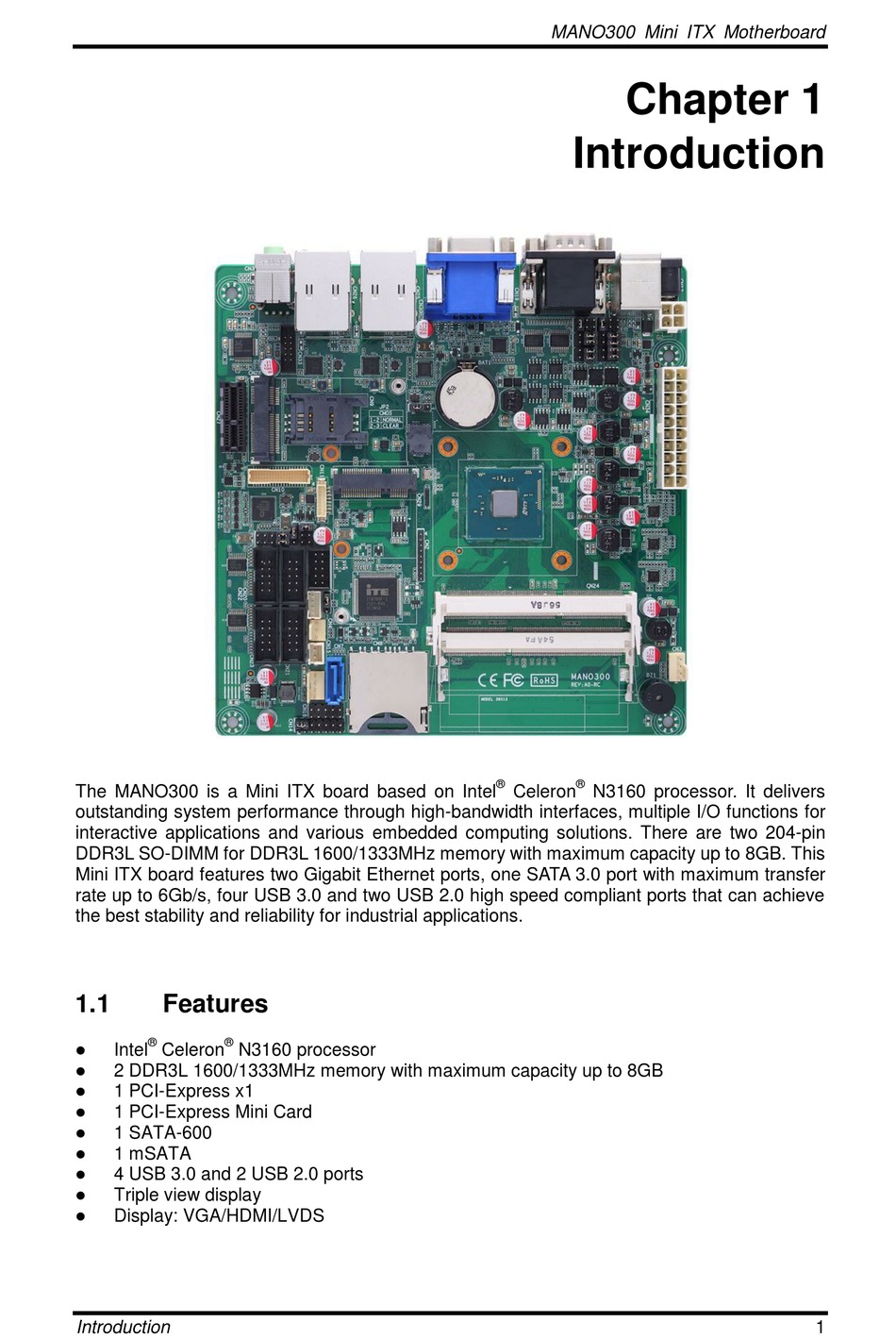

The MANO300 is a Mini ITX board based on Intel
outstanding system performance through high-bandwidth interfaces, multiple I/O functions for
interactive applications and various embedded computing solutions. There are two 204-pin
DDR3L SO-DIMM for DDR3L 1600/1333MHz memory with maximum capacity up to 8GB. This
Mini ITX board features two Gigabit Ethernet ports, one SATA 3.0 port with maximum transfer
rate up to 6Gb/s, four USB 3.0 and two USB 2.0 high speed compliant ports that can achieve
the best stability and reliability for industrial applications.
1.1

Features

® ®
 Intel Celeron N3160 processor
 2 DDR3L 1600/1333MHz memory with maximum capacity up to 8GB
 1 PCI-Express x1

1 PCI-Express Mini Card
 1 SATA-600
 1 mSATA
 4 USB 3.0 and 2 USB 2.0 ports
 Triple view display
 Display: VGA/HDMI/LVDS
Introduction
MANO300 Mini ITX Motherboard
Chapter 1
Introduction
® ®
Celeron N3160 processor. It delivers
