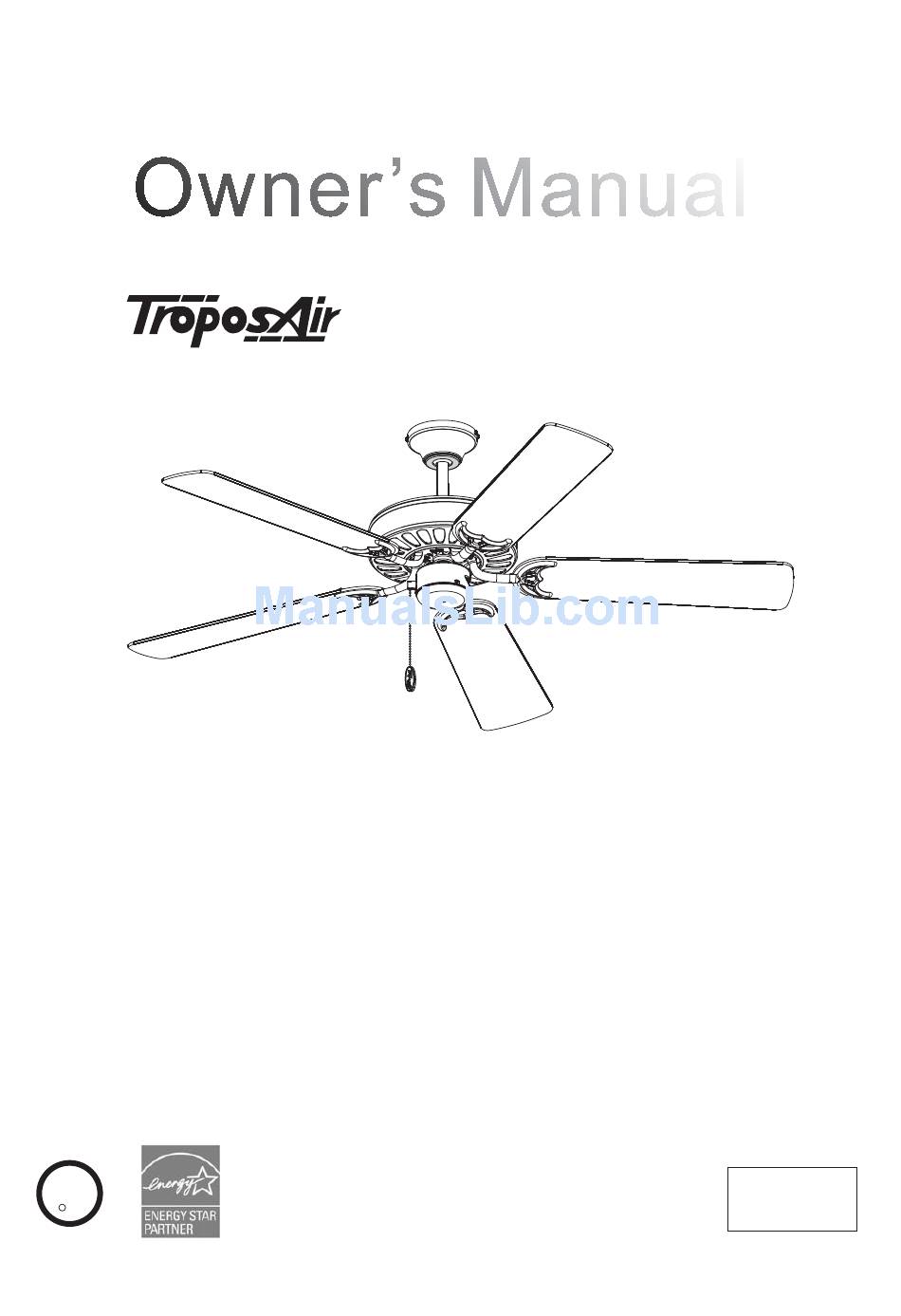

Owner's Manual
ProSeries Builder Outdoor
This instruction contains 6 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained
Page 3: Notes before installation
Page 3~5:
Page 5:
Wire and
Page 6: Blade and Pull hain Knob installatio
U L
R
Toll Free: 1-855-676-7247
WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
C
anopy installation
C
5OD52
n
Net weight
6.0 KGS.
13.2 LBS.
Advertisement
Table of Contents
Related Manuals for TroposAir 5OD52
Summary of Contents for TroposAir 5OD52
- Page 1 Owner’s Manual ProSeries Builder Outdoor 5OD52 This instruction contains 6 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained Page 3: Notes before installation Page 3~5: Hanging system installation Page 5: Wire and anopy installation Page 6: Blade and Pull hain Knob installatio Net weight 6.0 KGS.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Mounting Bracket Hardware Bag For Mounting Bracket: Flat Washer x2 Spring Washer x2 Downrod Assembly Machine Screw x2 Wood Screw x2 For Wire Connection: Wire Nut x 3 For Blade Installation: Blade Screw x 16 Canopy...
- Page 4 WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Turn off power at breaker Use metal outlet box suitable box to avoid possible for fan support. electrical shock. Outlet box must support 35 lbs min. O FF O FF O 1.
-
Page 5: Hanging The Fan
1C (Continued) Insert the cross pin through yoke & downrod and secure with cotter pin. Tighten both downrod jam screws to further secure downrod. Pull down the yoke cover to cover yoke. Insert 4 wires and through holes of Gasket (Removed from Step ), and put the Gasket back into downrod assembly. - Page 6 1F. Hanging the fan (For Flush mount) Lift the fan assembly and hang onto the tab on mounting bracket. Note: This will permit you to make the wire connections without having to hold the fan up as well. Mounting Bracket Fan assembly 2.
- Page 7 4. BLADE INSTALLATION Attach blade to blade holder with 3 blade screws and 3 rubber washers provided from hardware bag. Make sure all screws are firmly tightened. Remove 3 motor stoppers by removing screws . Secure Blade Assembly to the motor with 2 motor screws provided from hardware bag. NOTE: To prevent wobble, do not bend blade or blade holder.
