Owner's Manual
Saturn
This instruction contains 6 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained
Page 3: Notes before installation
Page 3~4:
Page 5: C
Page 6: Pull Chain Knob installation
3110124
Toll Free: 1-855-676-7247
WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Hanging System Installation and Wire connection
anopy / Blade / Switch Housing installation
5DA52
Net weight
8.5 KGS.
18.7 LBS.
Advertisement
Table of Contents
Related Manuals for TroposAir 5DA52
Summary of Contents for TroposAir 5DA52

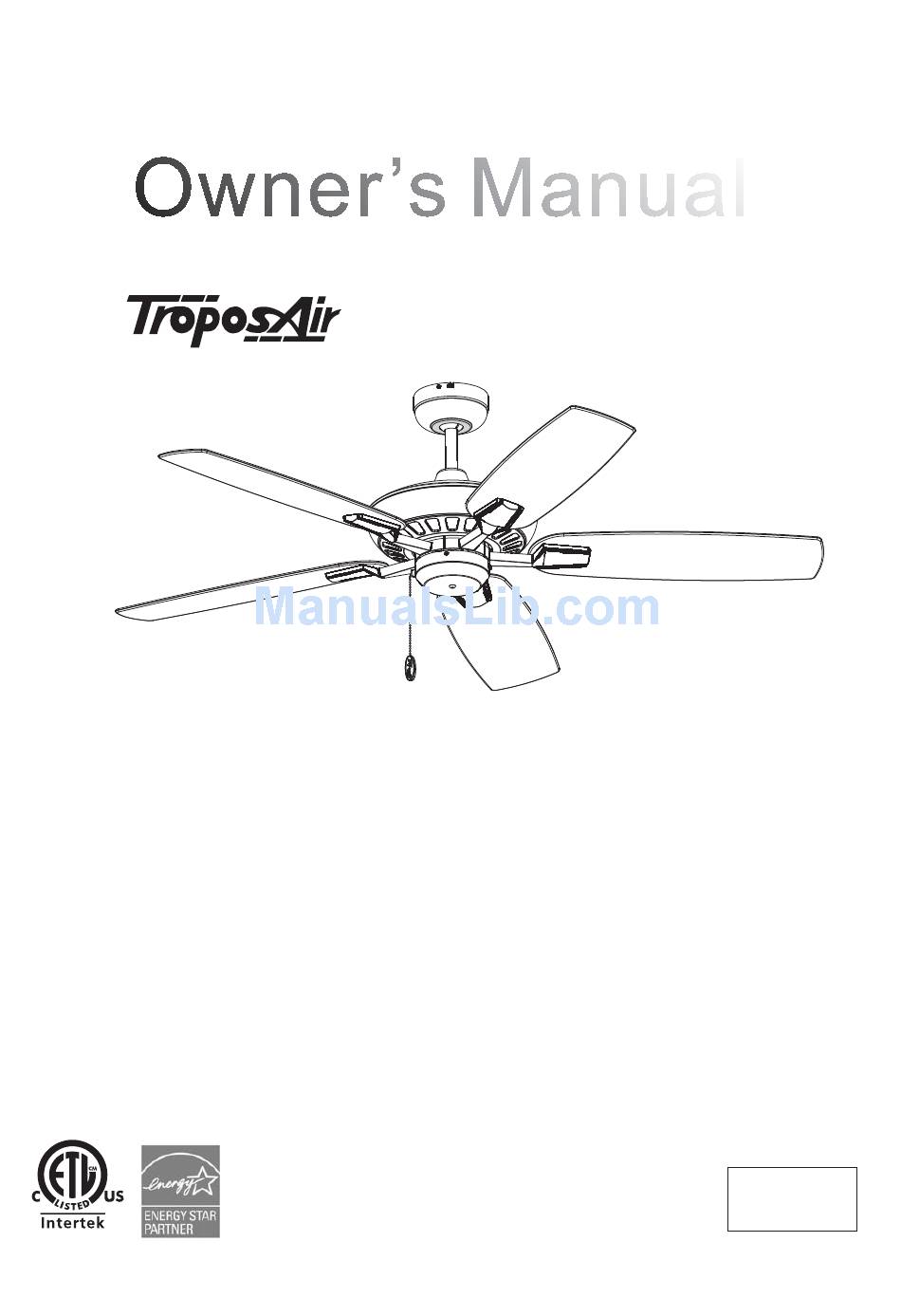

- Page 1 Owner’s Manual Saturn 5DA52 This instruction contains 6 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained Page 3: Notes before installation Page 3~4: Hanging system installation and Wire connection Page 5: C anopy / Blade / Switch Housing installation...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Mounting Hardware Bag Bracket For Mounting Bracket: Flat Washer x2 Spring Washer x2 Machine Screw x2 Wood Screw x2 Downrod Assembly For Wire Connection: Wire Nut x 3 For Flush Mount O ly: Canopy Set Screw x 3 Canopy...
- Page 4 WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Turn off power at breaker Use metal outlet box suitable box to avoid possible for fan support. electrical shock. Outlet box must support 35 lbs min. O FF O FF O 1.
- Page 5 Hanging the fan (For Downrod mount) Rotate fan so that the groove on the ball engages Lift fan assembly onto mounting bracket. the ridge in the mounting bracket. Mounting Bracket Mounting Ridge Bracket Ball Groove 1E. Canopy Assembly 1F. Hanging the fan (For Flush mount) (For Flush mount) Lift the fan assembly and hang onto the tab on...
- Page 6 3. CANOPY INSTALLATION Push up the canopy till center hole of canopy is engaged with spring tab of mounting bracket. Secure canopy to mounting bracket with four canopy set screws and Spring Washers provided from hardware bag for further security. Mounting Bracket Canopy Set Screw (4) Spring Washer (4)
- Page 7 6. PULL CHAIN KNOB INSTALLATION Connect Pull Chain Knob provided from hardware bag to the pull chain from switch housing. Fan Assembly Switch Housing Pull Chain Knob 7.Turn on the power at breaker box - your fan is ready for operation.
