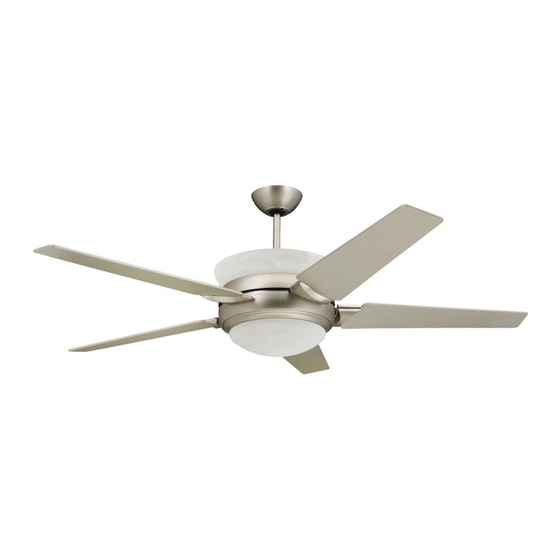

Owner's Manual
Sunrise
This instruction contains 6 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained
Page 3: Notes before installation and
Page 4:
Page 5: Canopy installation
Page 6: Blade / Light kit installation and Remote
U L
R
Toll Free: 1-855-676-7247
WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
5SR56+LK
& Setting
Net weight
12 KGS.
26.44 LBS.
Advertisement
Table of Contents
Related Manuals for TroposAir 5SR56+LK
Summary of Contents for TroposAir 5SR56+LK

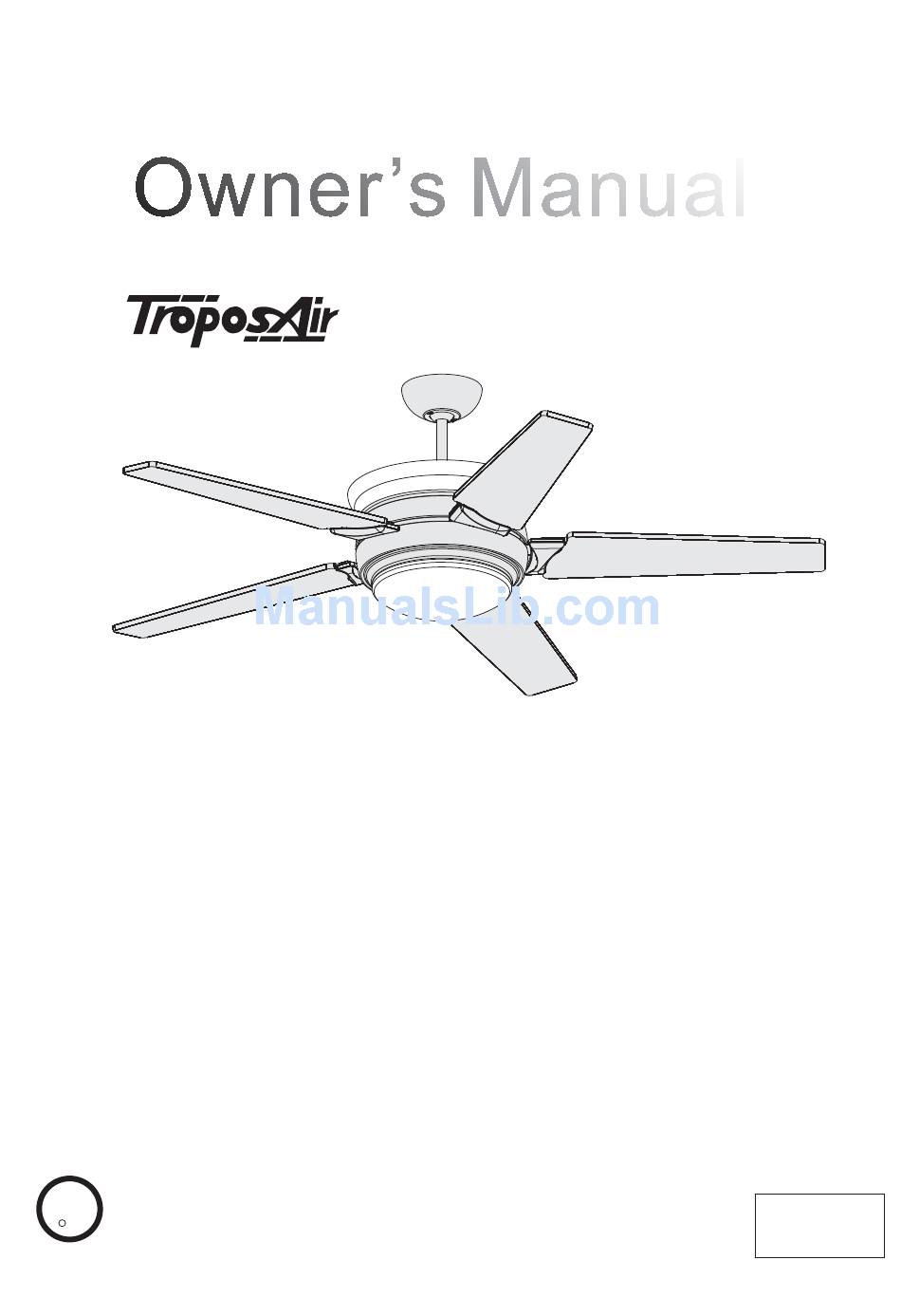

- Page 1 Owner’s Manual Sunrise 5SR56+LK This instruction contains 6 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained Page 3: Notes before installation and Hanging system installation Page 4: Wire connection Page 5: Canopy installation Page 6: Blade / Light kit installation and Remote &...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Mounting Hardware Bag Bracket For Mounting Bracket: Flat Washer x2 Spring Washer x2 Downrod Assembly Machine Screw x2 Wood Screw x2 Up Glass Assembly Paper Washer x3 (one spare washer included) Glass Screw x3 (one spare screw included) Canopy...
- Page 4 WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Turn off power at breaker Use metal outlet box suitable box to avoid possible for fan support. electrical shock. Outlet box must support 35 lbs min. OF F OF F OF 1.
-
Page 5: Hanging The Fan
1C. Attaching the Up Glass Assembly onto Fan Assembly Place the up glass assembly onto fan assembly. Secure the up glass assembly onto fan assembly with 3 paper washers and 3 glass screws (provided from hardware bag). Gently install 3 incandescent bulbs (40W) to lamp holders. - Page 6 2B. Making electrical wire connection Follow diagram below and make sure that all exposed wires are secured inside wire nuts. Note: Wires from house may vary in color and may not include ground wire (green). After wiring is completed, collect wires neatly inside hanging base. From House From Remote From Fan...
- Page 7 4. BLADE INSTALLATION 4A. Blade Installation 4B. Blade Assembly To Motor Secure Blade Assembly to the fan assembly with Attach blade to blade holder with 3 blade screws 2 motor screws provided from hardware bag. and 3 paper washers provided from hardware bag. Make sure all screws are firmly tightened.
