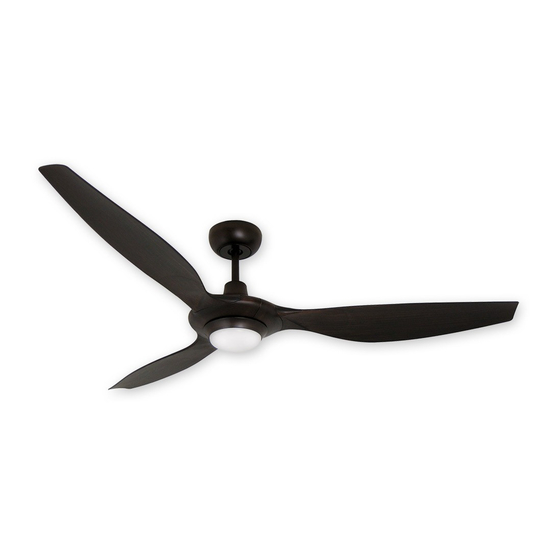

Vogue & Vogue Plus
3SA60
3SA60+LED
This instruction contains 11 pages:
Page 1: Foreword
Page 2~3: Unpack and inspect parts contained
Page 4~5: Notes before installation and Hanging system installation
Page 5~6: Wire connection
Page 7: Blade installation and Canopy installation and Light kit installation
Page 8: Remote setting
Page 9~11: Troubleshoot
Net weight
8.7 KGS.
19.0 LBS.
Toll Free: 1-855-676-7247
WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Advertisement
Related Manuals for TroposAir Vogue
Summary of Contents for TroposAir Vogue

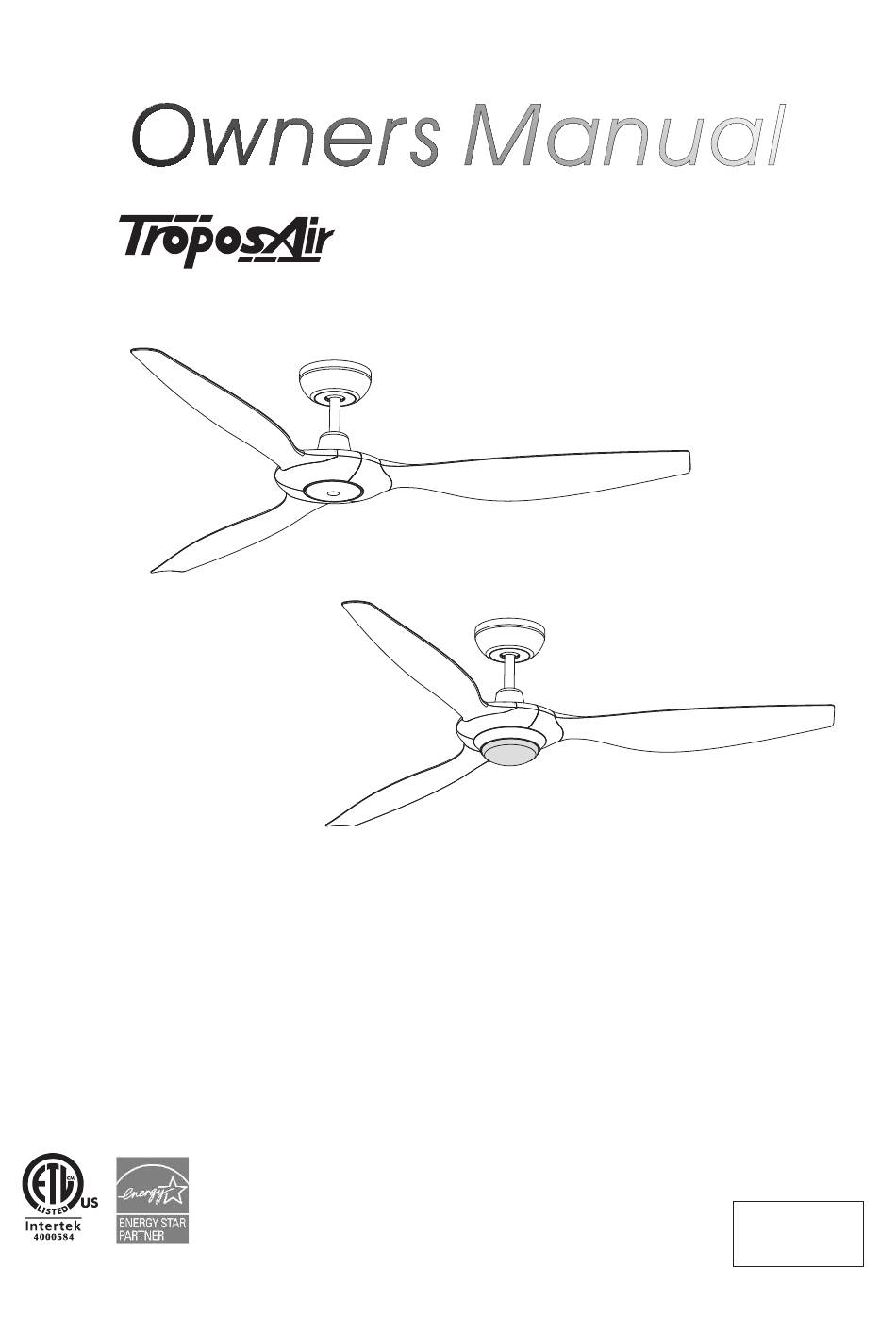

- Page 1 Vogue & Vogue Plus 3SA60 3SA60+LED This instruction contains 11 pages: Page 1: Foreword Page 2~3: Unpack and inspect parts contained Page 4~5: Notes before installation and Hanging system installation Page 5~6: Wire connection Page 7: Blade installation and Canopy installation and Light kit installation...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Without Light Kit Mounting Bracket Hardware Bag For Mounting Bracket: Flat Washer Spring Washer Machine Screw x2 Wood Screw Downrod For Blade Installation: Blade Screw x 10 (one spare screw included) Canopy Blade Balance Balanced slide x 1...
- Page 4 Unpack and inspect fan carefully to be certain all contents are included. With Light Kit Hardware Bag Mounting Bracket For Mounting Bracket: Flat Washer Spring Washer Machine Screw x2 Wood Screw Downrod For Blade Installation: Blade Screw x 10 (one spare screw included) Canopy Blade Balance Balanced slide x 1...
- Page 5 WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Turn off power at breaker Use metal outlet box suitable box to avoid possible for fan support. Outlet box must support 35 lbs min. electrical shock. OF F OF F OF 1.
-
Page 6: Wire Connection
Bracket 2B-1.Making electrical wire connection FOR VOGUE (NO LIGHT) Follow diagram below and make sure that all exposed wires are secured inside wire nuts or terminal block. Note : Wires from house may vary in color and may not include ground wire ( green ). -
Page 7: Canopy Installation
2B-2.Making electrical wire connection FOR VOGUE PLUS (W/LIGHT) Follow diagram below and make sure that all exposed wires are secured inside wire nuts or terminal block. Note : Wires from house may vary in color and may not include ground wire ( green ). -
Page 8: Blade Installation
& Spring Washer(3) Blade(3) Fan Assembly INSTALLATION FOR LED LIGHT COVER FOR VOGUE PLUS (W/LIGHT) LED already pre-installed. Align the grooves in the Light Cover to the tabs in the Collar and attach the Light Cover clockwise Blade Safety Light Cover... - Page 9 After completing the ceiling fan installation, install the 12V battery(included) in the hand-held Transmitter (see below FIG.2). Your fan is ready for remote control setting and operation. FIG.2 *NOTE: Your DC motor is equipped with an automatically learned type Remote control.
-
Page 10: Troubleshoot
Troubleshoot In general, the fan control is preset and should function normally, even if there are more than one fan in the same area. In the event of mixed paired remote & receiver, please do the following. Step 1. Make sure to turn off power at breaker box. First, switch the main power off and make sure fan has completely stopped. - Page 11 Step 3. To set up remote for #2 Fan 3-1. Make sure to turn off power at breaker box. Switch the main power off and make sure fan has completely stopped. 3-2. Disconnecting wire from #1 Fan Disconnect the AC Black wires to the #1 Fans and connect the AC Black wires back to #2 Fan that you remove from Step 2-1.
- Page 12 Step 4. Reconnecting all fans 4-1. Make sure to turn off power at breaker box. Switch the main power off and make sure fan has completely stopped. 4-2. Connect wire to #1 Fan and #2 Fan should already be wired Outlet Box Mounting Bracket Outlet Box...
