TroposAir Triton II 52DFD-L Owner's Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

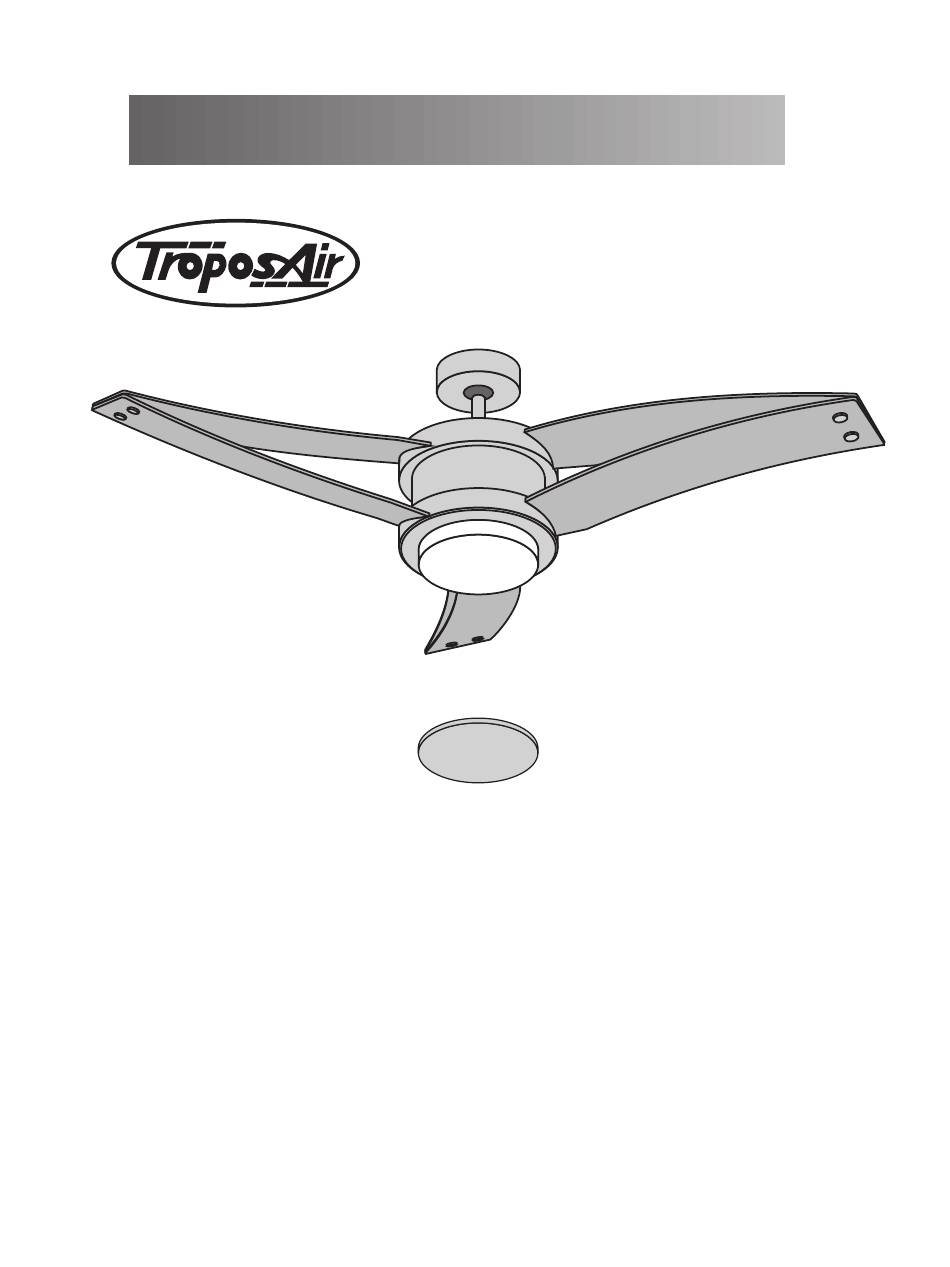

Owner's Manual
Triton II
This instructions contains 5 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained, and pre-installation notes
Page 3: Hanging system installation and remote setting
Page 4: Wire connection and Canopy installation
Page 5: Blade and Light/Cover installation
Toll Free 1-855-676-7247
WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Model No: 52DFD-L
Cover for non-light option
Net Weight
9.7 KGS
21.4 LBS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Triton II 52DFD-L and is the answer not in the manual?

Questions and answers

Related Manuals for TroposAir Triton II 52DFD-L

Summary of Contents for TroposAir Triton II 52DFD-L

  • Page 1 Owner’s Manual Triton II Model No: 52DFD-L Cover for non-light option This instructions contains 5 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained, and pre-installation notes Page 3: Hanging system installation and remote setting Page 4: Wire connection and Canopy installation Page 5: Blade and Light/Cover installation Net Weight 9.7 KGS...
  • Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING: To ensure success of installation, be sure read these instructions and review the diagrams thoroughly before beginning. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring.
  • Page 3 Unpack and inspect fan carefully to be certain all contents are included. Hardware Bag For Mounting Bracket: Flat Washer x2 Mounting Star Washer x2 Bracket Spring Washer x2 Machine Screw x2 Wood Screw x2 Downrod Assembly For Wire Connection Wire Nut x3 For Blade Installation Canopy Blade Screw x24 +1...

  • Page 4: Remote Setting

    1. HANGING SYSTEM INSTALLATION 1A. Installing mounting bracket to ceiling outlet box Install mounting bracket to outlet box in ceiling Outlet Box by using screws included with the outlet box and washers from the hardware bag. Mounting Bracket 1B. Installing Downrod and Yoke Remove cross pin and cotter pin from downrod Insert downrod through canopy and yoke cover, and feed motor wires through downrod.

  • Page 5: Wiring Connection

    3. WIRING CONNECTION 3A. Insert receiver into mounting bracket Note: Do not squeeze all the wires while inserting the receiver into the mounting bracket. Receiver Mounting Bracket 3B. Making electrical wire connection Follow diagram below and make sure that all exposed wires are secured inside wire nuts. Note: Wires from house may vary in color and may not include ground wire (green).

  • Page 6: Blade Installation

    5. BLADE INSTALLATION 5. Installing the blades Tip: Upper blades are shorter than the lower blades. Slide upper blade into upper slot of motor and secure with blade screws and washers. Repeat for remaining upper blades. Secure wedge to top face of lower blade with countersink screws and decorative caps. Slide lower blade into lower slot and secure with blade screws and washers.
