Owner's Manual

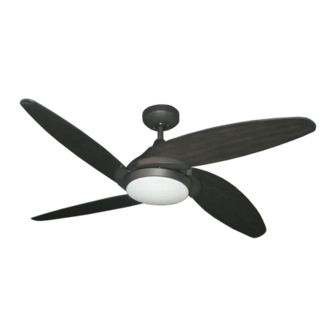

Tuscan
These instructions contain 5 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained, and pre-installation notes
Page 3: Hanging system installation
Page 4: Wiring connections and Canopy and Blade installation
Page 5: Light/Cover installation and Remote Setting
Toll Free 1-855-676-7247
WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Model No:
HE-15073
Net Weight
7.9 KGS
9.2 LBS
Advertisement
Related Manuals for TroposAir Tuscan HE-15073
Summary of Contents for TroposAir Tuscan HE-15073
- Page 1 Owner’s Manual Tuscan Model No: HE-15073 These instructions contain 5 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained, and pre-installation notes Page 3: Hanging system installation Page 4: Wiring connections and Canopy and Blade installation Page 5: Light/Cover installation and Remote Setting Net Weight 7.9 KGS 9.2 LBS...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING: To ensure success of installation, be sure read these instructions and review the diagrams thoroughly before beginning. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Mounting Bracket Hardware Bag For Mounting Bracket: Flat Washer x2 Downrod Star Washer x2 Assembly Spring Washer x2 Machine Screw x2 Wood Screw x2 Canopy For Wire Connection Wire Nut x3 Yoke For Blade Installation...
-
Page 4: Receiver Installation
1. HANGING SYSTEM INSTALLATION 1A. Installing mounting bracket to ceiling outlet box Install mounting bracket to outlet box in ceiling by using screws included with the outlet box Outlet Box and washers from the hardware bag. Mounting Bracket 1B. Installing Downrod and Yoke Remove cross pin, washer and cotter pin from downrod. - Page 5 3. WIRING CONNECTIONS Green Ground/Earth to Green from Downrod and Green from Hanging Bracket Black Source to Black Input of Receiver White Source to White Input of Receiver Black Output from Receiver to Black Fan Wire Blue Output from Receiver to Blue Fan Wire White Output from Receiver to White Fan Wire From House From Remote...
-
Page 6: Remote Setting
7. LIGHT/COVER INSTALLATION 7a. Installing the Light Pan Align key holes to screws Remove one screw and loosen two screws from the central hub. Lift light pan to motor to engage the large end of the key holes with the screws. Rotate the plate slightly to engage two Loosen Remove...
