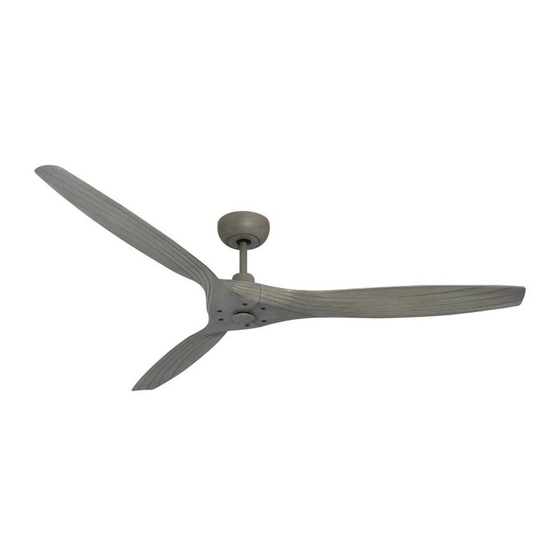

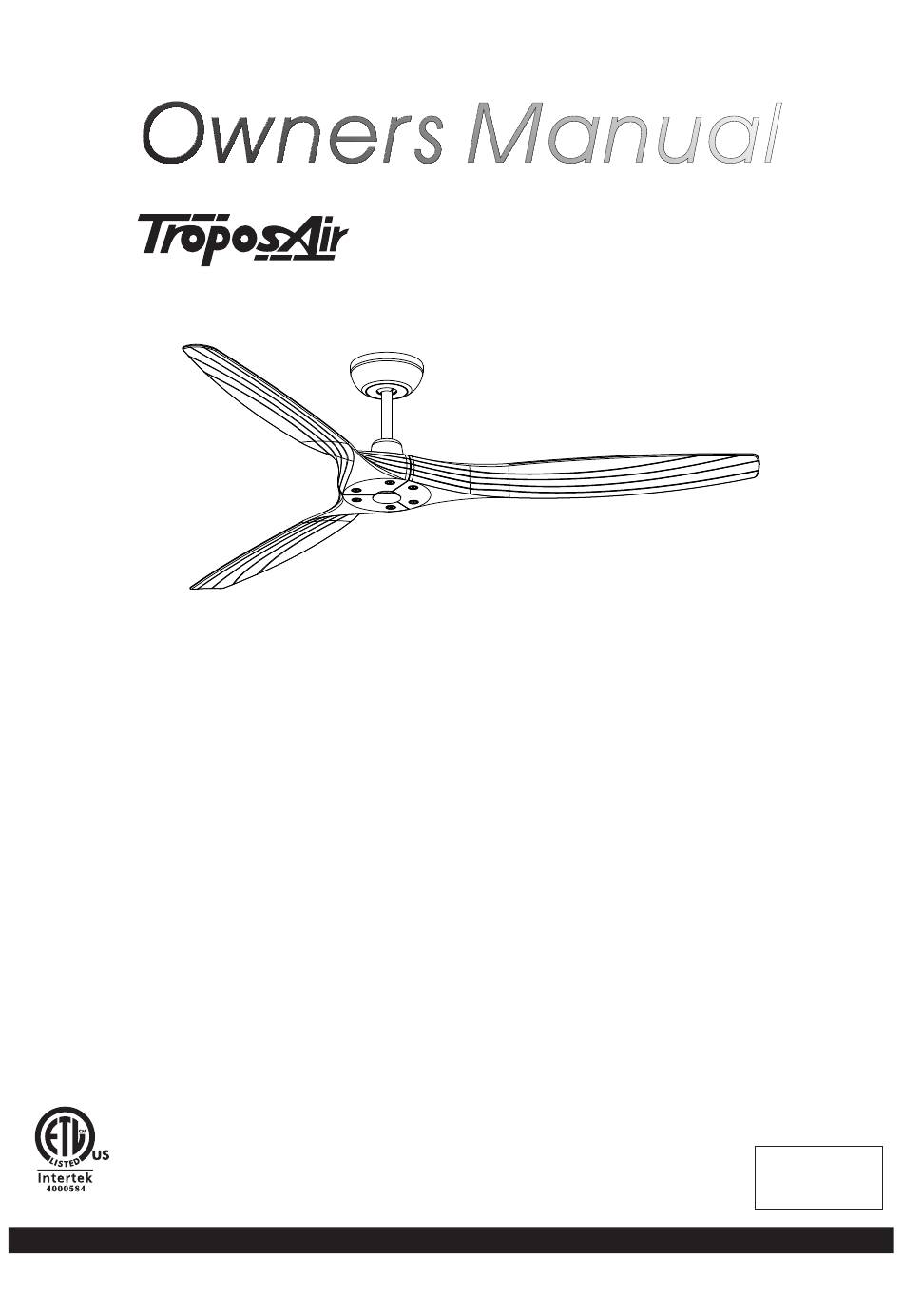

Solara
(3LN60)
This instruction contains 10 pages:
Page 1: Read Safety instructions
Page 2: Unpack and inspect parts contained
Page 3~4: Notes before installation and Hanging system installation
/Blade installation
Page 5: Wire connection
Page 6: Canopy installation / Transmitter instruction
Page 7: Operation instruction
Page 8~10: Resetting process
Net weight
5.2 KGS.
11.4 LBS.
Toll Free: 1-855-676-7247
WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Advertisement
Related Manuals for TroposAir Solara
Summary of Contents for TroposAir Solara
- Page 1 Solara (3LN60) This instruction contains 10 pages: Page 1: Read Safety instructions Page 2: Unpack and inspect parts contained Page 3~4: Notes before installation and Hanging system installation /Blade installation Page 5: Wire connection Page 6: Canopy installation / Transmitter instruction...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Unpack (Fan & Blades packed in one Box) Hardware Bag For Mounting Bracket: Flat Washer Mounting Bracket Spring Washer Machine Screw x2 Wood Screw For Blade Installation: A. Blade Screw x 7 (Top Side) Downrod (one spare screw included) B.
-
Page 4: Blade Installation
WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Use metal outlet box suitable Turn off power at breaker box to avoid possible for fan support. electrical shock. Outlet box must support 35 lbs min. OF F OF F OF 1. - Page 5 3. Downrod Installation Downrod Assembly Downrod Assembly 3-3.Canopy Cross Pin 3-1.Cotter Pin Deco Ring Wires Yoke cover Yoke 3-2. Downrod Jam Screws (2) (Loosening) Fan Assembly Fan Assembly 3-1.Remove cross pin and cotter pin from downrod. 3- 3. Insert yoke cover, deco ring, canopy onto downrod. 3-2.Loosen 2 downrod jam screws at yoke.
-
Page 6: Wire Connection
5. WIRE CONNECTION 5-1. Check the serial No. & Model No. on the receiver & Transmitter NOTICE: All remote sets for DC motor are looked the same, this remote set (Transmitter and receiver) is pre-set at factory, please note the following before operation, 1. -
Page 7: Canopy Installation
6. CANOPY INSTALLATION Receiver Hanging Canopy Bracket 6-1. 6-1. 6-3.Screw (2) 6-3.Key Hole (2) Canopy 6-1.Key hole B 6-1.Key hole A 6-5.Deco Ring 6-3. Rotate canopy slightly until the two pre- Note: Two screws are installed on mounting bracket for canopy installation. installed screw heads are engaged in the narrow end of key holes. -
Page 8: Operational Instruction
(See 7-2 in Page 6) Note: The remote has “Memorize device”, the “fan speed” & “Light” will be back to last status when you turn the fan on. #630 (Not included) Integrated type: For only Solara / Troposair... - Page 9 9.Resetting process For single fan In the event the fan does not operate properly, please check the following steps. 9-1. Put down the canopy and check the all wires are connected properly. 9-2. Process the resetting as following at 9-3. From Remote From Fan From House...
- Page 10 9-5. RESETTING Process for receiver and transmitter: 1. Switch off the main power and make sure fan has completely stopped . 2. Switch on the power again, and immediately. Press and hold the Fan On/Off button for 8 seconds until the Receiver “Long Beeps”. This process must be done within 20 seconds after switching on the power.
- Page 11 10. Reconnecting all fans After all the fans have done the resetting process, reconnect all the wires for #1 fan & #2 fan. Outlet Box Outlet Box Mounting Bracket Mounting Bracket #1 Fan #2 Fan 10-1. Turn on the power from main switch and now each of these two fans are operated by its own remote individually.
Need help?
Do you have a question about the Solara and is the answer not in the manual?
Questions and answers
Installed the fan last summer and it worked. It has been off all winter. Today I tried to start it and it did not work. Turned the power On at the switch, held the remote On button for at least 15 seconds and the power light on the remote flashed, but did not beep. Fan did not rotate and the speed controls did not make the blades turn. What should I do?
If the TroposAir Solara fan does not start after being off for winter, follow these troubleshooting steps:
1. Turn off the main power and ensure the fan has completely stopped.
2. Check for missing or replaced transmitter or receiver. If either has been changed, a reset is needed.
3. Perform the reset process:
- Install the new transmitter or receiver if needed.
- Turn the power back on.
- Within 20 seconds, press and hold the Fan On/Off button on the remote for 8 seconds until the receiver gives a long beep.
4. Ensure proper wiring connections, including grounding wires to prevent issues.
5. Check the DIP switch settings and make sure the remote is in the correct mode (e.g., dimming if needed).
6. Replace the 12V battery in the remote control if it is low.
7. Make sure the fan direction switch is not in-between positions.
These steps should help restore operation after a long period of disuse.
This answer is automatically generated
How do I turn off the beep?
The TroposAir Solara does not provide an option to turn off the beep sound. All button presses will produce a beep, as stated in the operational instructions.
This answer is automatically generated
