AUS Installation and Use Instructions
TM
the devireg
330
16 Amp. Thermostat
PLEASE NOTE
The enclosed Floor Sensor MUST be installed so that it
may be REMOVED for service if required!
The sensor probe should be installed into a conduit with
no more than one wide-angle bend. This should be
installed from the floor to the thermostat or junction box
located directly above the heated area.
PLEASE READ ENCLOSED INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Devireg 330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEVI Devireg 330

Summary of Contents for DEVI Devireg 330

  • Page 1 AUS Installation and Use Instructions the devireg 16 Amp. Thermostat PLEASE NOTE The enclosed Floor Sensor MUST be installed so that it may be REMOVED for service if required! The sensor probe should be installed into a conduit with no more than one wide-angle bend. This should be installed from the floor to the thermostat or junction box located directly above the heated area.

  • Page 2: Installation

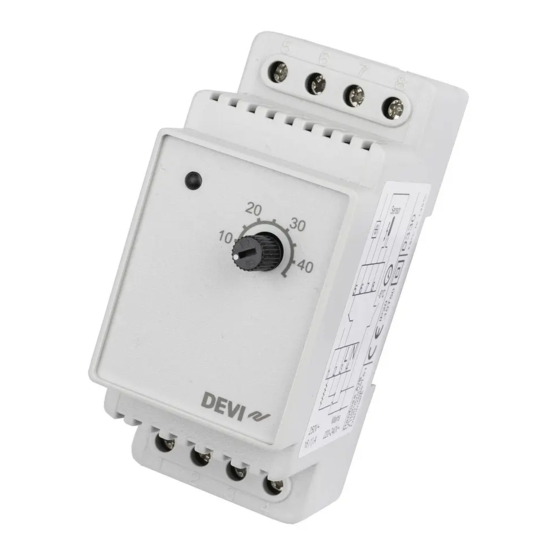

    Application: The devireg 330 is used for the control of room temperature, refrigeration systems, floor temperature, frost protection, snow melting, industrial purposes and roof gutter installations. Installation: The devireg 330 is an electronic thermostat with a 5 temperature set back. It is designed for installation into Panel Boards with an overall minimum height of 52mm, as well as for DIN rail attachment.
  • Page 3 7. Contactors or other objects producing strong electromagnetic fields must not be placed in the immediate vicinity of the thermostat. 8. Connections should be made according to the circuit diagrams (see figs 1&2). Loads over 16 Amps must be controlled via a contactor, fig.
  • Page 4 For Optional Night Sensor Set Back Only 5 6 7 8 devireg 1 2 3 4 180 - 250V ~ Max load 16 A Fig 1. HEATING Sensor 6 7 8 devireg 1 2 3 180 - 250V ~ Max load 10 A Fig.
  • Page 5 52mm 36mm Fig. 3 Dimensions Cooling Contactor Heating loads greater than 16 A Heating Fig. 4 Loads greater than 16 Amps Contactor sizing and installation must be in accordance with the manufacturer's recommendations.

  • Page 6: Troubleshooting

    57600 W (at 240 V~) The calculated output of the heating cable can be determined by looking it up in your DEVI catalogue. If the sensor wire terminals 7 and 8 are removed, the red indicator lamp should light up and the thermostat should switch ON.

  • Page 7: Technical Data

    Technical Data Temperature range: C to +45 Voltage: 180 – 250 V ~ 50 Hz Load: Cos φ =0.3 max. 2 A Breaking capacity 10 A 250 V ~ terminals 2 and 5: Breaking capacity 16 A 250 V ~ terminals 1 and 2: Hysteresis: Night set-back:...
  • Page 8 The following Warranty is provided by DEVI Heating Systems ABN 39 898 434 262, herein after referred to as DEVI. It is offered in addition to any relevant statutory Federal or State Warranty. DEVI is a partner of the DEVI Group of Companies, who are a Danish based specialist heating product manufacturer.
  • Page 9 Rectification work, performed as a consequence of matters not covered by the Warranty, will be at the expense of the customer. DEVI will respond honestly, efficiently and promptly to all queries and reasonable requests from our customers. DEVI...
  • Page 10 The obligation of DEVI will be to repair or supply a new unit, free of charge to the customer, without secondary charges linked to repairing the unit. In case of defective...
  • Page 11 If DEVI is required to inspect or repair any defects caused by any of the above, then all work will be fully chargeable. The DEVI warranty is void, if payment of the equipment is in default. At all times, we at DEVI will respond honestly, efficiently and promptly to all queries and reasonable requests from our customers.

  • Page 12: Warranty Certificate

    The DEVI™ Warranty is granted to: Name: Address: Phone: Postal Code: Please Observe! In order to obtain the DEVI™ Warranty, the following must be carefully filled in. See other conditions on the overleaf. Electrical Installation By: Installation Date: Type of Thermostat: Production Code:...
