Summary of Contents for DEVI DEVIreg 535

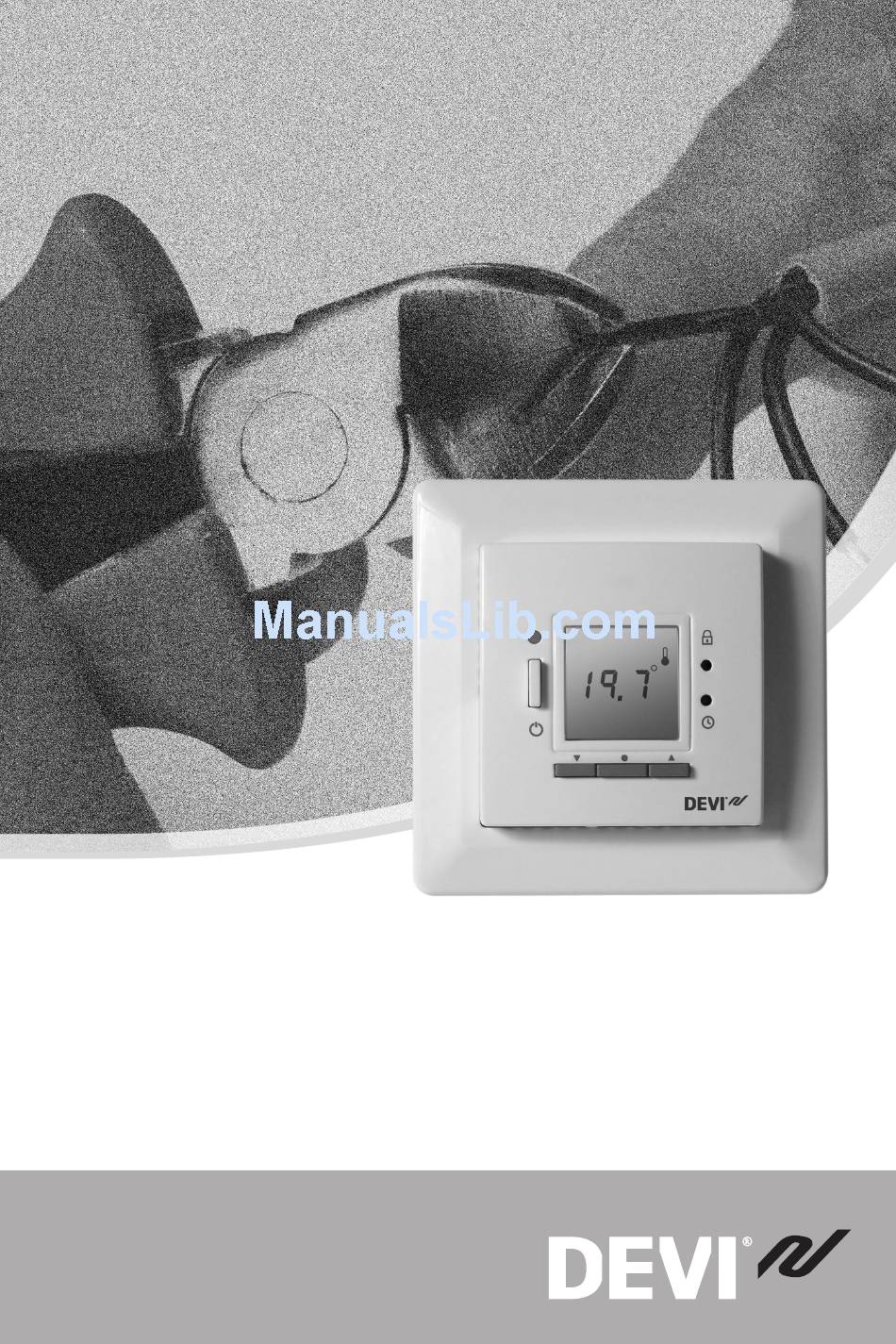

- Page 1 Installation Guide DEVIreg™ 535 Electronic Thermostat www.DEVI.com...
- Page 2 The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC)
-
Page 3: Table Of Contents
DEVIreg™ 535 Table of Contents Introduction ....Technical Specifications ..Safety Instructions ..Mounting Instructions . -
Page 4: Technical Specifications
The thermostat has buttons for adjusting the temperature setting, and a LED indicator showing standby periods (green light) and heating periods (red light). More information on this product can also be found at: devireg.devi.com Technical Specifications Operation voltage 220-240V~, 50Hz Standby power con- Max 0.30W... - Page 5 DEVIreg™ 535 Temperature range 5-35°C with room sensor 5-45°C with floor sensor only Floor max 20-50°C Floor min 10-35°C, when instal- led with combination of room and floor sensor Cable specification max 1x4mm or 2x2,5mm Ball pressure tempera- 75°C ture Pollution degree 2 (domestic use) Type...
-
Page 6: Safety Instructions
DEVIreg™ 535 Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. IMPORTANT: When the thermostat is used to control a floor heating element according to "Household and similar electrical appliances - Safety - EN/IEC 60335-1 : General re- quirements"... -
Page 7: Mounting Instructions
DEVIreg™ 535 Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.). The thermostat should not be placed in wet rooms. Place it in an adjacent room. Always place the thermostat according to local regulation on IP classes. - Page 8 DEVIreg™ 535 Do not place the thermostat in a way that it will be exposed to direct sunlight. Note: A floor sensor enables a more accu- rate temperature control and is recom- mended in all floor heating applications and mandatory under wooden floors to reduce the risk of over-heating the floor.
-
Page 9: Open The Thermostat
DEVIreg™ 535 Follow the steps below to mount the thermostat: 1. Open the thermostat: ▪ Gently press the release tab in the bottom of the thermostat using a flat object. ▪ Carefully pull off the front cover. 2. Connect the thermostat according to the connection diagram. - Page 10 DEVIreg™ 535 The screen of the heating cable must be connected to the earth conductor of the power supply cable by us- ing a separate connector. Note: Always install the floor sensor in a conduit in the floor. 3. Mount and reassemble the thermostat. ▪...
-
Page 11: Settings
DEVIreg™ 535 Settings Sensor: How to specify whether an external floor sen- sor, the built-in room sensor or both is used to control the floor heating Note: The floor sensor option is selected by default. 1. Press the installation button D with a blade end. 2. - Page 12 DEVIreg™ 535 If both a room sensor and a floor sen- sor is used, choose: This option is suitable for all rooms but wet rooms. The thermostat must be installed in the same room as the floor sensor and the heating elements. If only a room sensor is used, choose: This option is not recommendable due to an increased risk of overheat-...
- Page 13 DEVIreg™ 535 How to set the maximum floor temperature Special condition: This setting only applies if a floor sensor is used (the floor sensor or room/floor sensor option has been set). Note: The maximum floor temperature is set to 35°C by default.
- Page 14 DEVIreg™ 535 Note: Please contact the floor supplier before changing the maximum floor temperature and be aware of the following: ▪ The floor temperature is measured where the sensor is placed. ▪ The temperature of the bottom of a wooden floor can be up to 10 degrees higher than the top.
-
Page 15: Warranty
DEVIreg™ 535 How to define the temperature scale Special condition: If floor sensor is selected, the numerical scale with steps from 1 - 6 must be selected. Note: By default, the Celsius scale is used. 1. To change the default temperature scale, press the • button. -
Page 16: Disposal Instruction
DEVIreg™ 535 Disposal Instruction Installation Guide... - Page 17 DEVIreg™ 535 Installation Guide...
- Page 18 DEVIreg™ 535 Installation Guide...
- Page 19 This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. DEVI and the DEVI logo- type are trademarks of Danfoss A/S.
