DEVI DEVIreg 330 Installation Manual
(+5 to +45 c)
Hide thumbs
Also See for DEVIreg 330:
- Installation and use instructions manual (12 pages) ,
- Installation instruction (28 pages) ,
- Installation manual (12 pages)
Advertisement
Advertisement
Related Manuals for DEVI DEVIreg 330
Summary of Contents for DEVI DEVIreg 330

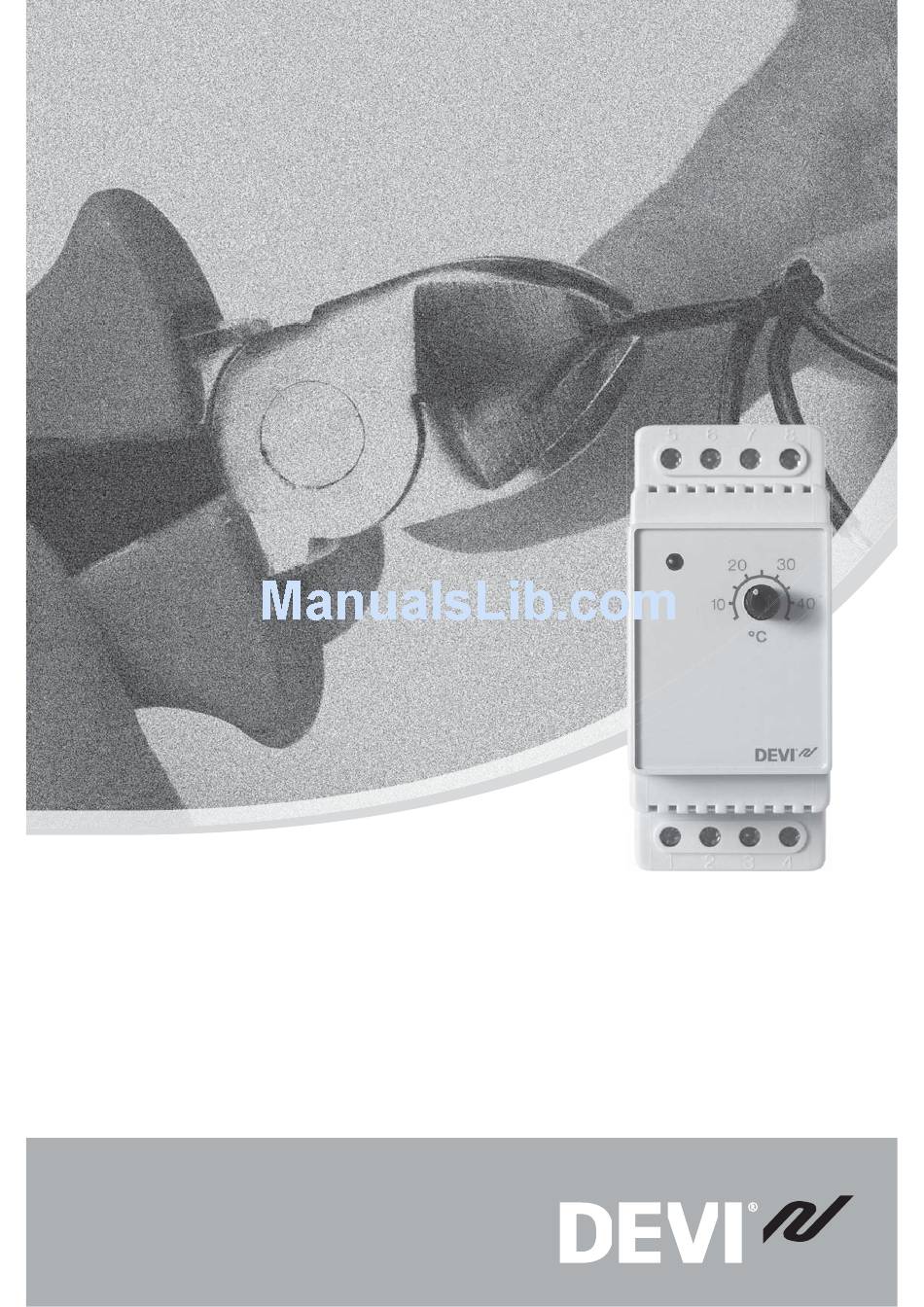

- Page 1 Installation Guide DEVIreg™ 330 (+5 to +45°C) Electronic Thermostat www.DEVI.com...
-
Page 3: Table Of Contents

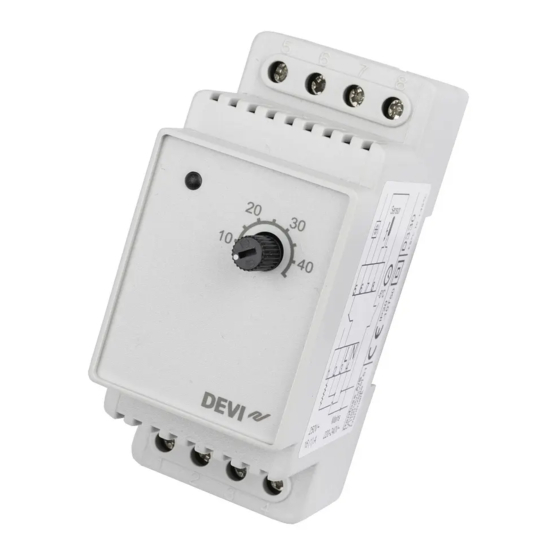

The thermostat has a button to adjust the temperature set- ting with a scale from +5 to +45°C. An LED indicator shows standby periods (green light) and heating periods (red light). More information on this product can also be found at: devireg.devi.com Installation Guide... -
Page 4: Technical Specifications
DEVIreg™ 330 (+5 to +45°C) Technical Specifications Operation voltage 220-240V~, 50Hz Standby power consumption Max 0.25W Relay: Resistive load Max 16A / 3680W @ 230V Inductive load cos φ= 0.3 max1A Sensing units NTC 15kOhm at 25°C Sensing values: 0°C 42kOhm 25°C 15kOhm... -
Page 5: Safety Instructions
DEVIreg™ 330 (+5 to +45°C) Protection class Class II - Dimensions 86 x 36 x 58mm Weight The product complies with the EN/IEC Standard "Automatic electrical controls for household and similar use": EN/IEC 60730-1 (general) EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. -
Page 6: Mounting Instructions
DEVIreg™ 330 (+5 to +45°C) Always connect the thermostat to continuous power supply. Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Please observe the following placement guidelines: Install the thermostat in an electric cabinet with DIN rail attachment or a separate DIN attachment accord- ing to local regulation on IP classes. -
Page 7: Settings
DEVIreg™ 330 (+5 to +45°C) The screen of the heating cable must be connected to the earth conductor of the power supply cable by us- ing a separate connector. Note: Always install the floor sensor in a conduit in the floor. -
Page 8: Warranty
DEVIreg™ 330 (+5 to +45°C) Thermal Examples of floor- Details Approximate resist- setting for ance 25˚C floor [m2K/W] temperature 0.05 8 mm HDF based 28˚C > 800 kg/m laminate 0.10 14 mm beech par- 650 - 800 31˚C quet kg/m 0.13 22 mm solid oak 32˚C... -
Page 9: Disposal Instruction
DEVIreg™ 330 (+5 to +45°C) Disposal Instruction Installation Guide... - Page 10 DEVIreg™ 330 (+5 to +45°C) Installation Guide...
- Page 11 This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. DEVI and the DEVI logo- type are trademarks of Danfoss A/S.
