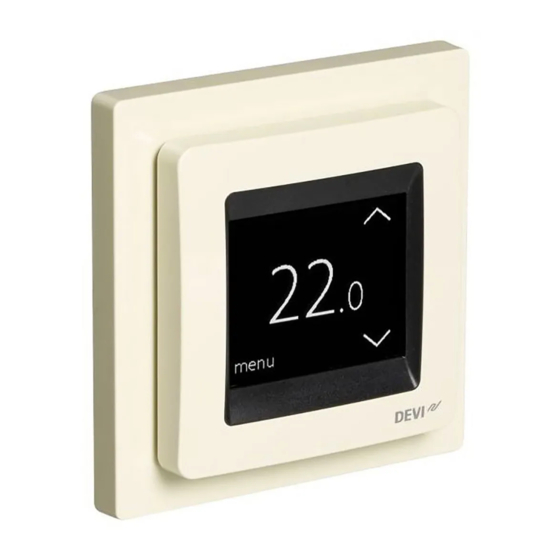

DEVI DEVIreg Touch Installation Manual
Electronic intelligent timer thermostat
Hide thumbs
Also See for DEVIreg Touch:
- User manual (36 pages) ,
- Installation manual (28 pages) ,
- User manual (36 pages)
Advertisement
Table of Contents
Installation Guide
DEVIreg™ Touch
Electronic Intelligent Timer Thermostat
PLEASE DO NOT TRY TO ASSEMBLE THIS THERMOSTAT BEFORE FULLY READING THROUGH THE INSTRUCTIONS
AND UNTIL THE TIME OF INSTALLATION. Please note that disassembly can be challenging and should be avoided
to ensure against the damage to any individual part or the thermostat as a whole.
www.DEVI.com
Advertisement
Table of Contents
Related Manuals for DEVI DEVIreg Touch
Summary of Contents for DEVI DEVIreg Touch
-
Page 1: Installation Guide
PLEASE DO NOT TRY TO ASSEMBLE THIS THERMOSTAT BEFORE FULLY READING THROUGH THE INSTRUCTIONS AND UNTIL THE TIME OF INSTALLATION. Please note that disassembly can be challenging and should be avoided to ensure against the damage to any individual part or the thermostat as a whole. www.DEVI.com... -
Page 3: Table Of Contents
DEVIreg™ Touch Table of Contents Introduction ....Technical Specifications ..Safety Instructions ..Mounting Instructions . -
Page 4: Technical Specifications
▪ Smart access to thermostat settings after installation by using a web code interface for easy setup or remote troubleshooting. More information on this product can also be found at: touch.devi.com Technical Specifications Operation voltage 220-240 V~, 50/60 Hz Standby power con- Max. - Page 5 DEVIreg™ Touch Sensing units NTC 6.8 kOhm at 25°C NTC 10 kOhm at 25°C NTC 12 kOhm at 25°C NTC 15 kOhm at 25°C (Default) NTC 33 kOhm at 25°C NTC 47 kOhm at 25°C Sensing values: (De- fault NTC 15 K) 0°C 42 kOhm 20°C...
- Page 6 DEVIreg™ Touch Sensor failure moni- The thermostat has a built-in toring monitoring circuit, which will switch off the heating if the sen- sor is disconnected or short- circuited Cable specification 1x4 mm or 2x2,5 mm max. Ball pressure test 75°C temperature Pollution degree 2 (domestic use)
-
Page 7: Safety Instructions
DEVIreg™ Touch Safety Instructions before installation. IMPORTANT: When the thermostat is used to control a to determine suitable temperature settings (it is restrictions. Please also note the following: ▪ The installation of the thermostat must be done by a licensed electrician according to local regulations. ▪... -
Page 8: Mounting Instructions
DEVIreg™ Touch Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.). The thermostat should not be placed in wet rooms. Place it in an adjacent room. Always place the thermostat according to local regula- tion on IP classes. - Page 9 DEVIreg™ Touch Note: A oor sensor enables a more accurate temperature control and is recommended in all oor heating applications and mandatory under wooden oors to reduce the risk of over-heating the oor. ▪ Place the oor sensor in a conduit in an appropriate place where it is not exposed to sunlight or draft from door openings.
- Page 10 DEVIreg™ Touch Follow the steps below to mount the thermostat: 1. Open the thermostat: Important: Do NOT press on the display screen when removing the front part. pull toward you: (bottom piece) until all wiring connections to terminals are complete. The display screen is NOT EASY to remove once it has been pressed into place! 2.
- Page 11 DEVIreg™ Touch The screen of the heating cable must be connected to the earth conductor of the power supply cable by us- ing a separate connector. Note: Always install the oor sensor in a conduit in the oor. 3. Mount and reassemble the thermostat. ▪...
-
Page 12: Settings
DEVIreg™ Touch Initially it is recommended to leave the thermostat connected to the main supply for 15 hours to fully charge the battery. The current time and day is then kept for 24 hours if mains supply is o . All other settings are stored permanently. Settings Initial Settings Initial settings must be speci ed when the unit is activated... - Page 13 DEVIreg™ Touch Press the hour numbers and use the < and > ar- rows to set the hour. Press to con rm. Press the minutes num- bers and use the < and > arrows to set the mi- nutes. Press to con- rm.
- Page 14 DEVIreg™ Touch On the SETUP informa- tion screen, press start. Use the < and > arrows to select whether only a floor sensor or a combi- nation of room and floor sensors should be used. Press to confirm. Note: A "room only" option may also be available. For details, see the "Maximum Floor Temperature"...
- Page 15 DEVIreg™ Touch Use the < and > arrows to select the ooring type. Press to con rm. 10. Use the < and > arrows to select the room type. Press to con rm. 11. Use the < and > arrows to select the approximate load of the heating ele- ment.
-
Page 16: Forecast
DEVIreg™ Touch 12. Use the < and > arrows to select whether the timer should be activated or not. Press to con- rm and end the initial thermostat setup. Skip Step 13. 13. Enter your web-gener- ated code. Then press to end the initial thermo- stat setup. - Page 17 DEVIreg™ Touch The forecast feature also optimises heating stop when switching from comfort temperature to economy tempera- ture. How to turn the forecast feature on and off. Touch the thermostat display to activate it, then press menu. Press SETTINGS in the bottom right corner of the menu.
-
Page 18: Window Open
DEVIreg™ Touch Press FORECAST. Then press ON to optimise heating start/stop or OFF to simply let the heating start/stop at the specified time. Press to confirm. To return to the normal temperature display, press the back arrow in the upper left corner of the screen until you get to the main menu, then press Window Open How to turn "window open detection"... -
Page 19: Maximum Floor Temperature
DEVIreg™ Touch Press WINDOW OPEN. Then press ON to tempo- rarily turn off heating in case of a sudden temper- ature drop in the room or OFF to let the thermostat heat during sudden tem- perature drops in the room. Press to con- firm. - Page 20 DEVIreg™ Touch Press SETTINGS in the bottom right corner of the menu. Then press IN- STALLATION and MAN- UAL SETUP. Press MAX. FLOOR. Then use the < and > arrows to set the allowed maxi- mum floor temperature. Press to confirm. To return to the normal temperature display, press the back arrow in the upper left corner of the screen until you get to the main menu, then press...
- Page 21 DEVIreg™ Touch If you break the small plastic seal on the back of the display module, e.g. using a screw- driver, it will be possible to set ture up to 45°. Furthermore, it will be possible to use only a room sensor.
- Page 22 DEVIreg™ Touch Ther- Examples of floor- Details Approximate setting for 25˚C resist- floor tempera- ance ture [m2K/ 0.05 8 mm HDF based > 800 28˚C laminate kg/m 0.10 14 mm beech par- 650 - 800 31˚C quet kg/m 0.13 22 mm solid oak >...
-
Page 23: Symbols
DEVIreg™ Touch Symbols The following symbols may appear in the upper left corner of the temperature display: Sym- What it means The thermostat is in manual mode, i.e. the timer function is off. The timer lets you automatically switch between economy and comfort temper- atures according to a predefined schedule. -
Page 24: Warranty
DEVIreg™ Touch Warranty Y E A R Disposal Instruction Installation Guide... - Page 25 DEVIreg™ Touch Installation Guide...
- Page 26 DEVIreg™ Touch Installation Guide...
- Page 27 This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. DEVI and the DEVI logo- type are trademarks of Danfoss A/S.
- Page 28 Devex Systems specialises in heating, cooling and insulation solutions for new and existing buildings in residential, commercial and industrial environments. For more information on any of our product lines, please contact us at: 1800 636 091 or info@devexsystems.com.au www.devexsystems.com.au Unit 5, 83 Bassett Street Mona Vale PO Box 707 Mona Vale NSW 1660 T 1800 636 091 F 02 9997 7852...
