- Page 1 Installation Instructions GB/DAS devireg 130, 131, and 132 ™...
-
Page 2: Table Of Contents
Contents: 1. Applications and functions. 2. Installation instructions. a. Installation of sensor for devireg 130, and 132. ™ b. Placement of devireg 130, 131, and 132. ™ c. Connection diagram for devireg 130, 131, and 132. ™ d. Trouble shooting. 3. -
Page 3: Applications And Functions

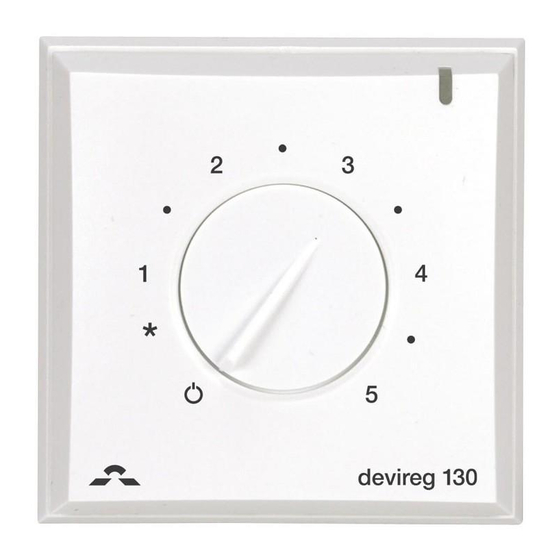

1. Applications and functions The devireg 130-series is a series of electronic ™ thermostats used for control of indoor heating. The devireg 130 is used for control of floor heating ™ installations. The thermostat is equipped with a floor sensor for control of the desired floor temperature. The devireg 131 is used for control of room heating ™... -
Page 4: Installation Instructions
2. Installation instructions 2.a Installation of sensor for devireg 130, and 132. ™ The floor sensor should be mounted in a 16 mm installation pipe which is sealed at the end to prevent penetration of concrete into the pipe. Minimum bending radius for the pipe is 50 mm. - Page 5 Release tab Min. Max. d132 temperature limiter...
-
Page 6: Connection Diagram For Devireg
2.c Connection diagrams for devireg 130, 131, and 132. ™ EFET 130 EFET 131 EFET 130 EFET 131 5-45°C 5-35°C 5-45°C 5-35°C M aks 16A Maks 16A Maks 16A M aks 16A Maks 16A Maks 16A EFET 132 5-35°C 5-35°C Temperature limiter 50°C Maks 16A... -
Page 7: Trouble Shooting
2.d Trouble-shooting. Control of functioning: If the heat is not turned on by activating the thermostat, check the residual current device (RCD) and safety devices before con- tacting an authorized electrician. Fault: No heat General: First of all, make sure that all cables, connected to the thermostat, are properly installed –... - Page 8 = W (at 230 V~) External sensor input: NTC – only for devireg 130 and devireg 132 Disconnect the external NTC sensor at the terminal NTC, on the thermostat.
- Page 9 The measured value should be within the specified range according to the technical specifications. If not, replace the NTC sensor. Fault: Constant heat Floor sensor interrupt If disconnection of the external sensor (NTC) occurs, the thermostat will be constant on (activated thermostat – red light). Disconnect the external NTC sensor at the terminal NTC, on the thermostat.
-
Page 10: Technical Specifications
3. Technical specifications: Technical data Operation voltage: 230 VAC +10% / -20%, 50 Hz Power consumption: Max. 5W Relays: 250V ~ 16A - Resistive load: 1A (power factor 0.3) - Inductive load: NTC 15 kOhm at 25° C Sensing unit: Sensing values: 42 kOhm - 0°C:... - Page 11 All work will be EU directive 85/374/CEE as well as all appli- invoiced in full if DEVI is required to inspect cable legislation in the individual countries on or repair faults that have arisen as a result of the following conditions: any of the above.
- Page 12 Warranty is granted to: ™ Name: Address: Postal code: Phone: Please Observe! In order to obtain the DEVI Warranty, the following must be ™ carefully filled in. See other conditions on the overleaf. Electrical Installation by: Installation date: Type of thermostat:...
