  • Page 2: Table Of Contents

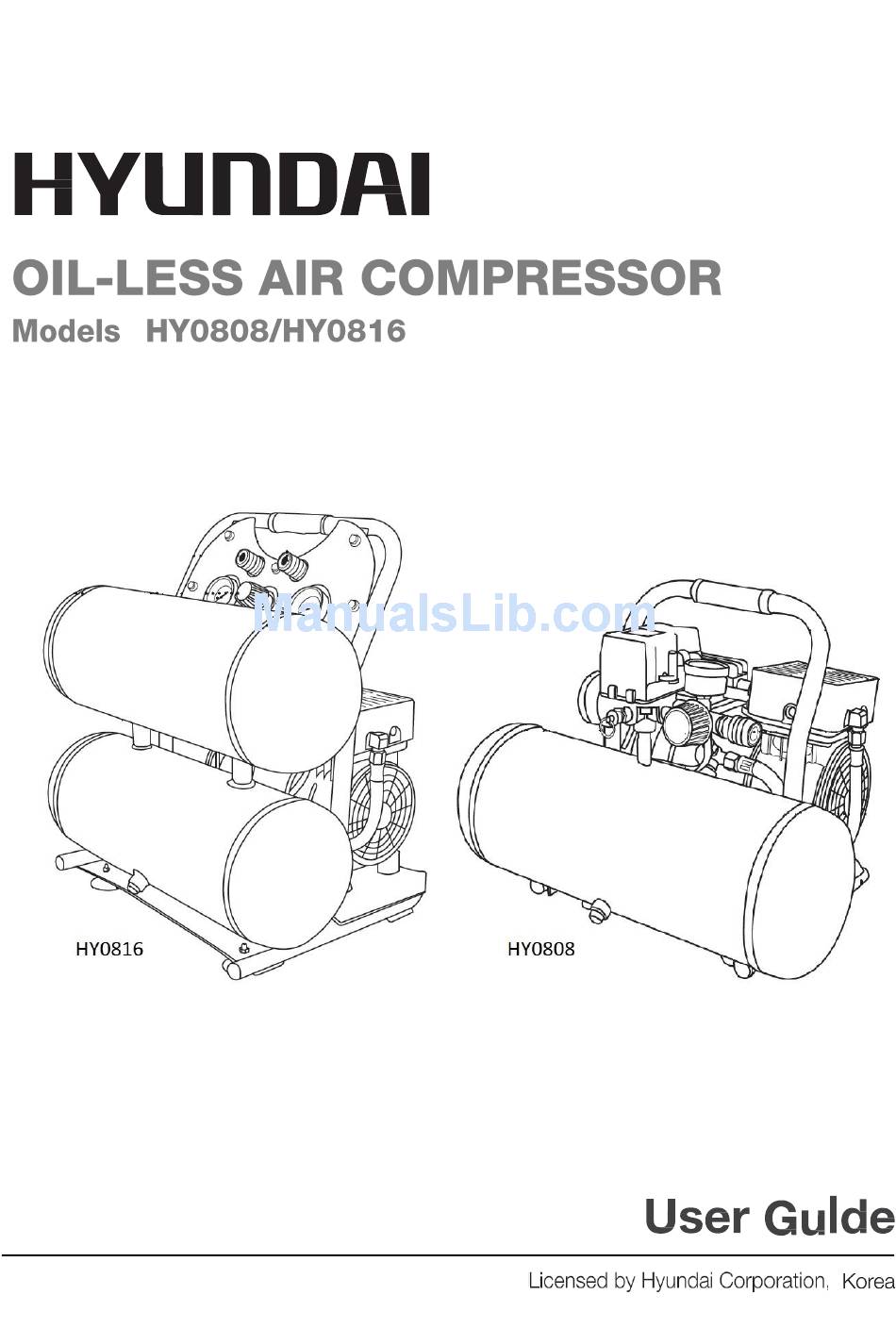

    CONTENTS o’s Page N Section Description RECORD OF IDENTIFICATION NUMBERS 1. SAFETY 4 - 8 2. BOX CONTENTS – ASSEMBLY - PARTS 3. INSTALLATION & EARTHING 4. MAINTENANCE 11 – 12 5. STORAGE 6. TROUBLESHOOTING 12 – 13 7. SPECIFICATIONS 8.
  • Page 3 Record of Identification Numbers If you need to contact Service department for information and servicing call on 01646 687880 (Service Option 2). Please have ready the Product Model and serial numbers. Please make a note of the following details; Date of Purchase Dealers Name Dealers Phone number Model Number...

  • Page 4: Safety

    1. SAFETY. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the compressor is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised person/s to operate this compressor.
  • Page 5 1.3. Electrical Safety. 1.3.1. Do not touch the mains plug with wet hands! Always disconnect the mains plug by pulling the plug and not the cable. 1.3.2. The compressor must be connected to earthed sockets which have been properly installed, earthed and tested. Mains voltage and fuse must comply with the technical data.
  • Page 6 1.5. Air Tank warning. Drain liquid from air tank daily, or after each use, using the drain valve located on the bottom of the lower air tank. Failure to properly drain liquid from the tank will cause rust from the moisture build-up, which weakens the tank and could lead to a violent tank explosion.
  • Page 7 1.9. Air tools and Accessories. Do not exceed the pressure rating of any air tools, spray guns, accessories, or inflatables including tyres etc. Excess pressure can cause them to explode, resulting in serious injury. Follow the manufacturers recommended pressure settings for all air tools, air accessories and inflatables including tyres etc.
  • Page 8 1.13.3. Do not direct paint of other sprayed material at the compressor. Locate the compressor as far away from the spraying area as possible to minimise overspray accumulation on the compressor. 1.13.4. When spraying or cleaning with solvents or toxic chemicals, follow the instructions provided by the chemical manufacturer.
  • Page 9 2. BOX CONTENTS - ASSEMBLY - PARTS 2.1. Contents; 2.1.1. Air compressor. 2.1.2. Operation manual. 2.1.3. Air filter. 2.2. Assembly; 2.2.1. Attach the air filter to the top right side of motor head. 2.2.2. Screw air filter into the motor head. 2.3.

  • Page 10: Installation & Earthing

    3. INSTALLATION & EARTHING 3.1. Installation. 3.1.1. The compressor must be used on a stable and level surface. The air compressor must be used in a clean and well ventilated area. The compressor requires an unobstructed airflow and must be located a minimum of 450mm from any wall or other obstructions. 3.2.

  • Page 11: Maintenance

    4. MAINTENANCE 4.1. Draining Air Tank. 4.1.1. The frequency at which you should drain the air tank depends on the environmental conditions and the amount of operating time logged. 4.1.2. The average draining frequency is every two/three days. 4.1.3. Place the air compressor above a container capable of holding water. 4.1.4.

  • Page 12: Storage

    5. STORAGE 5.1. Before storing for a prolonged period of time carry out the following; 5.1.1. Turn off the power supply. 5.1.2. Disconnect the power lead from the power supply. 5.1.3. Pull the relief valve and release all air pressure form the tank. 5.1.4.

  • Page 13: Specifications

    (8 Bar/116PSi) and the safety valve vents air 7. SPECIFICATIONS Model HY0808 HY0816 Voltage - V Number of phases Frequency – Hz Connection method/Cable length m 3 pin plug - BS1363A/1.4 3 pin plug - BS1363A/1.4 Motor power hp/kw 0.75/0.56...

  • Page 14: Environmental

    8. ENVIRONMENTAL 8.1. Do not dispose of electric equipment together with household waste material! In observance of European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

  • Page 15: Declarations Of Conformity

    10. DECLARATIONS OF CONFORMITY 10.1. Genpower Ltd confirms that this Hyundai product conform to the following CE Directives; 10.1.1. 2002/95/EC Restriction of Hazardous Substances 10.1.2. 2004/108/EC EMC Directive 10.1.3. 2006/42/EC Machinery Directive 10.1.4. 2006/95/EC Low Voltage Directive 10.1.5. 87/404/EC Simple Pressure Directive...
  • Page 16 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
