- Page 1 SILENT AIR COMPRESSOR HYAC6-07S HYAC24-1S HYAC50-2S HYAC100-3S User's manual...
- Page 2 AIR COMPRESSORS CONTENTS Original instructions Warranty Description of symbols Overall security Tool safety Air compressor safety Product Familiarization Product unpacking Before using Operation Maintenance Problem solving ORIGINAL INSTRUCTIONS Thank you for purchasing this compressor. This manual contains the information necessary for the safe and effective operation of this product. This product has unique features, and even if you are familiar with similar products, it is necessary to read this manual carefully to ensure that you fully understand the instructions.
- Page 3 AIR COMPRESSORS DESCRIPTION OF SYMBOLS The nameplate of your compressor may show symbols. These represent important information about the product or instructions on its use. Wear hearing protection Wear eye protection Wear respiratory protection Wear head protection Use protección para las manos Read the instruction manual Caution! Class I Construction (Earth Protection)
- Page 4 AIR COMPRESSORS GENERAL SECURITY WARNING! When using power tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following safety information. Please read all of these instructions before attempting to operate this product and save these instructions for future use.
- Page 5 AIR COMPRESSORS GENERAL SECURITY Dress appropriately - Do not wear loose clothing or jewelry, which may get caught in moving parts - Proper safety footwear is recommended when working outdoors - Use some utensil to contain long hair Wear protective gear - Wear safety glasses - Wear face or dust mask if work operations create dust WARNING: Failure to wear proper clothing or protective equipment may cause...
- Page 6 AIR COMPRESSORS GENERAL SECURITY Remove wrenches - Get in the habit of checking to see that wrenches are removed from the tool before turning it on. Avoid Unintentional Starting - Make sure the switch is in the "off" position when plugging into an outlet or inserting a battery pack, or when lifting or carrying the tool.
- Page 7 AIR COMPRESSORS GENERAL SECURITY Mains plugs must match the outlet - Never modify the plug in any way. Do not use adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. If using a power tool outdoors, use a Residual Current Device (RCD) - Make sure the switch is in the "off"...
- Page 8 AIR COMPRESSORS TOOL SAFETY ro ectile Hazards Be aware that failure of the work piece or accessory, or even the inserted tool, can result in high-velocity projectiles. Always wear impact resistant eye protection while operating this tool. The degree of protection required must be evaluated for each use. For aerial work, wear a safety helmet.
- Page 9 AIR COMPRESSORS TOOL SAFETY Repetitive Motion Hazards When using this tool to perform work-related activities, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. When using this tool, the operator must assume a comfortable posture while maintaining a safe posture and avoiding awkward or off-balance postures.
- Page 10 AIR COMPRESSORS TOOL SAFETY Dust and smoke hazards Where dust or fumes are created, the priority should be to control them at the point of Where dust or fumes are created, the priority should be to control them at the point of Select, maintain and replace the consumable / insert tool as recommended in the instruction manual, to avoid unnecessary buildup of dust or fumes.
- Page 11 AIR COMPRESSORS TOOL SAFETY Vibration Hazards Wear warm clothing when working in cold conditions and keep your hands warm and dry. Operate and maintain the sander or polisher as recommended in the instruction manual to avoid an unnecessary increase in vibration levels. Hold the tool with a light but secure grip, taking into account the required manual reaction forces, as the risk of vibration is generally greater when the grip force is higher.
- Page 12 AIR COMPRESSORS Keep bystanders away. Children and bystanders should be kept away from the compressor. Unintentional intercalation with the compressor is dangerous. Do not abuse cables and hoses. Keep cables and hoses away from heat, liquids and sharp edges. NEVER try to force cables and hoses beyond their fully extended reach, or allow them to become entangled.

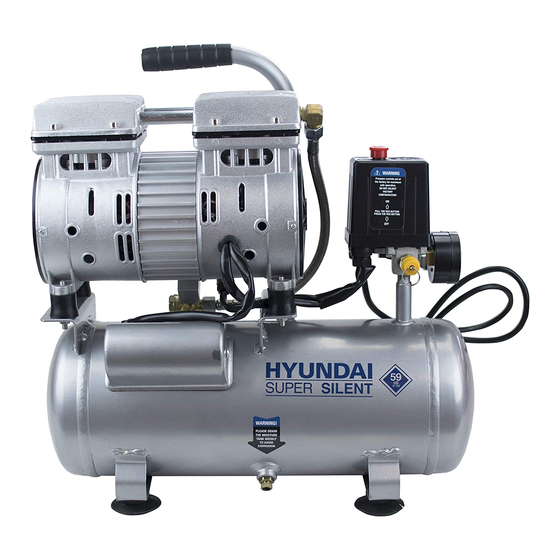

- Page 13 AIR COMPRESSORS FAMILIZATION WITH THE PRODUCT Reserve tank Compressor Crankcase breather Cylinder head (not shown) On/off switch Pressure gauge Carrying handle Quick connector Pressure regulator Rubber foot Purge tap Transport wheel Air filter Axis Fixing bolt...
- Page 14 AIR COMPRESSORS UNPACKING THE PRODUCT WARNING: This device is very heavy and should NOT be unpacked and handled by one person. Unpack and carefully inspect your tool. Become fully familiar with all its features and functions. Make sure all parts of the tool are present and in good condition. If any parts are missing or damaged, have them replaced before using this tool.
- Page 15 AIR COMPRESSORS FUNCTIONING WARNING: Always wear proper protective equipment, including eye, respiratory, and hearing protection, when working with this tool. Turn on and stop Check that the compressor is disconnected from all air tools or air lines and that the ON/STOP switch (6) is pressed. Connect the machine to the main power supply.
- Page 16 AIR COMPRESSORS MAINTENANCE WARNING: ALWAYS wear proper personal protective equipment, including eye protection and oil resistant gloves, when servicing this compressor. ALWAYS ensure adequate ventilation. WARNING: ALWAYS turn off the compressor and wait until all components have completely cooled before cleaning or performing any maintenance. Note: The maintenance schedule should be adjusted according to usage and environment.
- Page 17 AIR COMPRESSORS Cleaning Keep your tool clean at all times. Dirt and dust will cause internal parts to wear out quickly and shorten the life of the machine. Clean the body of your machine with a soft brush or dry cloth. If available, use clean, dry compressed air to blow through the vent holes.
- Page 18 AIR COMPRESSORS Air Filter Maintenance WARNING: Never operate this compressor without the air cleaner element installed, as this will cause rapid wear of internal components, causing permanent internal damage and shortening the life of this compressor. Separate the air filter (15) from the cylinder head (4), turning it counterclockwise. Remove the wing nut from the top of the air cleaner assembly and remove the air cleaner element from inside the assembly.
- Page 19 AIR COMPRESSORS Storage WARNING: Make sure that the ON/OFF switch (6) is in the "OFF" position, that the electrical current is disconnected from the mains and that the air storage tank (1) is depressurized before transporting or storing -Nar the air compressor. Air compressor bearing This air compressor provides a carrying handle (9) located at the front.
- Page 20 Tighten leaking connection points. If the problem persists, contact a qualified technician The air compressor is producing increased sound / Bearing, piston or valve damage Contact a qualified technician vibration / metal knock levels TECHNICAL DATA HYAC6-07S Problema HYAC24-1S Problema HYAC50-2S Problema HYAC100-3S...
- Page 21 Imported by: GRV POWER PRODUCTS, S.L. Av. Àlguema, 8A 17771 Santa Llogaia d’Àlguema (Girona) T: (+34) 972 673 836 www.grvpower.com Licensed by HYUNDAI CORPORATION HOLDINGS, KOREA...
