Summary of Contents for Hyundai HY3150S
-
Page 2: Table Of Contents
INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 MACHINE SPECIFIC SAFETY 7 - 8 PREPARATION 9 - 10 STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE MAINTENANCE 11 - 12 TROUBLESHOOTING SPECIFICATION RECYCLING & PRODUCT DISPOSAL DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY MANUAL UPDATES... -
Page 3: Safety
1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. - Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
- Page 5 1.20 General Fuel Safety (where applicable). CAUTION ALL FUELS ARE FLAMABLE Fire Hazard – keep fuel away from all sources of ignition for example heaters. 1.21 Lamps, sparks from grinding or welding. 1.22 DO NOT carry out hot work on tanks that have contained fuel. 1.23 ALWAYS keep the work area tidy.
- Page 6 1.46 All trailing cables should be routed so as not to cause any kind of trip hazard. 1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves. 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte.
-
Page 7: Machine Specific Safety
recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur. 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. - Page 8 2.12 DO NOT operate the compressor within the vicinity of flammable liquids, gases or solids. 2.13 DO NOT touch the compressor cylinder, cylinder head or pipe from the head to the tank as these may be hot and will remain so for some time after shutdown. 2.14 DO NOT operate the compressor without all the safety guards in place.
-
Page 9: Preparation
3. PREPERATION NOTE Before starting the compressor, remove the travel plugs and install the air filter and crank case breather plug. Position the compressor in a flat, level surface with a maximum permissible inclination of 10° Site in a well-ventilated area. If the surface is inclined and smooth, check that the compressor cannot move while in operation. -
Page 10: Starting Procedure
Keep the voltage within ±4% of the rated value. Insert the power supply cord into the power supply socket. TEST RUN NOTE Before using the air compressor for the first time, complete a test run as follows. Move the power switch to the OFF position. 3.10 Check the oil level is in the red circle of the glass sight window. -
Page 11: Stopping Procedure
5. STOPPING PROCEDURE Move the power switch to the OFF position. Unplug the compressor. Reduce the pressure in the tank through the air supply hose. 6. USING THE MACHINE To determine the correct working pressure and air flow requirements for any piece of equipment, check the corresponding manual. - Page 12 AIR FILTER The air filter is designed to reduce noise and help prevent particulates in the air, from entering and damaging the air compressor. After being used for a period of time, the air filter will become clogged. This will reduce the air intake capabilities of the compressor, reducing performance. Therefore, the air filter must be cleaned or replaced regularly.
-
Page 13: Troubleshooting
8. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Let the compressor build up pressure in the tank to maximum pressure if possible. Brush soapy water on the air Pressure drop in the tank Air leaks at the connections connections and look for air bubbles. -
Page 14: Specification

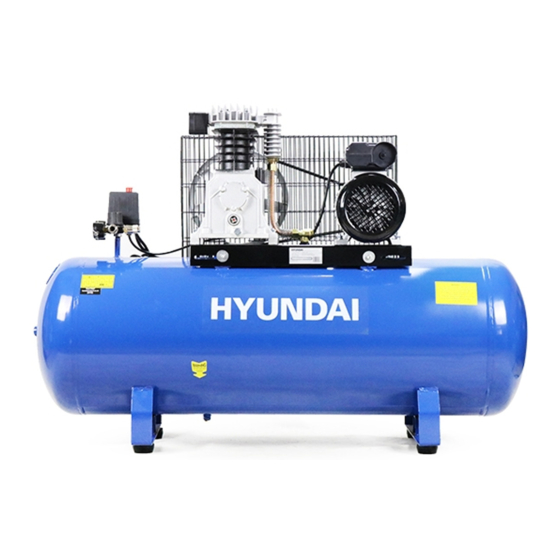

9. SPECIFICATION Model HY3150S Power - kw/hp 2.2 / 3 Displacement - L/min 10.6 Pressure – bar/psi 10 / 115 Rotating Speed – rpm 1050 Tank Capacity – L Dimensions - mm (LxWxH) 1310 x 500 x 880 Weight – kg... -
Page 15: Recycling & Product Disposal
10. RECYCLING AND PRODUCT DISPOSAL 10.0 We do not offer a take back scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed on to you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 16: Declaration Of Conformity
11. DECLARATION OF CONFORMITY Genpower LTD confirms that these Hyundai products conform to the following CE Directives. 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by: Genpower Ltd... -
Page 17: Contact Details
12. CONTACT DETAILS 12.0 POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. 12.1 TELEPHONE +44(0) 1646 687880 12.2 +44(0) 1646 686198 12.3 SUPPORT aftersales@genpower.co.uk 12.4 WEBSITE www.hyundaipowerequipment.co.uk 13. WARRANTY To register your machine for the Manufacturer’s Warranty, please visit: 13.0 https://hyundaipowerequipment.co.uk 13.1...
