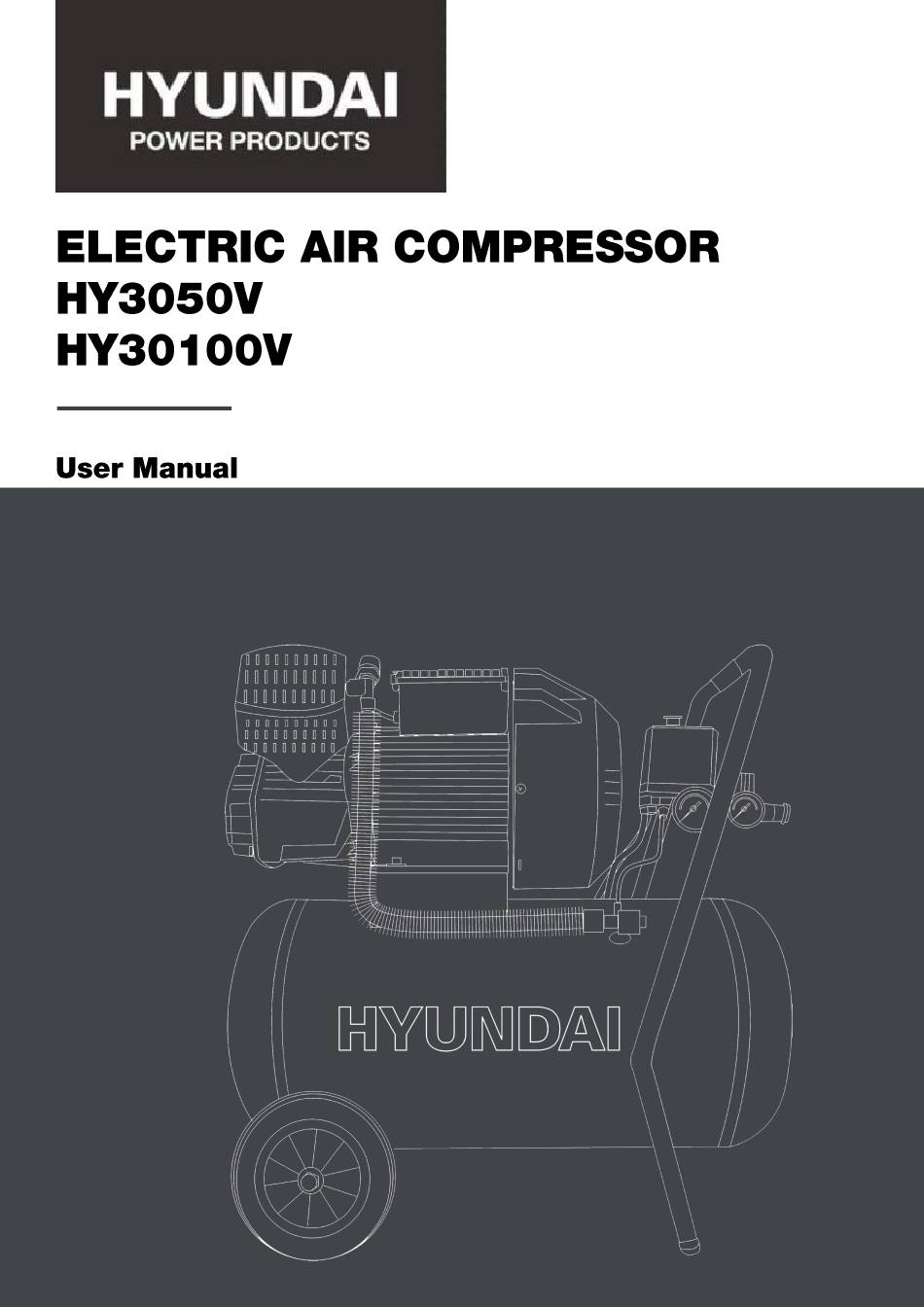

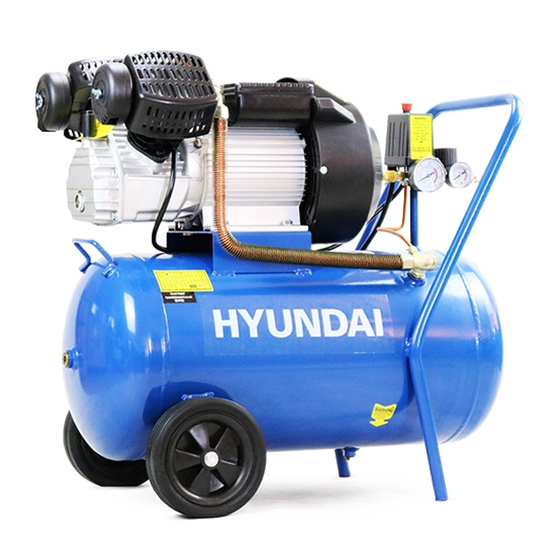

Hyundai HY3050V User Manual

Electric air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY3050V and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HY3050V

Summary of Contents for Hyundai HY3050V

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 MACHINE SPECIFIC SAFETY 7 - 8 ASSEMBLY PREPERATION STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE MAINTENANCE 12 - 13 TROUBLESHOOTING TROUBLE SHOOTING STORAGE & TRANSPORTATION RECYCLING AND PRODUCT DISPOSAL DECLARATION OF CONFORMITY CONTACT DETAILS...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.20 General Fuel Safety (where applicable). CAUTION ALL FUELS ARE FLAMABLE Fire Hazard – keep fuel away from all sources of ignition for example heaters. 1.21 Lamps, sparks from grinding or welding. 1.22 DO NOT carry out hot work on tanks that have contained fuel. 1.23 ALWAYS keep the work area tidy.
  • Page 6 1.46 All trailing cables should be routed so as not to cause any kind of trip hazard. 1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves. 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte.

  • Page 7: Machine Specific Safety

    recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur. 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly.
  • Page 8 YOU MUST drain condensation from the tank daily and inspect side walls for corrosion every 12 months. The pressure safety valves on Hyundai compressors have been updated to comply 2.24 with the latest CE certification standards. The pressure release pull ring has been removed from the valve due to the pull ring being incorrectly used to drain the air from the compressor tank, causing excessive wear to this safety valve.

  • Page 9: Assembly

    3. ASSEMBLY NOTE Before assembly, make sure the air tank is not damaged. Inspect all parts for damage and check that all pipes are firmly attached. DO NOT use the air compressor if any damage is found. If damaged contact your dealer. Attach both air filters to the top of the motor heads by screwing in to place.

  • Page 10: Preperation

    4. PREPERATION WARNING Seek assistance when removing the compressor from its packaging. Remove the compressor from its packaging and inspect for any damaged parts. If anything is found to be missing or damaged, contact your supplier. Take care to transport the compressor correctly, do not overturn it or lift it with hooks or ropes.

  • Page 11: Starting Procedure

    TEST RUN NOTE Before using the air compressor for the first time, complete a test run as follows: 4.10 Turn the power switch to the OFF Position. 4.11 Check the oil level is in the red circle of the glass sight window. 4.12 Plug the power supply cord into a power supply socket.

  • Page 12: Stopping Procedure

    6. STOPPING PROCEDURE Turn the power switch to the OFF position. Unplug the compressor. Reduce the pressure in the air tank through the air supply hose. 7. USING THE MACHINE To determine the correct working pressure and air flow requirements for any piece of equipment, check the corresponding manual.
  • Page 13 With compressed air in the tank, slowly turn the drain knob to the open position. The water in the tank will drain out. Once the water has drained, turn the drain knob to the closed position. Draining the tank reduces the risk of corrosion inside the tank. AIR FILTER The air filter is designed to reduce noise and help prevent particulates in the air from entering and damaging the air compressor.

  • Page 14: Troubleshooting

    9. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Pressure drop in the tank Air leaks at the connections Let the compressor build up pressure in the tank to maximum pressure if possible. Brush soapy water on the air connections and look for air bubbles.
  • Page 15 10. SPECIFICATION MODEL HY3050V HY30100V Power – kW / HP 2.2 / 3 2.2 / 3 Displacement – L/min 11.8 11.8 Pressure – Bar / PSI 8 / 115 8 / 115 Tank Size – L 2850 2850 Dimensions – mm (LxWxH)

  • Page 16: Recycling And Product Disposal

    11. RECYCLING AND PRODUCT DISPOSAL 11.0 We do not offer a take back scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 17: Declaration Of Conformity

    12. DECLARATION OF CONFORMITY Genpower LTD confirms that these Hyundai products conform to the following CE Directives. 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by: Genpower Ltd...

  • Page 18: Contact Details

    13.4 WEBSITE 14. WARRANTY Proof of purchase will be required before you make a warranty claim. 14.0 Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk 15. MANUAL UPDATES 15.0 Our manuals are constantly being reviewed and updated.
  • Page 20 Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by GENPOWER LTD for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
