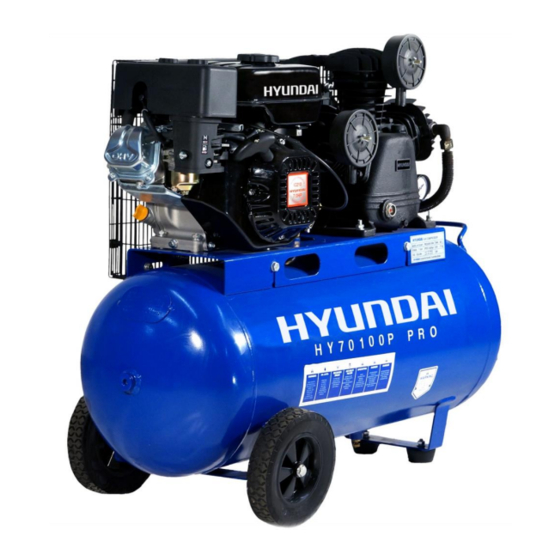

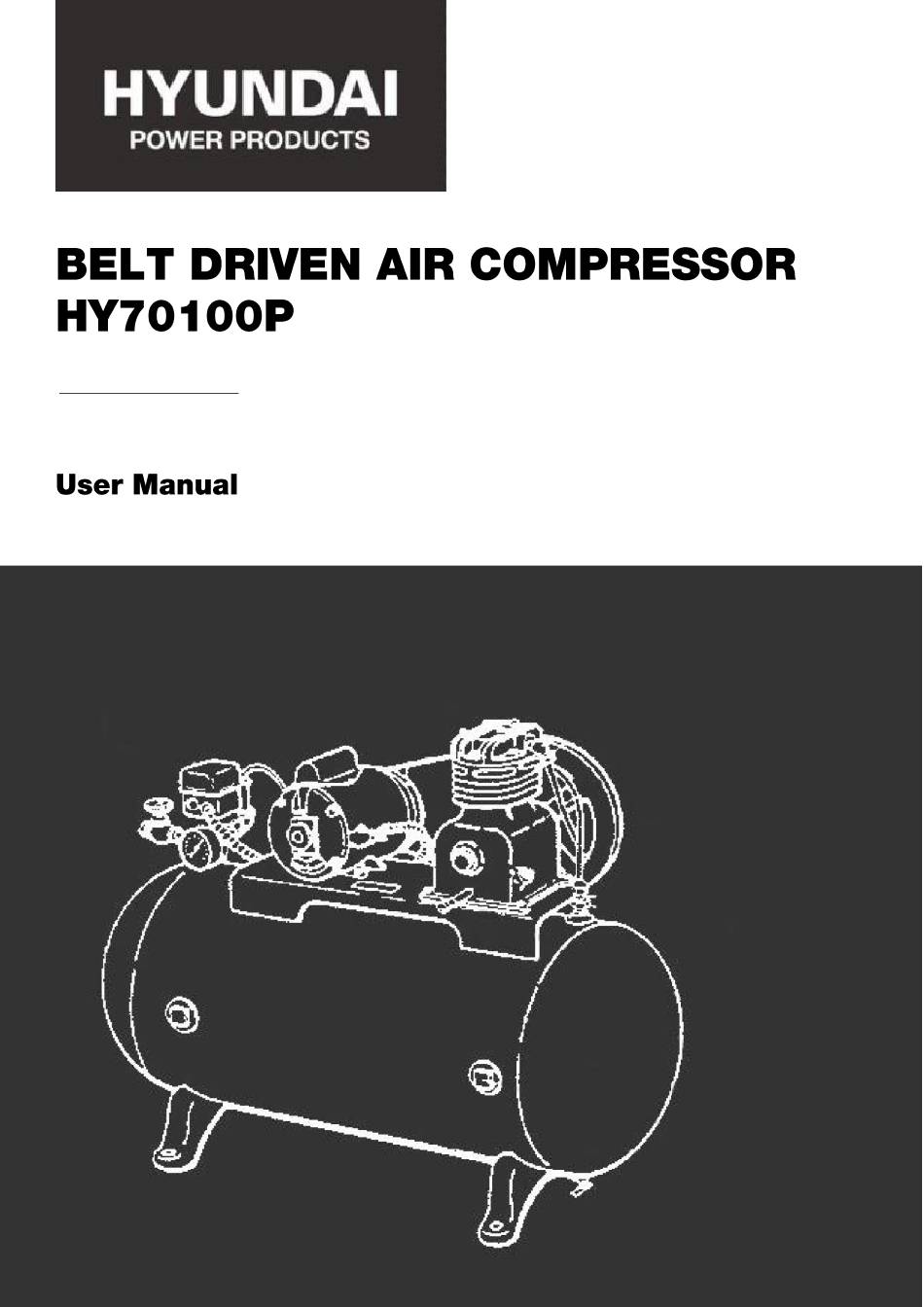

Hyundai HY70100P User Manual

Belt driven air compressor
Hide thumbs Also See for HY70100P:
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY70100P and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HY70100P

Summary of Contents for Hyundai HY70100P

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 MACHINE SPECIFIC SAFETY 7 - 8 PREPERATION STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE MAINTENANCE 11 - 14 SPECIFICATION TROUBLESHOOTING RECYCLING AND PRODUCT DISPOSAL DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY MANUAL UPDATES...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.20 General Fuel Safety (where applicable). CAUTION ALL FUELS ARE FLAMABLE Fire Hazard – keep fuel away from all sources of ignition for example heaters. 1.21 Lamps, sparks from grinding or welding. 1.22 DO NOT carry out hot work on tanks that have contained fuel. 1.23 ALWAYS keep the work area tidy.
  • Page 6 1.46 All trailing cables should be routed so as not to cause any kind of trip hazard. 1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves. 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte.

  • Page 7: Machine Specific Safety

    recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur. 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly.
  • Page 8 2.13 DO NOT operate the compressor within the vicinity of flammable liquids, gases or solids. 2.14 DO NOT touch the compressor cylinder, cylinder head or pipe from the head to the tank as these may be hot and will remain so for some time after shutdown. 2.15 DO NOT operate the compressor without all safety guards in place.

  • Page 9: Preperation

    3. PREPERATION WARNING Seek assistance when removing the compressor from its packaging. Remove the compressor from its packaging and inspect for any damaged parts. If anything is found to be missing or damaged, contact your supplier. Take care to transport the compressor correctly, do not overturn it or lift it with hooks or ropes.

  • Page 10: Starting Procedure

    4. STARTING PROCEDURE NOTE ALWAYS check the engine oil and pump oil before starting. Severe engine or pump damage may otherwise result. Check that the air outlet valve on the tank end-plate is closed. Ensure that the engine oil is topped up. Turn the ignition switch to the ON position and move the choke lever to half way.

  • Page 11: Stopping Procedure

    5. STOPPING PROCEDURE To stop the compressor, turn the ignition switch to the OFF position. 6. USING THE MACHINE To determine the correct working pressure and air flow requirements for any piece of equipment check the corresponding manual. Be aware that the air flow figure stated on tools and accessories refers to ‘free air delivery’...
  • Page 12 Check pump oil level. Check engine oil level. Fill Oil to This Level Check all guards and covers are secure. Check for fuel and oil leaks. Check for air leaks. Check for unusual noises or vibrations. Operations to be carried out weekly (or more frequently in dusty environments). 7.10 Remove the air filter element by undoing the screw and removing the filter cover.
  • Page 13 7.13 Clean the compressor. DO NOT use a pressure washer or hose pipe to clean the compressor as water could penetrate critical components and cause machine failure. 7.14 Check that the relief valve vents pump output and reduces engine speed when maximum pressure is reached.
  • Page 14 Every 100 Maintenance Operations Daily Weekly Monthly Hours Drain condensation from tank Check for oil leaks Check oil levels Check guards and covers Check for noise and vibrations Check for air leaks Clean compressor Clean air filters Check safety release valve Check belt tension Change pump oil Replace air filter...

  • Page 15: Specification

    8. SPECIFICATION Model HY70100P Engine Type IC210 Type Single Cylinder, 4 Stroke OHV Engine Size - cc Oil Capacity - ml Fuel Capacity - l Horsepower – hp/kw 7 / 5.25 Rated Power @ 3600rpm – kw Fuel Type Unleaded Petrol Noise Level dB(A) Engine Speed –...

  • Page 16: Troubleshooting

    9. TROUBLESHOOTING Fault Cause Remedy Run compressor to max pressure, switch off. Brush soap solution over connections and look for Pressure drop in the tank Air leaks at connections bubbles. Tighten connections showing leaks. If problem persists, contact your dealer. Pressure switch valve leaks Discharge air tank pressure.

  • Page 17: Recycling And Product Disposal

    10. RECYCLING AND PRODUCT DISPOSAL 10.0 We do not offer a take back scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 18: Declaration Of Conformity

    11. DECLARATION OF CONFORMITY Genpower Ltd confirms that these Hyundai products conform to the following CE Directives. 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by: Genpower Ltd...

  • Page 19: Contact Details

    12. CONTACT DETAILS 12.0 POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. 12.1 TELEPHONE +44 (0) 1646 687880 12.2 +44 (0) 1646 686198 12.3 SUPPORT aftersales@genpower.co.uk 12.4 WEBSITE www.hyundaipowerequipment.co.uk 13. WARRANTY To register your machine for the Manufacturer’s Warranty, please visit: 13.0 https://hyundaipowerequipment.co.uk/warranty 13.1...
