  • Page 1 HY0392 Manual...
  • Page 2 HYUNDAI HY0392 Licensed by Hyundai Corporation Holdings, Korea. HY0392_Manual_EN_2024-02-26...
  • Page 3 HY0392 This product is supported by Midland Power. Contact us directly for assistance and warranty help. Do not return this product to store. You must register online for your warranty to be valid. It only takes a minute, do it now while you still have your purchase receipt.
  • Page 4 HYUNDAI Thanks for choosing Hyundai! You're excited to get started, we'll keep this brief. READ THIS ENTIRE GUIDE BEFORE USING THIS PRODUCT AND SAVE FOR LATER USE. This user guide contains important instructions including safety, setup, operation, and maintenance that must be followed.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. Safety 2. Learn About Your Air Compressor 2.1 Component Identification 2.2 Control Functions 2.3 Make Sure You Have Everything 3. Getting Started 3.1 Initial Inspection 3.2 Install The Air Filter 4. Operation 4.1 Starting Your Air Compressor 4.2 Stopping your Air Compressor 5.

  • Page 6: Safety

    HYUNDAI 1. SAFETY DANGER! NEVER breathe air from the air compressor. The air may contain carbon monoxide, toxic vapours, and/or solid particles. Compressed air will damage your lungs and may cause injury or death. 1.1 OPERATOR SAFETY WARNING!   ALWAYS inspect the air compressor, air hose, and air tools for damage or obstruction before each use.
  • Page 7 HY0392   All air tools have a recommended air pressure. Operating an air tool at a pressure that exceeds its rating may damage the tool and causes a risk of bursting. Before using any air tool, check the manufacturer’s recommended air pressure and set the outlet pressure accordingly.
  • Page 8 HYUNDAI 1.3 MAINTENANCE SAFETY WARNING!   ALWAYS release pressure, shut power OFF, and disconnect hose before performing maintenance or repairs.   NEVER modify or repair the air tank. Never drill, weld, or make any modifications of any kind to the air tank or its attachments.

  • Page 9: Learn About Your Air Compressor

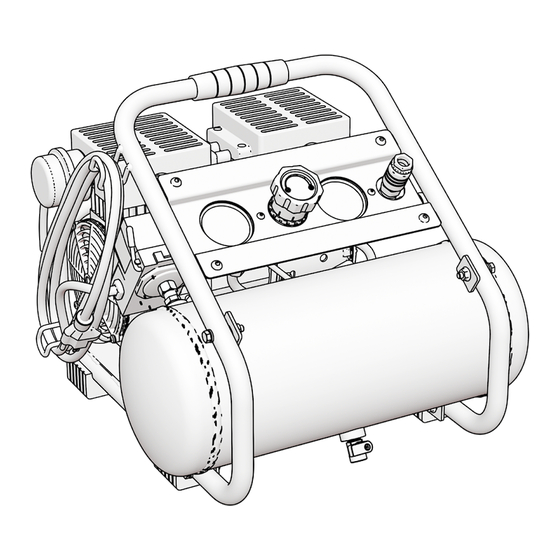

    HY0392 2. LEARN ABOUT YOUR AIR COMPRESSOR This section will show you how to identify key parts of your air compressor. Going over the terminology below will make sure we’re on the same page. 2.1 COMPONENT IDENTIFICATION Air Outlet Power Switch...

  • Page 10: Control Functions

    HYUNDAI Outlet Pressure Gauge Tank Pressure Gauge Air Pressure Regulator Knob 2.2 CONTROL FUNCTIONS Air Pressure Regulator Knob   Controls the air pressure that will be delivered to your air tool.   To increase the pressure, turn the knob clock wise, and to decrease the pressure, turn the knob counterclockwise.

  • Page 11: Make Sure You Have Everything

    HY0392 Drain Valve   Used to drain excess moisture and condensation from the tank. Tank Pressure Gauge   Indicates the reserve air pressure in the tank. Output Pressure Gauge   Indicates the outgoing air pressure as set by the air pressure regulator knob.

  • Page 12: Getting Started

    HYUNDAI 3. GETTING STARTED 3.1 INITIAL INSPECTION All air compressors are inspected before leaving the factory, but it is possible that poor handling during transport caused some damage. Fully inspect the air compressor from top to bottom before first use. If any parts are found to be damaged, contact customer support for help, we’ve got you covered.

  • Page 13: Operation

    HY0392 4. OPERATION 4.1 STARTING YOUR AIR COMPRESSOR NOTE   ALWAYS inspect air compressor, air hose, and air tools for damage or obstruction before each use. Repair or replace damaged items before use. Place air compressor on a level surface.

  • Page 14: Stopping Your Air Compressor

    HYUNDAI 4.2 STOPPING YOUR AIR COMPRESSOR DANGER! ALWAYS use ear and eye protection when draining the air tank, escaping air may contain moisture and debris. Turn power switch to OFF. Unplug the power cord from receptacle. Turn regulator knob counter-clockwise until the outlet pressure gauge reads 0-PSI.

  • Page 15: Maintenance

    HY0392 5. MAINTENANCE WARNING! Shut OFF the air compressor, unplug from the power source, drain the air tank, and allow one hour to cool after use before any maintenance is performed. Proper maintenance is important to ensure safe and trouble-free operation. Improper maintenance or neglect may cause malfunction leading to serious injuries or death.

  • Page 16: Draining The Air Tank

    HYUNDAI 5.2 DRAINING THE AIR TANK WARNING! ALWAYS use ear and eye protection when draining the air tank, escaping air may contain moisture and debris. Condensation will form inside the air tank. Make sure to completely drain condensed water from the tank after each use to prevent rust and thinning of air tank.

  • Page 17: Checking The Safety Relief Valve

    HY0392 5.4 CHECKING THE SAFETY RELIEF VALVE WARNING! The safety relief valve is designed to prevent system failures due to overpressure and is pre-set by the manufacturer. NEVER modify the safety relief valve. Replace the valve immediately if it leaks air continuously.

  • Page 18: Storage

    HYUNDAI 6. STORAGE NOTE   DO NOT store the compressor in areas that are humid or subject to temperature fluctuations. The air tank is made from aluminum, a metal highly resistant to rust. However, storing the compressor in a humid...

  • Page 19: Troubleshooting

    HY0392 7. TROUBLESHOOTING Common issues can be fixed by following these steps. If the unit will not function after following these steps, contact customer support before attempting to use or further repair the product. Problem Solution Drain the air tank, then remove and clean the check valve.
  • Page 20 HYUNDAI 8. TECHNICAL SPECIFICATIONS SPECIFICATIONS PARAMETERS Type Portable Electric Air Compressor Horsepower Voltage 120V Peak Amperage Running Amperage Air Delivery @40 PSI 3.1 SCFM Air Delivery @90 PSI 2.1 SCFM Pump Type Piston Rated Speed 1750rpm Cylinder Material Aluminum Alloy...

  • Page 21: Limited Warranty

    HY0392 9. LIMITED WARRANTY This product is distributed by: Midland Power Inc. 376 Magnetic Drive, Toronto, ON M3J 2C4, Canada Warranty Beginning at the time of retail purchase and for the duration of the warranty period Midland Power Inc. (Midland) warrants that Equipment manufactured by it is warranted to be free from defects in material and workmanship.
  • Page 22 HYUNDAI spark plugs, gaskets, seals, fasteners, wires, tubes, pipes, fittings, wheels, batteries, and other expendables susceptible to natural wear; g. Any accessory or attachment. Any battery supplied with this Equipment is considered a consumable item and is excluded from this warranty. Batteries can be damaged by shock, shorting terminals, heat, acid spillage, neglect, and other factors.
  • Page 23 HY0392 Emission Control System Warranty Parts: This list applies to parts supplied by Midland Power Inc. and does not cover parts supplied by the equipment manufacturer. Please see the original equipment manufacturer’s emissions warranty for non-Midland Power Inc. parts. Consumable parts are covered up to a maximum of 30 days.
  • Page 24 HYUNDAI Enjoy! Be sure to check www.hyundaipower.ca for updates regarding your product.
  • Page 25 HY0392 Customer Service Online: www.hyundaipower.ca E-mail: support@hyundaipower.ca Toll Free: 1-877-528-3772...
  • Page 26 For Inquiries, Please Contact: Midland Power Inc. 376 Magnetic Drive, Toronto, ON Canada M3J 2C4 1-877-528-3772 support@hyundaipower.ca www.hyundaipower.ca Imported / Distributed by Midland Power Inc., Canada Licensed by Hyundai Corporation Holdings, Korea...
