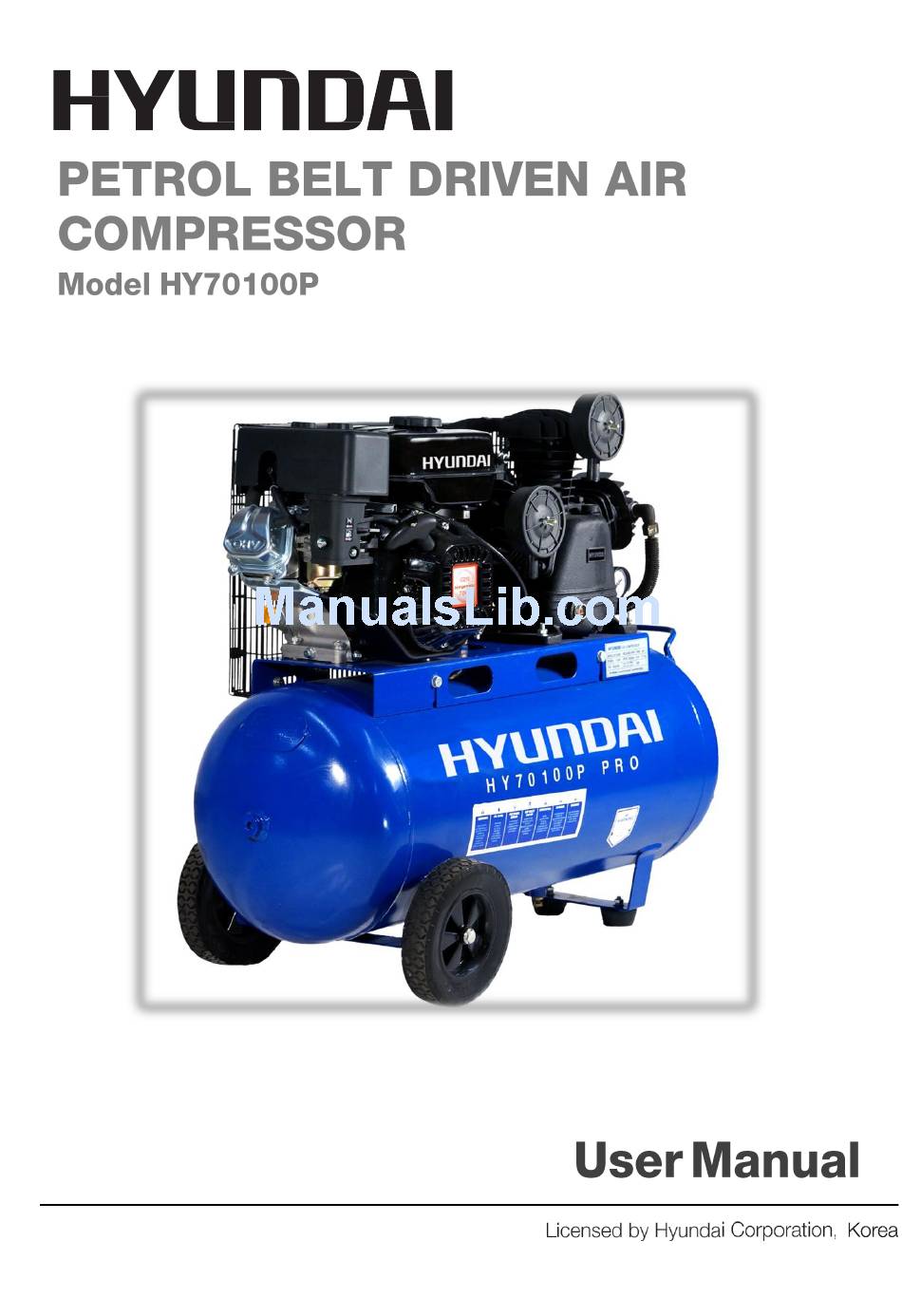

Hyundai HY70100P User Manual

Petrol belt driven
Hide thumbs Also See for HY70100P:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY70100P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HY70100P

Summary of Contents for Hyundai HY70100P

  • Page 2: Preface Oil Warning

    BEFORE STARTING MACHINE!  The engine is shipped from the factory without oil. Fill with SAE 15W-40 lubricating oil for petrol engines, check oil level before starting engine. If you start engine without oil, the engine will be damaged beyond repair and will not be covered by warranty. ...

  • Page 3: Table Of Contents

    CONTENTS o’s Page N Section Description PREFACE OIL WARNING 1. SAFETY 4 - 6 2. MACHINE SAFETY 7 - 8 3. MACHINE PARTS 9 – 10 4. PREPARATION 5. OPERATION 12 - 14 6. MAINTENANCE 14 - 17 7. SPECIFICATION 8.

  • Page 4: Safety

    1. SAFETY. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 5 1.3. Carbon Monoxide. 1.3.1. Carbon monoxide is a colourless and odourless gas, inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include the following; 1.3.2.1.

  • Page 6: Safety

    1.4. General fuel safety. 1.4.1. Fuel Safety additional information can be obtained from the Health and Safety Executive (HSE) document SR16. 1.4.2. All fuels are Flammable. 1.4.3. Keep away from all ignition sources i.e. Heaters, Lamps, sparks from Grinding or welding. 1.4.4.

  • Page 7: Machine Safety

    2. MACHINE SAFETY DO NOT direct the output jet of air towards people or animals. DO NOT touch the spark plug or plug lead whilst the engine Is running severe, potentially fatal, electric shock may result. Compressor must only be serviced bay an authorised agent. DO NOT tamper with, or attempt to adjust the pressure switch or safety valve.
  • Page 8 2.1.28. DO NOT refuel in a dosed or poorly ventilated environment as there is a danger of explosion or fire. Refuel outdoors. 2.1.29. DO NOT operate the compressor if there is a fuel leak. Move the unit to a safe area, where there is no risk of ignition until the leak has been rectified and the machine is dry.

  • Page 9: Machine Parts

    3. MACHINE PARTS 3.1. HY70100P. Mark Parts Mark Parts 1 Nut 18 Spring Washer 2 Cushion Foot 19 Nut 3 Flat Washer 20 Control Line 4 Spring Washer 21 Combination Valve 5 Screw 22 Elbow 6 Wheel 23 Engine 7 Blot...
  • Page 10 Mark Parts Mark Parts 19-2 Connecting Rod HP Oil Level Sight Gauge Plug-Oil Drain Piston Pin HP 20-2 21-2 Snap Spring HP Crankcase Plug-Oil Fill 22-2 Piston Bearing 23-2 Piston Ring HP 24-2 Cylinder HP Crank Shaft Bearing Spring Washer Oil Seal Screw Cover Gasket...

  • Page 11: Preparation

    4. PREPARATION 4.1. Remove compressor from packaging and inspect for any missing or damaged parts. If anything is found to be missing or damaged contact your supplier. 4.2. Save the packing material for future transportation of the compressor. It is recommended to store the packing in a safe location, at least for the period of the guarantee.

  • Page 12: Operation

    5. OPERATION Always check and, if necessary, top-up the engine oil and the pump oil before starting. Severe engine and/or pump damage may otherwise result. Ensure that you read, understand and apply all safety instructions in this manual. 5.1. Starting the machine. 5.1.1.
  • Page 13 threshold (approx. 2bar/29psi less than the maximum pressure), the relief valve will automatically close, and the tank pressure will increase back to its maximum. 5.2. Stopping the machine. 5.2.1. To stop the compressor tum the engine ignition switch (shown above) to OFF (0). See the engine manufacturer's handbook for the complete engine shutdown procedure.

  • Page 14: Maintenance

    5.4.1. At the end of each working day drain any moisture from the main tank. 5.4.2. Place a container under the drain plug and then carefully unscrew it anti-clockwise. 5.4.3. DO NOT allow moisture to accumulate in the tank as this will corrode the inside of the tank and affect the pressure rating of the tank.
  • Page 15 6.2.2.3. Check engine oil level and if necessary. 6.2.2.4. Check guards/covers are secure. 6.2.2.5. Check for oil leaks. 6.2.2.6. Check for unusual noises or vibrations. 6.2.2.7. Check for air leaks. 6.2.3. Operations to be carried out weekly, (or more frequently, if the compressor operates in a very dusty atmosphere): 6.2.3.1.
  • Page 16 6.2.4.2. A weight of 3kg applied at the bell mid-point should give a deflection of approximately 10mm (see image below). 6.2.4.3. If adjustment is required, maintain the alignment of the two pulleys (shown in image above).Adjust by repositioning the engine using the screw adjuster. 6.2.5.

  • Page 17: Specification

    Replace air filter ● Check all fittings ● Inspect pressure tank ● Change engine oil ● 7. SPECIFICATION Model HY70100P Engine type IC210 Maximum Pressure - PSi/Bar 145/10 Single cylinder, 4 stroke, Type Cut-out Pressure - PSi/Bar 128/8.8 forced air cooling, OHV...

  • Page 18: Environmental

    Compressor does not Contact your dealer. Pressure switch fault. stop at max pressure. Filter clogged. Compressor does not Replace filter element. reach max pressure. Contact your dealer. Head gasket or valve fault. Turn OFF and top up with oil Compressor noisy with Low oil level.

  • Page 19: Declarations Of Conformity

    11. DECLARATIONS OF CONFORMITY 11.1. Genpower Ltd confirms that these Hyundai products conform to the following CE Directives;  2006/42/EC Machinery Directive  2004/108/EC EMC Directive  2000/14/EC, Amended by 2005/88/EC Noise Emissions Directive  97/68/EC_2010/26/EC NRMM Emissions Directive...
  • Page 20 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
