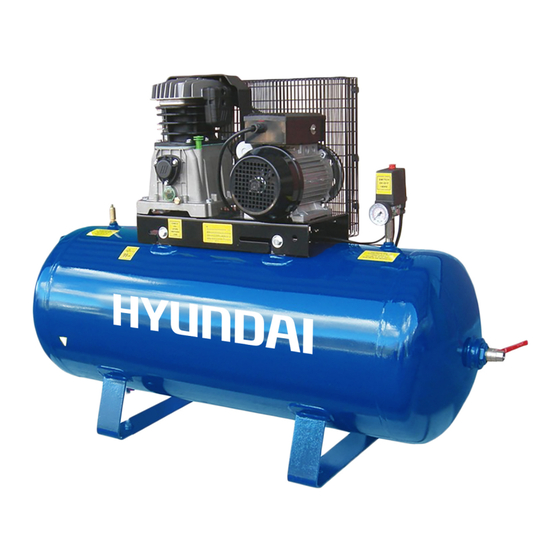

ELECTRIC AIR COMPRESSOR
Model HY3200S
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY3200S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HY3200S

Summary of Contents for Hyundai HY3200S

  • Page 1 ELECTRIC AIR COMPRESSOR Model HY3200S User Manual...
  • Page 2 Page 2 Original...

  • Page 3: Table Of Contents

    CONTENTS Page SECTION 1 – SAFETY 3 – 4 2 – MACHINE SPECIFIC SAFETY 4 – 8 3 – PART LOCATIONS - SPECIFICATIONS 4 – STORING, UNPACKING, SITING & OPERATION 9 – 11 5 – MAINTENANCE 12 – 13 6 – TROUBLESHOOTING 14 –...

  • Page 4: Safety

    1. SAFETY 1.1. General safety notes. 1.1.1. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned/sold to another user.

  • Page 5: Machine Specific Safety

    1.2. Vibrations (where applicable). 1.2.1. Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud's phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.
  • Page 6 2.2. Safety. 2.2.1. Never touch moving parts. 2.2.1.1. Never place your hands, fingers or other body parts near the compressor’s moving parts. 2.2.2. Never operate without all guards in place. 2.2.2.1. Never operate this compressor without all guards or safety features in place and in proper working order.
  • Page 7 2.2.12. Outdoor use extension cables. 2.2.12.1. When compressor in used outdoors, use only extension cables intended for use outdoors and so marked. 2.2.13. Stay alert. 2.2.13.1. Watch what you are doing. Use common sense. DO NOT operate compressor when you are tired. 2.2.13.2.
  • Page 8 2.2.27.3. Risk of bursting. Use only recommended air handling parts acceptable for pressures not less than 125 psi (8.6 bar). 2.2.28. Replacement parts. 2.2.28.1. When servicing use only genuine Hyundai replacement parts, all repairs should be conducted only by authorized service centre. 2.2.29. Earthing/Grounding instructions.

  • Page 9: Part Locations - Specifications

    8 – Condensate drain valve 9 – Pressure relief valve 10 – Oil level sight glass 11 – Oil cap – dipstick 12 – Air filter 3.2. Specifications. Model HY3200S Voltage/Amps– V/A 230/13 Tank material Rolled steel Frequency – Hz Tank capacity –...

  • Page 10: Storing, Unpacking, Siting & Operation

    4. STORING, UNPACKING, SITING & OPERATION 4.1. Storing the packed and unpacked compressor. 4.1.1. If the compressor is not used and left unpacked it will need to be stored in a dry place at a temperature between +5°C and + 45°C and sheltered from the weather.
  • Page 11 4.2.4. Check oil level referring to the MAX & MIN marks on the dipstick, or the oil level inspection window (2). 4.2.5. Position the compressor on a flat surface or with a maximum permissible inclination of 10° and in a dry and well aired place. DO NOT store in a location which has an explosion hazard.
  • Page 12 4.3.1.3. The compressor is fully automatic and is controlled by the pressure switch which stops it when tank pressure reaches maximum value and restarts it when it falls to minimum value. The pressure difference between maximum and minimum values is usually about 2 bar (29 psi). 4.3.1.4.

  • Page 13: Maintenance

    5. MAINTENANCE DO NOT carry out any maintenance unless you are suitable qualified to do so. If in any doubt please contact your dealer for advice and guidance. 5.1. Before attempting any maintenance jobs on the compressor, make sure of the following: 5.1.1.
  • Page 14 5.3.2. You MUST take care if there is compressed air inside the cylinder since the condensate water could flow out with considerable force. Recommended pressure: 1 – 2 bar max. 5.3.3. Condensate from compressors that are oil lubricated must not be drained into the sewer or dispersed in the environment as it contains oil.

  • Page 15: Troubleshooting

    6. TROUBLESHOOTING DO NOT carry out any troubleshooting unless you are suitable qualified to do so. If in any doubt please contact your dealer for advice and guidance. 6.1. Important notes. 6.1.1. DO NOT on any account unscrew any connection while the tank is pressurised –...
  • Page 16 6.1.13. If using the compressor for painting: 6.1.13.1. DO NOT work in closed environments or near to naked flames. 6.1.13.2. Make sure there is adequate exchange of air at the place of work. 6.1.13.3. Protect your nose and mouth with an appropriate mask. 6.1.14.

  • Page 17: Product Disposal

    6.5. Compressor does not stop. 6.5.1. If the compressor does not stop when maximum pressure is reached, the tank safety valve comes will operate. Turn off machine contact your nearest service centre and have the valve repaired. 7. PRODUCT DISPOSAL 7.1.

  • Page 18: Declarations Of Conformity

    8. DECLARATIONS of CONFORMITY 8.1. Air Compressors 8.1.1. Electric 8.1.1.1. 87/404/EEC – Simple Pressure Vessel Directive 8.1.1.2. 2002/95/EC – Restriction of Hazardous Substances Directive 8.1.1.3. 2004/108/EC – Electromagnetic Compatibility Directive 8.1.1.4. 2006/42/EC – Machinery Directive 8.1.1.5. 2006/95/EC – Low Voltage Directive 9.
  • Page 19 Page 19 Original...
